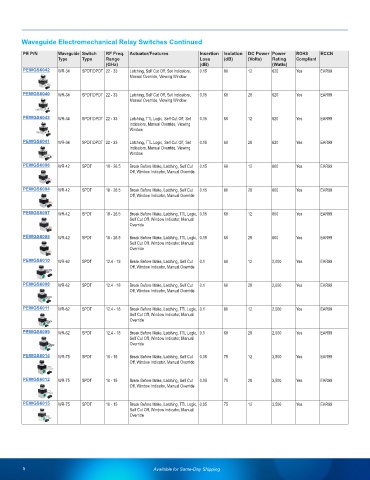

Page 6 - Waveguides Product Selection Guide

Waveguide Electromechanical Relay Switches Continued
PE P/N Waveguide Switch RF Freq. Actuator/Features Insertion Isolation DC Power Power ROHS ECCN
Type Type Range Loss (dB) (Volts) Rating Compliant
(GHz) (dB) (Watts)
PEWGS6042 WR-34 SPDT/DPDT 22 - 33 Latching, Self Cut Off, Set Indicators, 0.15 60 12 620 Yes EAR99
Manual Override, Viewing Window

PEWGS6040 WR-34 SPDT/DPDT 22 - 33 Latching, Self Cut Off, Set Indicators, 0.15 60 28 620 Yes EAR99
Manual Override, Viewing Window

PEWGS6043 WR-34 SPDT/DPDT 22 - 33 Latching, TTL Logic, Self Cut Off, Set 0.15 60 12 620 Yes EAR99
Indicators, Manual Override, Viewing
Window
PEWGS6041 WR-34 SPDT/DPDT 22 - 33 Latching, TTL Logic, Self Cut Off, Set 0.15 60 28 620 Yes EAR99
Indicators, Manual Override, Viewing
Window
PEWGS6006 WR-42 SPDT 18 - 26.5 Break Before Make, Latching, Self Cut 0.15 60 12 800 Yes EAR99
Off, Window Indicator, Manual Override

PEWGS6004 WR-42 SPDT 18 - 26.5 Break Before Make, Latching, Self Cut 0.15 60 28 800 Yes EAR99
Off, Window Indicator, Manual Override

PEWGS6007 WR-42 SPDT 18 - 26.5 Break Before Make, Latching, TTL Logic, 0.15 60 12 800 Yes EAR99
Self Cut Off, Window Indicator, Manual
Override
PEWGS6005 WR-42 SPDT 18 - 26.5 Break Before Make, Latching, TTL Logic, 0.15 60 28 800 Yes EAR99
Self Cut Off, Window Indicator, Manual
Override
PEWGS6010 WR-62 SPDT 12.4 - 18 Break Before Make, Latching, Self Cut 0.1 60 12 2,000 Yes EAR99
Off, Window Indicator, Manual Override

PEWGS6008 WR-62 SPDT 12.4 - 18 Break Before Make, Latching, Self Cut 0.1 60 28 2,000 Yes EAR99
Off, Window Indicator, Manual Override

PEWGS6011 WR-62 SPDT 12.4 - 18 Break Before Make, Latching, TTL Logic, 0.1 60 12 2,000 Yes EAR99
Self Cut Off, Window Indicator, Manual
Override

PEWGS6009 WR-62 SPDT 12.4 - 18 Break Before Make, Latching, TTL Logic, 0.1 60 28 2,000 Yes EAR99
Self Cut Off, Window Indicator, Manual
Override

PEWGS6014 WR-75 SPDT 10 - 15 Break Before Make, Latching, Self Cut 0.05 75 12 3,500 Yes EAR99
Off, Window Indicator, Manual Override

PEWGS6012 WR-75 SPDT 10 - 15 Break Before Make, Latching, Self Cut 0.05 75 28 3,500 Yes EAR99
Off, Window Indicator, Manual Override

PEWGS6015 WR-75 SPDT 10 - 15 Break Before Make, Latching, TTL Logic, 0.05 75 12 3,500 Yes EAR99
Self Cut Off, Window Indicator, Manual
Override

5 Available for Same-Day Shipping
