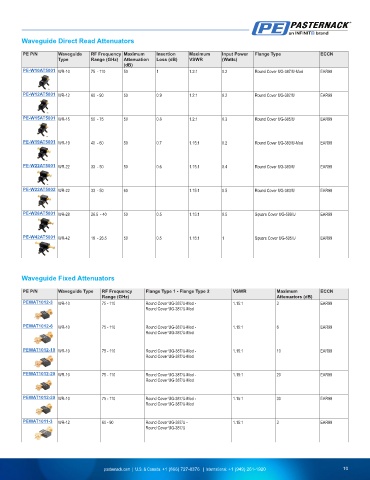

Page 11 - Waveguides Product Selection Guide

Waveguide Direct Read Attenuators
PE P/N Waveguide RF Frequency Maximum Insertion Maximum Input Power Flange Type ECCN
Type Range (GHz) Attenuation Loss (dB) VSWR (Watts)
(dB)
PE-W10AT5001 WR-10 75 - 110 50 1 1.2:1 0.2 Round Cover UG-387/U-Mod EAR99

PE-W12AT5001 WR-12 60 - 90 50 0.9 1.2:1 0.2 Round Cover UG-387/U EAR99

PE-W15AT5001 WR-15 50 - 75 50 0.8 1.2:1 0.3 Round Cover UG-385/U EAR99

PE-W19AT5001 WR-19 40 - 60 50 0.7 1.15:1 0.2 Round Cover UG-383/U-Mod EAR99

PE-W22AT5001 WR-22 33 - 50 50 0.6 1.15:1 0.4 Round Cover UG-383/U EAR99

PE-W22AT5002 WR-22 33 - 50 60 1.15:1 0.5 Round Cover UG-383/U EAR99

PE-W28AT5001 WR-28 26.5 - 40 50 0.5 1.15:1 0.5 Square Cover UG-599/U EAR99

PE-W42AT5001 WR-42 18 - 26.5 50 0.5 1.15:1 1 Square Cover UG-595/U EAR99

Waveguide Fixed Attenuators

PE P/N Waveguide Type RF Frequency Flange Type 1 - Flange Type 2 VSWR Maximum ECCN
Range (GHz) Attenuators (dB)
PEWAT1012-3 WR-10 75 - 110 Round Cover UG-387/U-Mod - 1.15:1 3 EAR99
Round Cover UG-387/U-Mod

PEWAT1012-6 WR-10 75 - 110 Round Cover UG-387/U-Mod - 1.15:1 6 EAR99
Round Cover UG-387/U-Mod

PEWAT1012-10 WR-10 75 - 110 Round Cover UG-387/U-Mod - 1.15:1 10 EAR99
Round Cover UG-387/U-Mod

PEWAT1012-20 WR-10 75 - 110 Round Cover UG-387/U-Mod - 1.15:1 20 EAR99
Round Cover UG-387/U-Mod

PEWAT1012-30 WR-10 75 - 110 Round Cover UG-387/U-Mod - 1.15:1 30 EAR99
Round Cover UG-387/U-Mod

PEWAT1011-3 WR-12 60 - 90 Round Cover UG-387/U - 1.15:1 3 EAR99
Round Cover UG-387/U
