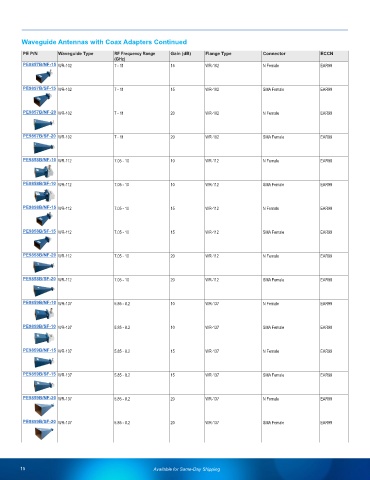

Waveguide Antennas with Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Range Gain (dB) Flange Type Connector ECCN
(GHz)
PE9857B/NF-15 WR-102 7 - 11 15 WR-102 N Female EAR99
PE9857B/SF-15 WR-102 7 - 11 15 WR-102 SMA Female EAR99
PE9857B/NF-20 WR-102 7 - 11 20 WR-102 N Female EAR99
PE9857B/SF-20 WR-102 7 - 11 20 WR-102 SMA Female EAR99
PE9858B/NF-10 WR-112 7.05 - 10 10 WR-112 N Female EAR99
PE9858B/SF-10 WR-112 7.05 - 10 10 WR-112 SMA Female EAR99
PE9858B/NF-15 WR-112 7.05 - 10 15 WR-112 N Female EAR99
PE9858B/SF-15 WR-112 7.05 - 10 15 WR-112 SMA Female EAR99
PE9858B/NF-20 WR-112 7.05 - 10 20 WR-112 N Female EAR99
PE9858B/SF-20 WR-112 7.05 - 10 20 WR-112 SMA Female EAR99
PE9859B/NF-10 WR-137 5.85 - 8.2 10 WR-137 N Female EAR99
PE9859B/SF-10 WR-137 5.85 - 8.2 10 WR-137 SMA Female EAR99
PE9859B/NF-15 WR-137 5.85 - 8.2 15 WR-137 N Female EAR99
PE9859B/SF-15 WR-137 5.85 - 8.2 15 WR-137 SMA Female EAR99
PE9859B/NF-20 WR-137 5.85 - 8.2 20 WR-137 N Female EAR99
PE9859B/SF-20 WR-137 5.85 - 8.2 20 WR-137 SMA Female EAR99
