Page 18 - Waveguides Product Selection Guide

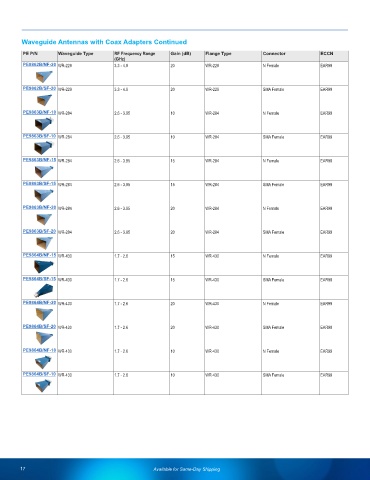

Waveguide Antennas with Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Range Gain (dB) Flange Type Connector ECCN
(GHz)
PE9862B/NF-20 WR-229 3.3 - 4.9 20 WR-229 N Female EAR99

PE9862B/SF-20 WR-229 3.3 - 4.9 20 WR-229 SMA Female EAR99

PE9863B/NF-10 WR-284 2.6 - 3.95 10 WR-284 N Female EAR99

PE9863B/SF-10 WR-284 2.6 - 3.95 10 WR-284 SMA Female EAR99

PE9863B/NF-15 WR-284 2.6 - 3.95 15 WR-284 N Female EAR99

PE9863B/SF-15 WR-284 2.6 - 3.95 15 WR-284 SMA Female EAR99

PE9863B/NF-20 WR-284 2.6 - 3.95 20 WR-284 N Female EAR99

PE9863B/SF-20 WR-284 2.6 - 3.95 20 WR-284 SMA Female EAR99

PE9864B/NF-15 WR-430 1.7 - 2.6 15 WR-430 N Female EAR99

PE9864B/SF-15 WR-430 1.7 - 2.6 15 WR-430 SMA Female EAR99

PE9864B/NF-20 WR-430 1.7 - 2.6 20 WR-430 N Female EAR99

PE9864B/SF-20 WR-430 1.7 - 2.6 20 WR-430 SMA Female EAR99

PE9864B/NF-10 WR-430 1.7 - 2.6 10 WR-430 N Female EAR99

PE9864B/SF-10 WR-430 1.7 - 2.6 10 WR-430 SMA Female EAR99

17 Available for Same-Day Shipping
