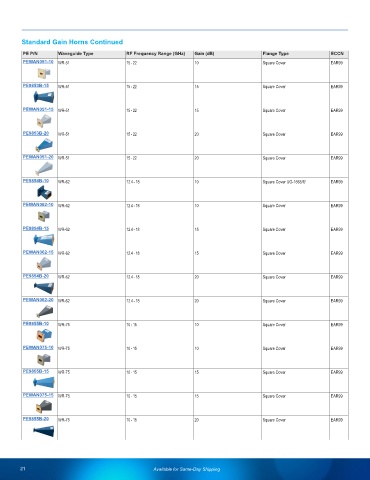

Page 22 - Waveguides Product Selection Guide

Standard Gain Horns Continued
PE P/N Waveguide Type RF Frequency Range (GHz) Gain (dB) Flange Type ECCN
PEWAN051-10 WR-51 15 - 22 10 Square Cover EAR99

PE9853B-15 WR-51 15 - 22 15 Square Cover EAR99

PEWAN051-15 WR-51 15 - 22 15 Square Cover EAR99

PE9853B-20 WR-51 15 - 22 20 Square Cover EAR99

PEWAN051-20 WR-51 15 - 22 20 Square Cover EAR99

PE9854B-10 WR-62 12.4 - 18 10 Square Cover UG-1665/U EAR99

PEWAN062-10 WR-62 12.4 - 18 10 Square Cover EAR99

PE9854B-15 WR-62 12.4 - 18 15 Square Cover EAR99

PEWAN062-15 WR-62 12.4 - 18 15 Square Cover EAR99

PE9854B-20 WR-62 12.4 - 18 20 Square Cover EAR99

PEWAN062-20 WR-62 12.4 - 18 20 Square Cover EAR99

PE9855B-10 WR-75 10 - 15 10 Square Cover EAR99

PEWAN075-10 WR-75 10 - 15 10 Square Cover EAR99

PE9855B-15 WR-75 10 - 15 15 Square Cover EAR99

PEWAN075-15 WR-75 10 - 15 15 Square Cover EAR99

PE9855B-20 WR-75 10 - 15 20 Square Cover EAR99

21 Available for Same-Day Shipping
