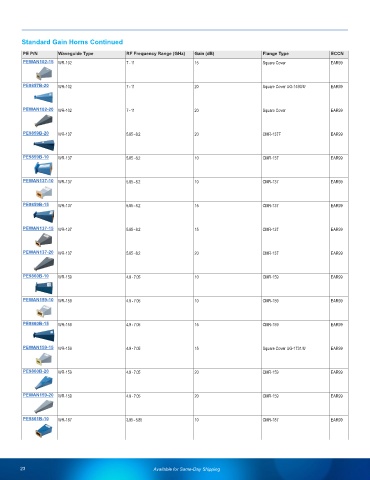

Page 24 - Waveguides Product Selection Guide
P. 24
Standard Gain Horns Continued
PE P/N Waveguide Type RF Frequency Range (GHz) Gain (dB) Flange Type ECCN
PEWAN102-15 WR-102 7 - 11 15 Square Cover EAR99
PE9857B-20 WR-102 7 - 11 20 Square Cover UG-1493/U EAR99
PEWAN102-20 WR-102 7 - 11 20 Square Cover EAR99
PE9859B-20 WR-137 5.85 - 8.2 20 CMR-137F EAR99
PE9859B-10 WR-137 5.85 - 8.2 10 CMR-137 EAR99
PEWAN137-10 WR-137 5.85 - 8.2 10 CMR-137 EAR99
PE9859B-15 WR-137 5.85 - 8.2 15 CMR-137 EAR99
PEWAN137-15 WR-137 5.85 - 8.2 15 CMR-137 EAR99
PEWAN137-20 WR-137 5.85 - 8.2 20 CMR-137 EAR99
PE9860B-10 WR-159 4.9 - 7.05 10 CMR-159 EAR99
PEWAN159-10 WR-159 4.9 - 7.05 10 CMR-159 EAR99
PE9860B-15 WR-159 4.9 - 7.05 15 CMR-159 EAR99
PEWAN159-15 WR-159 4.9 - 7.05 15 Square Cover UG-1731/U EAR99
PE9860B-20 WR-159 4.9 - 7.05 20 CMR-159 EAR99
PEWAN159-20 WR-159 4.9 - 7.05 20 CMR-159 EAR99
PE9861B-10 WR-187 3.95 - 5.85 10 CMR-187 EAR99
23 Available for Same-Day Shipping
