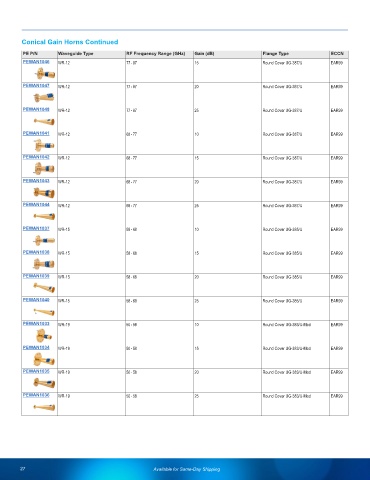

Page 28 - Waveguides Product Selection Guide
P. 28
Conical Gain Horns Continued
PE P/N Waveguide Type RF Frequency Range (GHz) Gain (dB) Flange Type ECCN
PEWAN1046 WR-12 77 - 87 15 Round Cover UG-387/U EAR99
PEWAN1047 WR-12 77 - 87 20 Round Cover UG-387/U EAR99
PEWAN1048 WR-12 77 - 87 25 Round Cover UG-387/U EAR99
PEWAN1041 WR-12 68 - 77 10 Round Cover UG-387/U EAR99
PEWAN1042 WR-12 68 - 77 15 Round Cover UG-387/U EAR99
PEWAN1043 WR-12 68 - 77 20 Round Cover UG-387/U EAR99
PEWAN1044 WR-12 68 - 77 25 Round Cover UG-387/U EAR99
PEWAN1037 WR-15 58 - 68 10 Round Cover UG-385/U EAR99
PEWAN1038 WR-15 58 - 68 15 Round Cover UG-385/U EAR99
PEWAN1039 WR-15 58 - 68 20 Round Cover UG-385/U EAR99
PEWAN1040 WR-15 58 - 68 25 Round Cover UG-385/U EAR99
PEWAN1033 WR-19 50 - 58 10 Round Cover UG-383/U-Mod EAR99
PEWAN1034 WR-19 50 - 58 15 Round Cover UG-383/U-Mod EAR99
PEWAN1035 WR-19 50 - 58 20 Round Cover UG-383/U-Mod EAR99
PEWAN1036 WR-19 50 - 58 25 Round Cover UG-383/U-Mod EAR99
