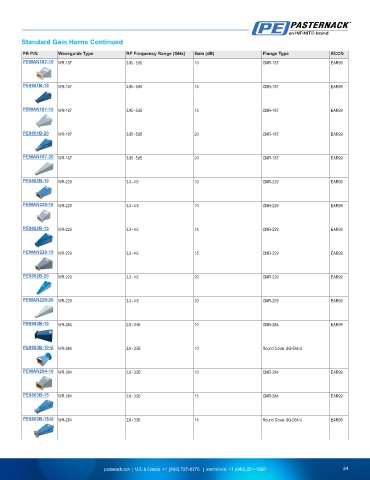

Standard Gain Horns Continued
PE P/N Waveguide Type RF Frequency Range (GHz) Gain (dB) Flange Type ECCN
PEWAN187-10 WR-187 3.95 - 5.85 10 CMR-187 EAR99

PE9861B-15 WR-187 3.95 - 5.85 15 CMR-187 EAR99

PEWAN187-15 WR-187 3.95 - 5.85 15 CMR-187 EAR99

PE9861B-20 WR-187 3.95 - 5.85 20 CMR-187 EAR99

PEWAN187-20 WR-187 3.95 - 5.85 20 CMR-187 EAR99

PE9862B-10 WR-229 3.3 - 4.9 10 CMR-229 EAR99

PEWAN229-10 WR-229 3.3 - 4.9 10 CMR-229 EAR99

PE9862B-15 WR-229 3.3 - 4.9 15 CMR-229 EAR99

PEWAN229-15 WR-229 3.3 - 4.9 15 CMR-229 EAR99

PE9862B-20 WR-229 3.3 - 4.9 20 CMR-229 EAR99

PEWAN229-20 WR-229 3.3 - 4.9 20 CMR-229 EAR99

PE9863B-10 WR-284 2.6 - 3.95 10 CMR-284 EAR99

PE9863B-10-U WR-284 2.6 - 3.95 10 Round Cover UG-584/U

PEWAN284-10 WR-284 2.6 - 3.95 10 CMR-284 EAR99

PE9863B-15 WR-284 2.6 - 3.95 15 CMR-284 EAR99

PE9863B-15-U WR-284 2.6 - 3.95 15 Round Cover UG-584/U EAR99
