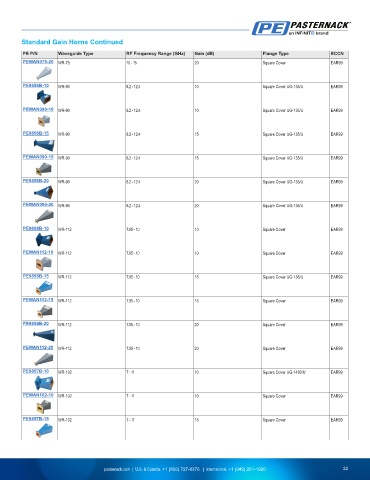

Standard Gain Horns Continued
PE P/N Waveguide Type RF Frequency Range (GHz) Gain (dB) Flange Type ECCN
PEWAN075-20 WR-75 10 - 15 20 Square Cover EAR99
PE9856B-10 WR-90 8.2 - 12.4 10 Square Cover UG-135/U EAR99
PEWAN090-10 WR-90 8.2 - 12.4 10 Square Cover UG-135/U EAR99
PE9856B-15 WR-90 8.2 - 12.4 15 Square Cover UG-135/U EAR99
PEWAN090-15 WR-90 8.2 - 12.4 15 Square Cover UG-135/U EAR99
PE9856B-20 WR-90 8.2 - 12.4 20 Square Cover UG-135/U EAR99
PEWAN090-20 WR-90 8.2 - 12.4 20 Square Cover UG-135/U EAR99
PE9858B-10 WR-112 7.05 - 10 10 Square Cover EAR99
PEWAN112-10 WR-112 7.05 - 10 10 Square Cover EAR99
PE9858B-15 WR-112 7.05 - 10 15 Square Cover UG-138/U EAR99
PEWAN112-15 WR-112 7.05 - 10 15 Square Cover EAR99
PE9858B-20 WR-112 7.05 - 10 20 Square Cover EAR99
PEWAN112-20 WR-112 7.05 - 10 20 Square Cover EAR99
PE9857B-10 WR-102 7 - 11 10 Square Cover UG-1493/U EAR99
PEWAN102-10 WR-102 7 - 11 10 Square Cover EAR99
PE9857B-15 WR-102 7 - 11 15 Square Cover EAR99
