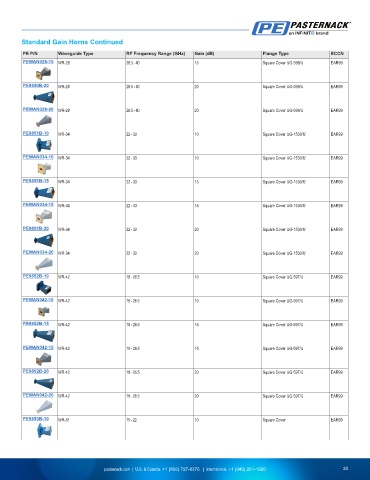

Standard Gain Horns Continued
PE P/N Waveguide Type RF Frequency Range (GHz) Gain (dB) Flange Type ECCN
PEWAN028-15 WR-28 26.5 - 40 15 Square Cover UG-599/U EAR99
PE9850B-20 WR-28 26.5 - 40 20 Square Cover UG-599/U EAR99
PEWAN028-20 WR-28 26.5 - 40 20 Square Cover UG-599/U EAR99
PE9851B-10 WR-34 22 - 33 10 Square Cover UG-1530/U EAR99
PEWAN034-10 WR-34 22 - 33 10 Square Cover UG-1530/U EAR99
PE9851B-15 WR-34 22 - 33 15 Square Cover UG-1530/U EAR99
PEWAN034-15 WR-34 22 - 33 15 Square Cover UG-1530/U EAR99
PE9851B-20 WR-34 22 - 33 20 Square Cover UG-1530/U EAR99
PEWAN034-20 WR-34 22 - 33 20 Square Cover UG-1530/U EAR99
PE9852B-10 WR-42 18 - 26.5 10 Square Cover UG-597/U EAR99
PEWAN042-10 WR-42 18 - 26.5 10 Square Cover UG-597/U EAR99
PE9852B-15 WR-42 18 - 26.5 15 Square Cover UG-597/U EAR99
PEWAN042-15 WR-42 18 - 26.5 15 Square Cover UG-597/U EAR99
PE9852B-20 WR-42 18 - 26.5 20 Square Cover UG-597/U EAR99
PEWAN042-20 WR-42 18 - 26.5 20 Square Cover UG-597/U EAR99
PE9853B-10 WR-51 15 - 22 10 Square Cover EAR99
