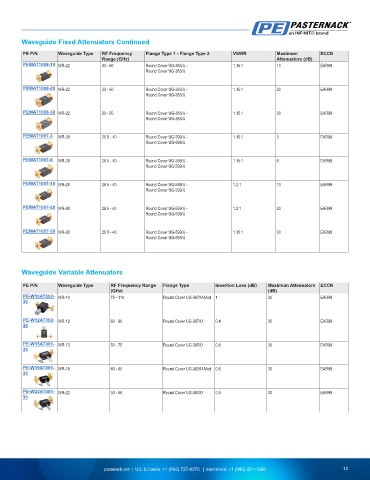

Page 13 - Waveguides Product Selection Guide

Waveguide Fixed Attenuators Continued

PE P/N Waveguide Type RF Frequency Flange Type 1 - Flange Type 2 VSWR Maximum ECCN
Range (GHz) Attenuators (dB)
PEWAT1008-10 WR-22 33 - 50 Round Cover UG-383/U - 1.15:1 10 EAR99
Round Cover UG-383/U

PEWAT1008-20 WR-22 33 - 50 Round Cover UG-383/U - 1.15:1 20 EAR99
Round Cover UG-383/U

PEWAT1008-30 WR-22 33 - 50 Round Cover UG-383/U - 1.15:1 30 EAR99
Round Cover UG-383/U

PEWAT1007-3 WR-28 26.5 - 40 Round Cover UG-599/U - 1.15:1 3 EAR99
Round Cover UG-599/U

PEWAT1007-6 WR-28 26.5 - 40 Round Cover UG-599/U - 1.15:1 6 EAR99
Round Cover UG-599/U

PEWAT1007-10 WR-28 26.5 - 40 Round Cover UG-599/U - 1.2:1 10 EAR99
Round Cover UG-599/U

PEWAT1007-20 WR-28 26.5 - 40 Round Cover UG-599/U - 1.2:1 20 EAR99
Round Cover UG-599/U

PEWAT1007-30 WR-28 26.5 - 40 Round Cover UG-599/U - 1.15:1 30 EAR99
Round Cover UG-599/U

Waveguide Variable Attenuators

PE P/N Waveguide Type RF Frequency Range Flange Type Insertion Loss (dB) Maximum Attenuators ECCN
(GHz) (dB)
PE-W10AT002- WR-10 75 - 110 Round Cover UG-387/U-Mod 1 30 EAR99
30

PE-W12AT002- WR-12 60 - 90 Round Cover UG-387/U 0.4 30 EAR99
30

PE-W15AT001- WR-15 50 - 75 Round Cover UG-385/U 0.8 30 EAR99
30

PE-W19AT001- WR-19 40 - 60 Round Cover UG-383/U-Mod 0.6 30 EAR99
30

PE-W22AT001- WR-22 33 - 50 Round Cover UG-383/U 0.5 30 EAR99
30

12
pasternack.com | U.S. & Canada: +1 (866) 727-8376 | International: +1 (949) 261-1920 12
