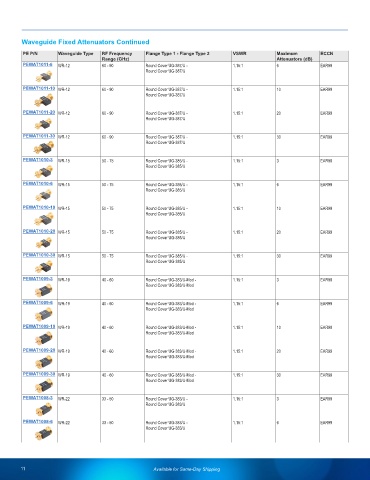

Page 12 - Waveguides Product Selection Guide

Waveguide Fixed Attenuators Continued

PE P/N Waveguide Type RF Frequency Flange Type 1 - Flange Type 2 VSWR Maximum ECCN
Range (GHz) Attenuators (dB)
PEWAT1011-6 WR-12 60 - 90 Round Cover UG-387/U - 1.15:1 6 EAR99
Round Cover UG-387/U

PEWAT1011-10 WR-12 60 - 90 Round Cover UG-387/U - 1.15:1 10 EAR99
Round Cover UG-387/U

PEWAT1011-20 WR-12 60 - 90 Round Cover UG-387/U - 1.15:1 20 EAR99
Round Cover UG-387/U

PEWAT1011-30 WR-12 60 - 90 Round Cover UG-387/U - 1.15:1 30 EAR99
Round Cover UG-387/U

PEWAT1010-3 WR-15 50 - 75 Round Cover UG-385/U - 1.15:1 3 EAR99
Round Cover UG-385/U

PEWAT1010-6 WR-15 50 - 75 Round Cover UG-385/U - 1.15:1 6 EAR99
Round Cover UG-385/U

PEWAT1010-10 WR-15 50 - 75 Round Cover UG-385/U - 1.15:1 10 EAR99
Round Cover UG-385/U

PEWAT1010-20 WR-15 50 - 75 Round Cover UG-385/U - 1.15:1 20 EAR99
Round Cover UG-385/U

PEWAT1010-30 WR-15 50 - 75 Round Cover UG-385/U - 1.15:1 30 EAR99
Round Cover UG-385/U

PEWAT1009-3 WR-19 40 - 60 Round Cover UG-383/U-Mod - 1.15:1 3 EAR99
Round Cover UG-383/U-Mod

PEWAT1009-6 WR-19 40 - 60 Round Cover UG-383/U-Mod - 1.15:1 6 EAR99
Round Cover UG-383/U-Mod

PEWAT1009-10 WR-19 40 - 60 Round Cover UG-383/U-Mod - 1.15:1 10 EAR99
Round Cover UG-383/U-Mod

PEWAT1009-20 WR-19 40 - 60 Round Cover UG-383/U-Mod - 1.15:1 20 EAR99
Round Cover UG-383/U-Mod

PEWAT1009-30 WR-19 40 - 60 Round Cover UG-383/U-Mod - 1.15:1 30 EAR99
Round Cover UG-383/U-Mod

PEWAT1008-3 WR-22 33 - 50 Round Cover UG-383/U - 1.15:1 3 EAR99
Round Cover UG-383/U

PEWAT1008-6 WR-22 33 - 50 Round Cover UG-383/U - 1.15:1 6 EAR99
Round Cover UG-383/U

11 Available for Same-Day Shipping
