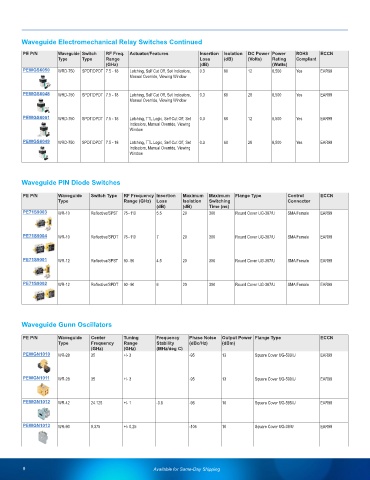

Page 10 - Waveguides Product Selection Guide

Waveguide Electromechanical Relay Switches Continued
PE P/N Waveguide Switch RF Freq. Actuator/Features Insertion Isolation DC Power Power ROHS ECCN
Type Type Range Loss (dB) (Volts) Rating Compliant
(GHz) (dB) (Watts)
PEWGS6050 WRD-750 SPDT/DPDT 7.5 - 18 Latching, Self Cut Off, Set Indicators, 0.3 60 12 8,500 Yes EAR99
Manual Override, Viewing Window

PEWGS6048 WRD-750 SPDT/DPDT 7.5 - 18 Latching, Self Cut Off, Set Indicators, 0.3 60 28 8,500 Yes EAR99
Manual Override, Viewing Window

PEWGS6051 WRD-750 SPDT/DPDT 7.5 - 18 Latching, TTL Logic, Self Cut Off, Set 0.3 60 12 8,500 Yes EAR99
Indicators, Manual Override, Viewing
Window
PEWGS6049 WRD-750 SPDT/DPDT 7.5 - 18 Latching, TTL Logic, Self Cut Off, Set 0.3 60 28 8,500 Yes EAR99
Indicators, Manual Override, Viewing
Window

Waveguide PIN Diode Switches

PE P/N Waveguide Switch Type RF Frequency Insertion Maximum Maximum Flange Type Control ECCN
Type Range (GHz) Loss Isolation Switching Connector
(dB) (dB) Time (ns)
PE71S9003 WR-10 Reflective/SPST 75 - 110 5.5 20 300 Round Cover UG-387/U SMA Female EAR99

PE71S9004 WR-10 Reflective/SPDT 75 - 110 7 20 300 Round Cover UG-387/U SMA Female EAR99

PE71S9001 WR-12 Reflective/SPST 60 - 90 4.5 20 300 Round Cover UG-387/U SMA Female EAR99

PE71S9002 WR-12 Reflective/SPDT 60 - 90 6 20 300 Round Cover UG-387/U SMA Female EAR99

Waveguide Gunn Oscillators

PE P/N Waveguide Center Tuning Frequency Phase Noise Output Power Flange Type ECCN
Type Frequency Range Stability (dBc/Hz) (dBm)
(GHz) (GHz) (MHz/deg C)
PEWGN1010 WR-28 35 +/- 3 -95 13 Square Cover UG-599/U EAR99

PEWGN1011 WR-28 35 +/- 3 -95 13 Square Cover UG-599/U EAR99

PEWGN1012 WR-42 24.125 +/- 1 -0.8 -98 10 Square Cover UG-595/U EAR99

PEWGN1013 WR-90 9.375 +/- 0.25 -105 10 Square Cover UG-39/U EAR99

9 Available for Same-Day Shipping
