Page 14 - Waveguides Product Selection Guide

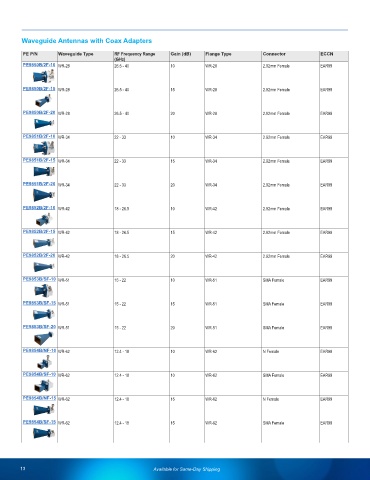

Waveguide Antennas with Coax Adapters

PE P/N Waveguide Type RF Frequency Range Gain (dB) Flange Type Connector ECCN
(GHz)
PE9850B/2F-10 WR-28 26.5 - 40 10 WR-28 2.92mm Female EAR99

PE9850B/2F-15 WR-28 26.5 - 40 15 WR-28 2.92mm Female EAR99

PE9850B/2F-20 WR-28 26.5 - 40 20 WR-28 2.92mm Female EAR99

PE9851B/2F-10 WR-34 22 - 33 10 WR-34 2.92mm Female EAR99

PE9851B/2F-15 WR-34 22 - 33 15 WR-34 2.92mm Female EAR99

PE9851B/2F-20 WR-34 22 - 33 20 WR-34 2.92mm Female EAR99

PE9852B/2F-10 WR-42 18 - 26.5 10 WR-42 2.92mm Female EAR99

PE9852B/2F-15 WR-42 18 - 26.5 15 WR-42 2.92mm Female EAR99

PE9852B/2F-20 WR-42 18 - 26.5 20 WR-42 2.92mm Female EAR99

PE9853B/SF-10 WR-51 15 - 22 10 WR-51 SMA Female EAR99

PE9853B/SF-15 WR-51 15 - 22 15 WR-51 SMA Female EAR99

PE9853B/SF-20 WR-51 15 - 22 20 WR-51 SMA Female EAR99

PE9854B/NF-10 WR-62 12.4 - 18 10 WR-62 N Female EAR99

PE9854B/SF-10 WR-62 12.4 - 18 10 WR-62 SMA Female EAR99

PE9854B/NF-15 WR-62 12.4 - 18 15 WR-62 N Female EAR99

PE9854B/SF-15 WR-62 12.4 - 18 15 WR-62 SMA Female EAR99

13 Available for Same-Day Shipping
