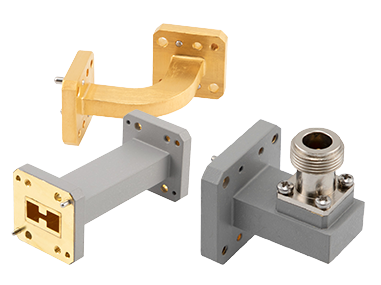

Double Ridge Waveguide Components

Wider operating frequency ranges than regular waveguide components (from 6.5GHz to 40GHz)
Waveguide sizes: WRD-180, WRD-650 and WRD-750
UG-style square cover flanges
Manufactured with precision machining to ensure excellent RF performances

All Available for Same-Day Shipping!

Double Ridge Waveguide Transmission Line Parts

Double Ridge Waveguide Components from Pasternack from Pasternack

Pasternack’s double ridge waveguide components consist of 28 models that include WRD-180, WRD-650 and WRD-750 sizes. Products include double ridge straight sections, bends and twist configurations and a series of double ridge waveguide-to-coax adapters. These transmission line components deliver superior RF performance, cover wider frequency bands and offer lower cut-off frequencies compared to conventional rectangular waveguide WRD-180(18-40GHz), WRD-650 (6.5 to 18 GHz), WRD-750 (7.5 to 18 GHz) sizes. Pasternack’s double ridge waveguide components are in-stock and available for same-day shipping.
