Double Ridge Waveguide-to-Coax Adapters
- Waveguide sizes: WRD-180, WRD-650 and WRD-750
- Constructed with precision machining in brass
- Coaxial designs: SMA, N-type and 2.92mm connectors
- UG-style square cover flanges
- Typical VSWR performance as low as 1.5:1
- Available in right-angle and end-launch configurations
All Available for Same-Day Shipping!
Part No.
& Additional
Views
Waveguide
Size
Connector
Configuration
Min Freq
(GHz)
Max Freq
(GHz)
Max Input
Power (W)
VSWR
(Max)
Body
Geometry
 |

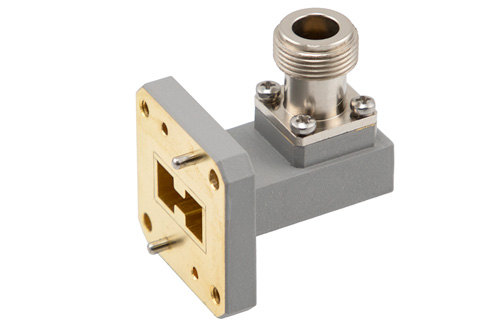

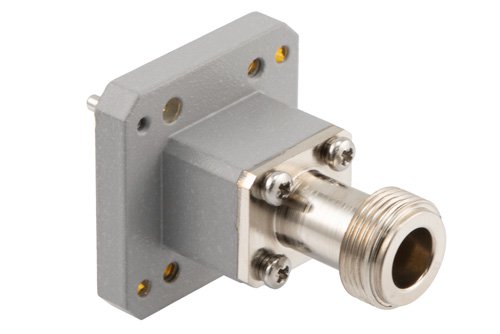

PEWCA1111 | WRD-650 |
N Female |
6.5 |
18 |
100 |
1.5:1 |
Right Angle |
||
|
|
||||||||||
 |
PEWCA1112 | WRD-650 |
SMA Female |
6.5 |
18 |
50 |
1.5:1 |
Right Angle |
||
|
|
||||||||||
 |
PEWCA1113 | WRD-750 |
N Female |
7.5 |
18 |
100 |
1.5:1 |
Right Angle |
||
|
|
||||||||||
 |
PEWCA1114 | WRD-750 |
SMA Female |
7.5 |
18 |
50 |
1.5:1 |
Right Angle |
||
|
|
||||||||||
 |
PEWCA1115 | WRD-180 |
2.92mm Female |
18 |
40 |
50 |
1.65:1 |
Right Angle |
||
|
|
||||||||||
 |
PEWCA1116 | WRD-650 |
N Female |
6.5 |
18 |
100 |
1.5:1 |
End Launch |
||
|
|
||||||||||
 |
PEWCA1117 | WRD-650 |
SMA Female |
6.5 |
18 |
50 |
1.5:1 |
End Launch |
||
|
|
||||||||||
 |
PEWCA1118 | WRD-750 |
N Female |
7.5 |
18 |
100 |
1.5:1 |
End Launch |
||
|
|
||||||||||
 |
PEWCA1119 | WRD-750 |
SMA Female |
7.5 |
18 |
50 |
1.5:1 |
End Launch |
||
|
|
||||||||||
 |
PEWCA1120 | WRD-180 |
2.92mm Female |
18 |
40 |
30 |
1.6:1 |
End Launch |
||
|
|
||||||||||
Double Ridge Waveguide-to-Coax Adapters from Pasternack
Pasternack’s double ridge waveguide to coax adapters are made up of 10 models available in WRD-180, WRD-650 and WRD-750 sizes. These double ridge waveguide to coax adapters are constructed with precision machining in brass, feature SMA, N-type and 2.92mm connector options, UG-style square cover flanges and offer typical VSWR performance as low as 1.5:1. Additionally, right-angle, and end-launch configurations are available.
Pasternack’s double ridge waveguide to coax adapters are in-stock and available for immediate shipment, with no minimum order required.
