  • Directional couplers with high operating frequency range up to 67 GHz for wide band applications
  • Coaxial designs with SMA, 2.92mm, 2.4mm and 1.85mm connectors
  • Power handling capability up to 30W(CW)
  • Excellent isolation and insertion loss performances with low return loss
  • Available with 6dB, 10dB, 15dB, 20dB and 30dB coupling levels
High Frequency RF Couplers

Product


Name

Frequency
Range
(GHz)

Max

Power

(W)

VSWR

(Max)

Directivity

(dB)

Min.

Connector

Series

Connector
Gender

Coupling
Level
(dB)

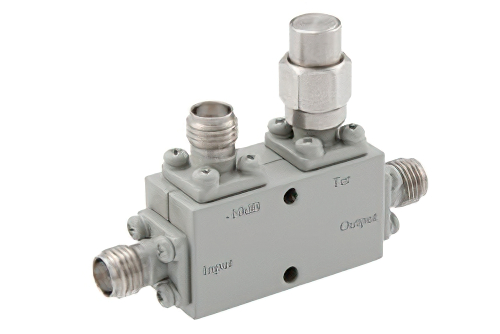

Directional 10 dB SMA Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts   PE2CP1120-10

6 - 26.5

30

1.5

12

SMA

Female

10

  • descrDirectional 10 dB SMA Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts
  • descrDirectional 10 dB SMA Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts
  • descrDirectional 10 dB SMA Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts

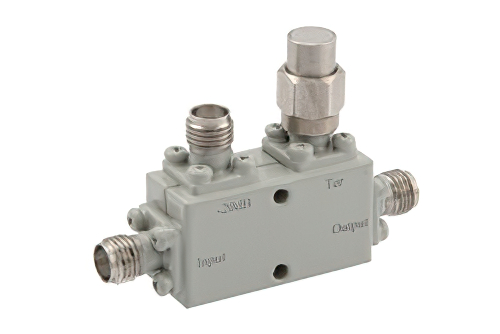

Directional 20 dB SMA Coupler From 6 GHz to 26.6 GHz Rated to 30 Watts   PE2CP1120-20

6 - 26.6

30

1.5

13

SMA

Female

20

  • descrDirectional 20 dB SMA Coupler From 6 GHz to 26.6 GHz Rated to 30 Watts
  • descrDirectional 20 dB SMA Coupler From 6 GHz to 26.6 GHz Rated to 30 Watts
  • descrDirectional 20 dB SMA Coupler From 6 GHz to 26.6 GHz Rated to 30 Watts

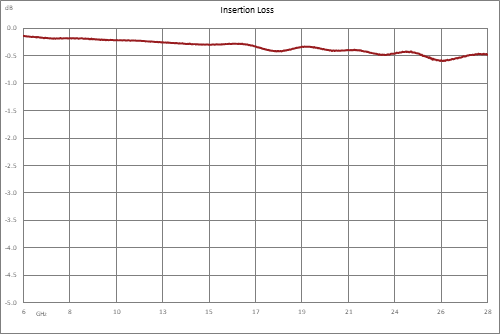

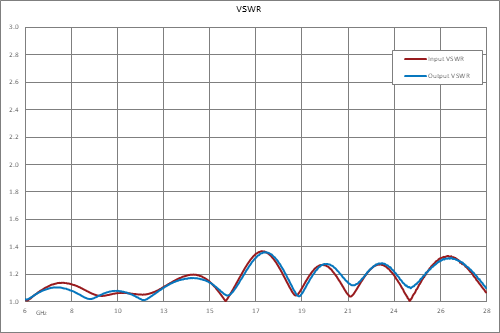

Directional 30 dB SMA Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts   PE2CP1120-30

6 - 26.5

30

1.5

13

SMA

Female

30

  • descrDirectional 30 dB SMA Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts
  • descrDirectional 30 dB SMA Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts
  • descrDirectional 30 dB SMA Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts

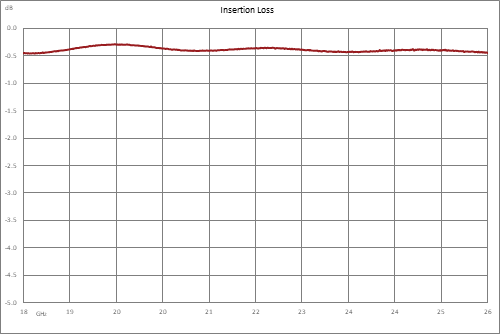

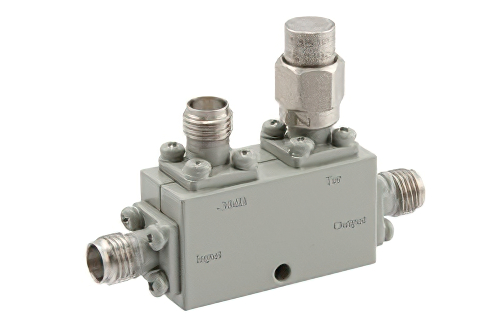

Directional 30 dB SMA Coupler From 18 GHz to 26 GHz Rated to 30 Watts   PE2CP1121-30

18 - 26

30

1.5

13

SMA

Female

30

  • descrDirectional 30 dB SMA Coupler From 18 GHz to 26 GHz Rated to 30 Watts
  • descrDirectional 30 dB SMA Coupler From 18 GHz to 26 GHz Rated to 30 Watts
  • descrDirectional 30 dB SMA Coupler From 18 GHz to 26 GHz Rated to 30 Watts

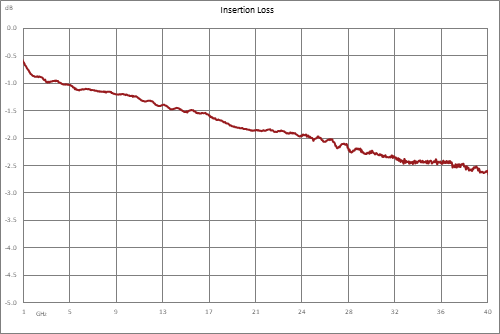

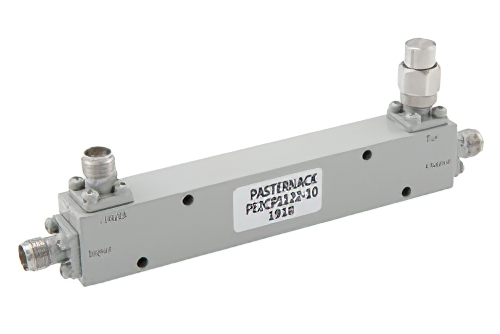

Directional 10 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 20 Watts   PE2CP1122-10

1 - 40

20

1.7

10

2.92mm

Female

10

  • descrDirectional 10 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 20 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 20 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 20 Watts

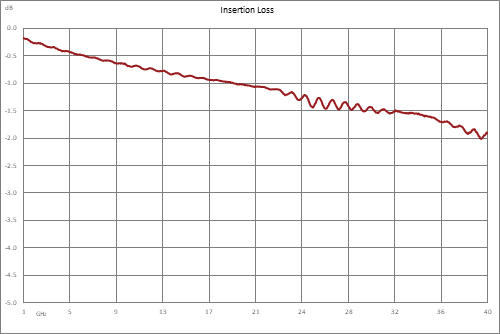

Directional 20 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 30 Watts   PE2CP1122-20

1 - 40

30

1.6

10

2.92mm

Female

20

  • descrDirectional 20 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 20 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 20 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 30 Watts



Directional 30 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 30 Watts   PE2CP1122-30

1 - 40

30

1.6

10

2.92mm

Female

30

  • descrDirectional 30 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 30 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 30 dB 2.92mm Coupler From 1 GHz to 40 GHz Rated to 30 Watts

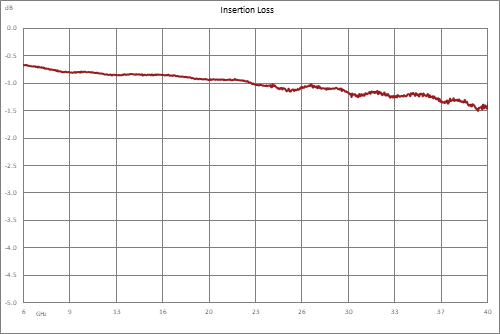

Directional 10 dB 2.92mm Coupler From 6 GHz to 40 GHz Rated to 30 Watts   PE2CP1124-10

6 - 40

30

1.6

10

2.92mm

Female

10

  • descrDirectional 10 dB 2.92mm Coupler From 6 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 6 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 6 GHz to 40 GHz Rated to 30 Watts

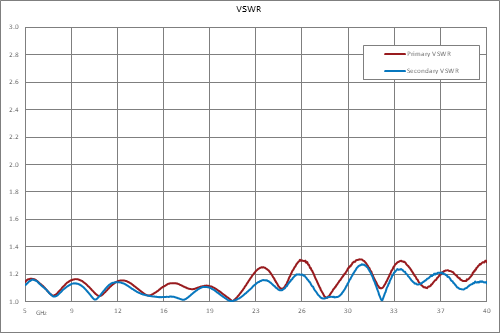

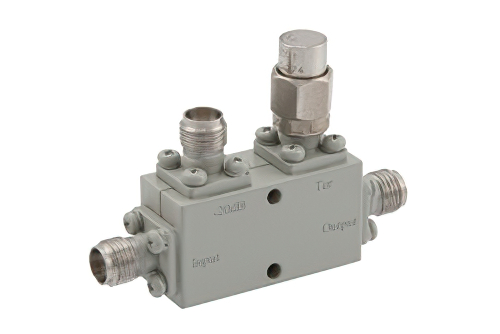

Directional 20 dB 2.92mm Coupler From 6 GHz to 40 GHz Rated to 30 Watts   PE2CP1124-20

6 - 40

30

1.6

10

2.92mm

Female

20

  • descrDirectional 20 dB 2.92mm Coupler From 6 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 20 dB 2.92mm Coupler From 6 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 20 dB 2.92mm Coupler From 6 GHz to 40 GHz Rated to 30 Watts

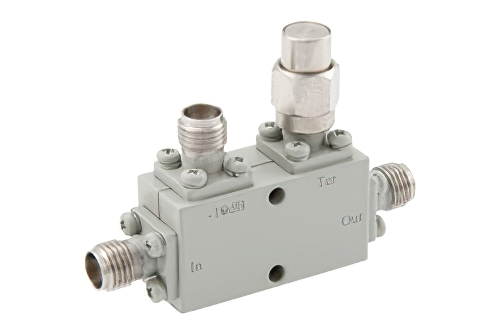

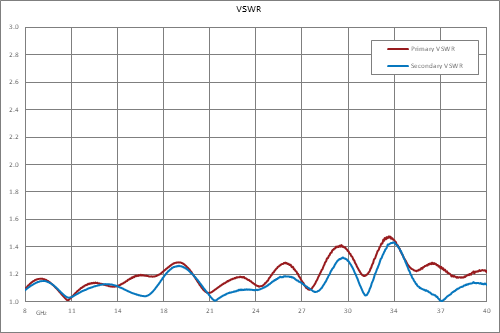

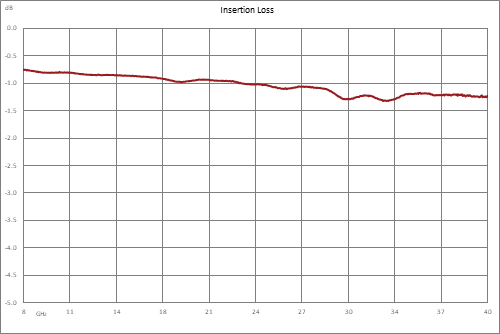

Directional 10 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts   PE2CP1125-10

8 - 40

30

1.6

10

2.92mm

Female

10

  • descrDirectional 10 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts

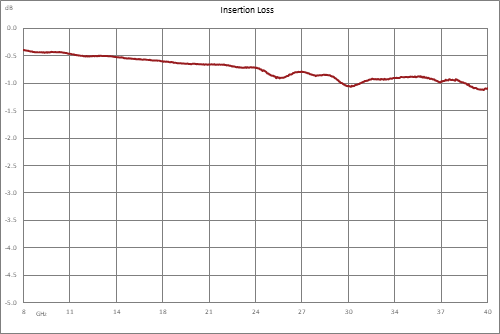

Directional 15 dB 2.92mm Coupler From 8 GHz to 43.5 GHz Rated to 30 Watts   PE2CP1125-15

8 - 43.5

30

1.6

10

2.92mm

Female

15

  • descrDirectional 15 dB 2.92mm Coupler From 8 GHz to 43.5 GHz Rated to 30 Watts
  • descrDirectional 15 dB 2.92mm Coupler From 8 GHz to 43.5 GHz Rated to 30 Watts
  • descrDirectional 15 dB 2.92mm Coupler From 8 GHz to 43.5 GHz Rated to 30 Watts

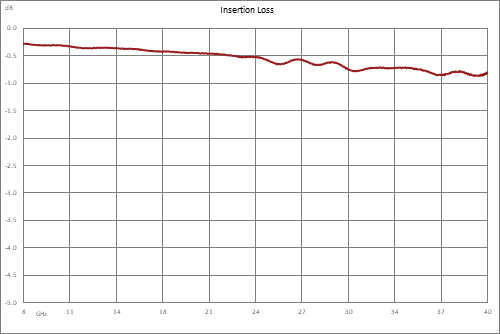

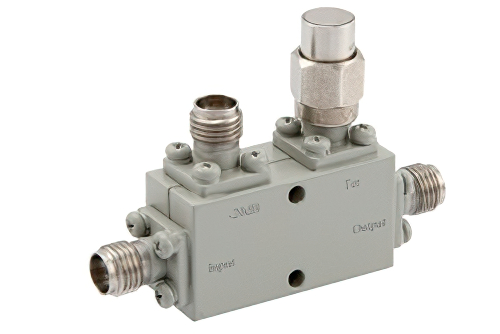

Directional 20 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts   PE2CP1125-20

8 - 40

30

1.6

10

2.92mm

Female

20

  • descrDirectional 20 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 20 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 20 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts

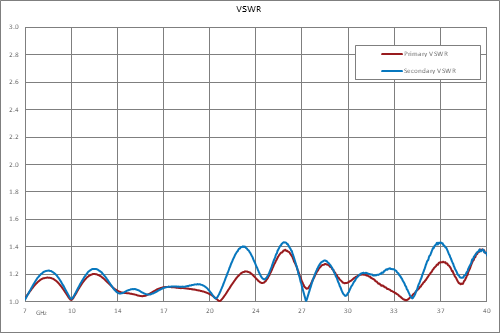

Directional 30 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts   PE2CP1125-30

8 - 40

30

1.6

10

2.92mm

Female

30

  • descrDirectional 30 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 30 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 30 dB 2.92mm Coupler From 8 GHz to 40 GHz Rated to 30 Watts

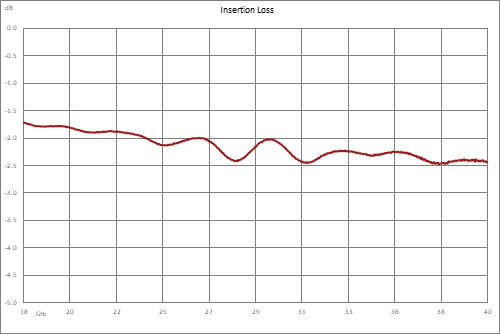

Directional 6 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts   PE2CP1126-6

18 - 40

30

1.6

10

2.92mm

Female

6

  • descrDirectional 6 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 6 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 6 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts

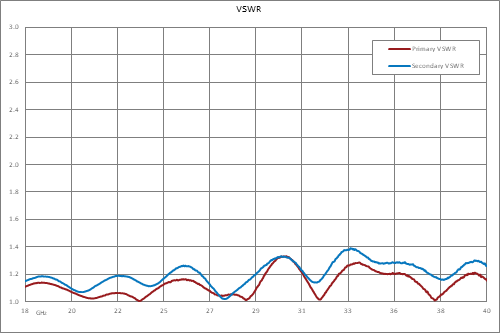

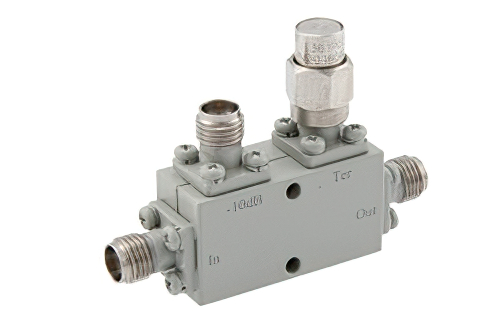

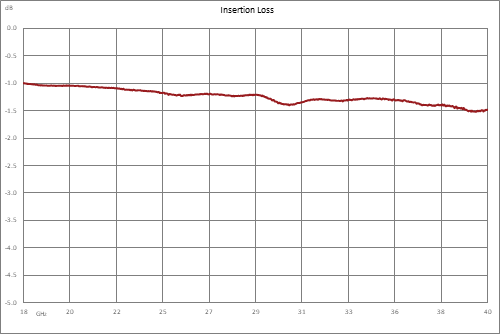

Directional 10 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts   PE2CP1126-10

18 - 40

30

1.6

12

2.92mm

Female

10

  • descrDirectional 10 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts

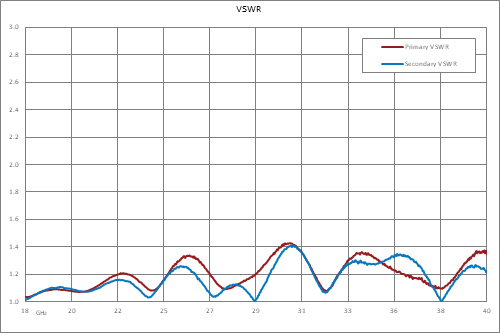

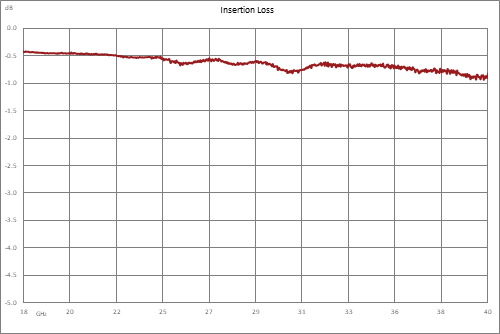

Directional 20 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts   PE2CP1126-20

18 - 40

30

1.6

12

2.92mm

Female

20

  • descrDirectional 20 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 20 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 20 dB 2.92mm Coupler From 18 GHz to 40 GHz Rated to 30 Watts

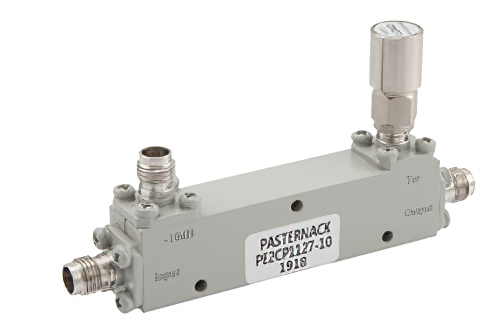

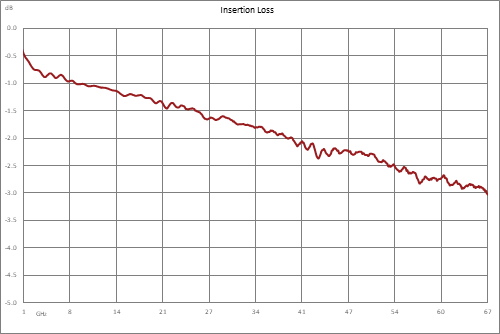

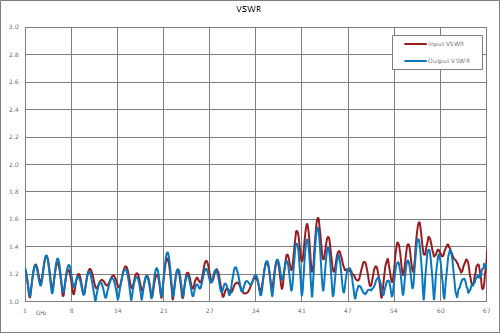

Directional 10 dB 1.85mm Coupler From 1 GHz to 67 GHz Rated to 20 Watts   PE2CP1127-10

1 - 67

20

1.6

8

1.85mm

Female

10

  • descrDirectional 10 dB 1.85mm Coupler From 1 GHz to 67 GHz Rated to 20 Watts
  • descrDirectional 10 dB 1.85mm Coupler From 1 GHz to 67 GHz Rated to 20 Watts
  • descrDirectional 10 dB 1.85mm Coupler From 1 GHz to 67 GHz Rated to 20 Watts

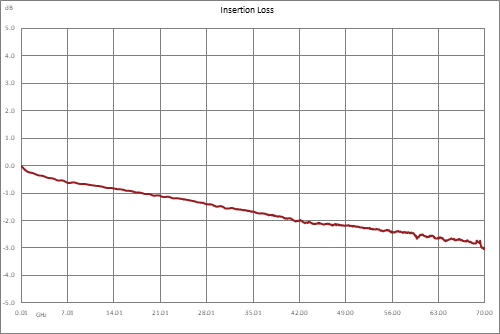

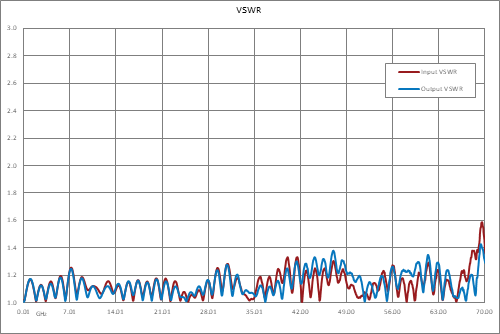

Directional 20 dB 1.85mm Coupler From 1 GHz to 67 GHz Rated to 20 Watts   PE2CP1127-20

1 - 67

20

1.6

8

1.85mm

Female

20

  • descrDirectional 20 dB 1.85mm Coupler From 1 GHz to 67 GHz Rated to 20 Watts
  • descrDirectional 20 dB 1.85mm Coupler From 1 GHz to 67 GHz Rated to 20 Watts
  • descrDirectional 20 dB 1.85mm Coupler From 1 GHz to 67 GHz Rated to 20 Watts

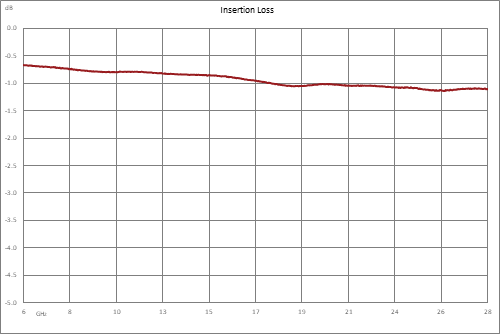

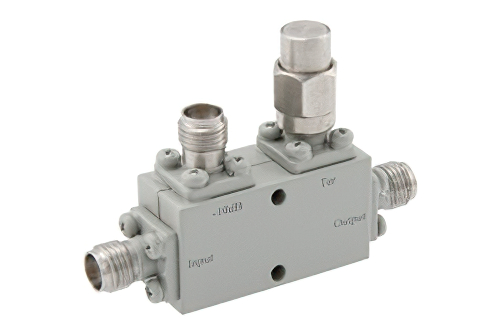

Directional 10 dB 2.92mm Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts   PE2CP1129-10

6 - 26.5

30

1.5

12

2.92mm

Female

10

  • descrDirectional 10 dB 2.92mm Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 6 GHz to 26.5 GHz Rated to 30 Watts

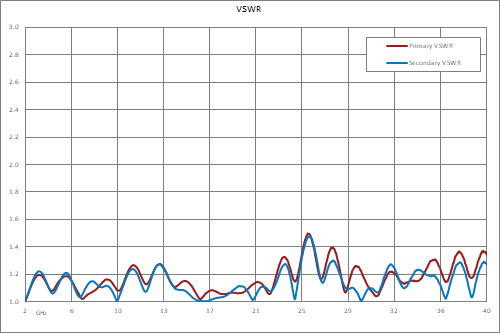

Directional 10 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts   PE2CP1133-10

2 - 40

30

1.6

10

2.92mm

Female

10

  • descrDirectional 10 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 10 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts

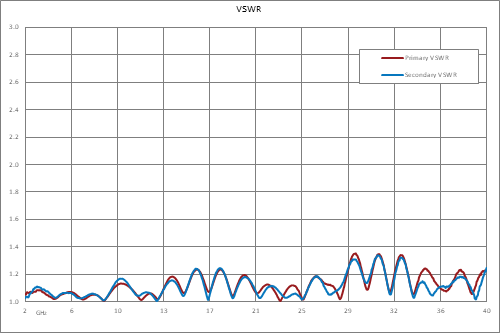

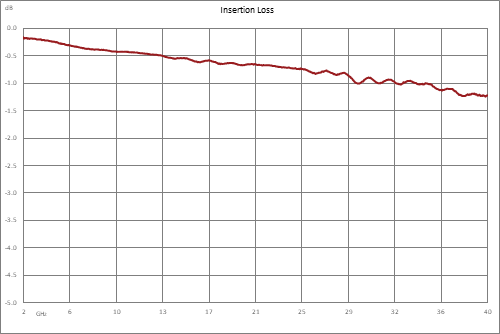

Directional 20 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts   PE2CP1133-20

2 - 40

30

1.6

10

2.92mm

Female

20

  • descrDirectional 20 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 20 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 20 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts

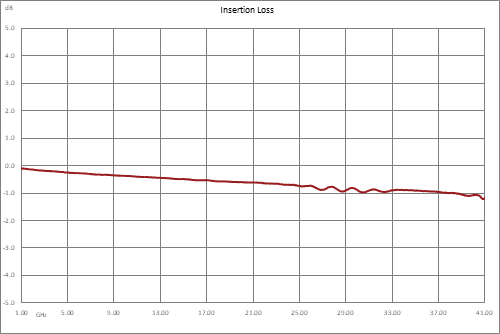

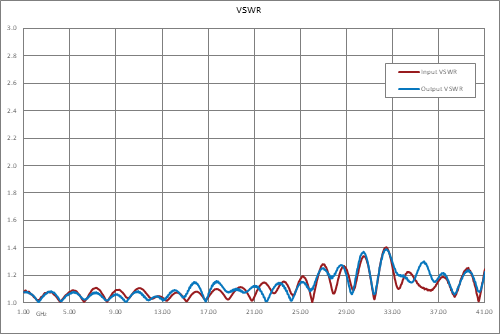

Directional 30 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts   PE2CP1133-30

2 - 40

30

1.5

10

2.92mm

Female

30

  • descrDirectional 30 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 30 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts
  • descrDirectional 30 dB 2.92mm Coupler From 2 GHz to 40 GHz Rated to 30 Watts

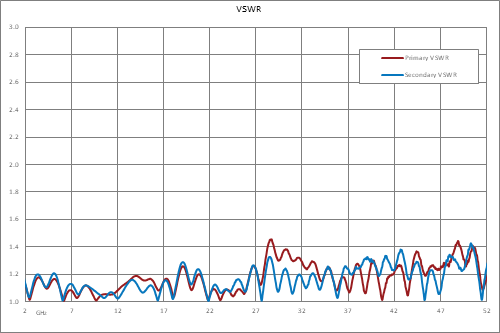

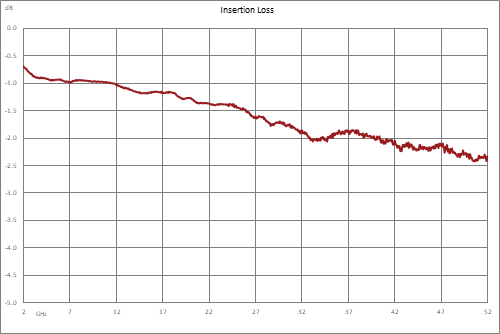

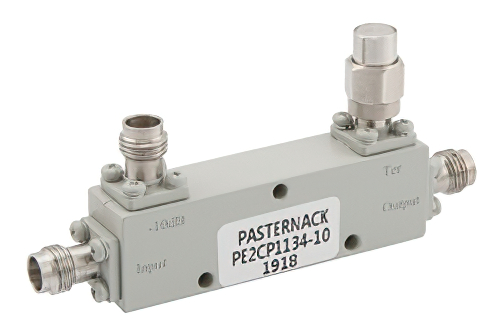

Directional 10 dB 2.4mm Coupler From 2 GHz to 52 GHz Rated to 20 Watts   PE2CP1134-10

2 - 52

20

1.8

10

2.4mm

Female

10

  • descrDirectional 10 dB 2.4mm Coupler From 2 GHz to 52 GHz Rated to 20 Watts
  • descrDirectional 10 dB 2.4mm Coupler From 2 GHz to 52 GHz Rated to 20 Watts
  • descrDirectional 10 dB 2.4mm Coupler From 2 GHz to 52 GHz Rated to 20 Watts

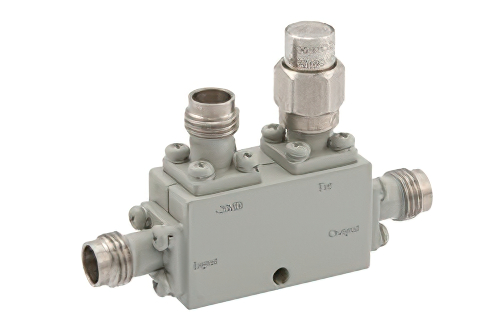

Directional 20 dB 2.4mm Coupler From 18 GHz to 50 GHz Rated to 20 Watts   PE2CP1135-20

18 - 50

20

2.0

8

2.4mm

Female

20

  • descrDirectional 20 dB 2.4mm Coupler From 18 GHz to 50 GHz Rated to 20 Watts
  • descrDirectional 20 dB 2.4mm Coupler From 18 GHz to 50 GHz Rated to 20 Watts
  • descrDirectional 20 dB 2.4mm Coupler From 18 GHz to 50 GHz Rated to 20 Watts



High Frequency RF Couplers from Pasternack

Pasternack’s line of high frequency RF directional couplers consists of 24 models that have a high maximum operating frequency range from 26.5 GHz to 67 GHz. These RF couplers deliver excellent isolation, low insertion loss and very good return loss.

These directional couplers have power handling capabilities up to 30W(CW) and feature a coaxial design available with SMA, 2.92mm, 2.4mm and 1.85mm connectors. These high frequency RF couplers are offered with 6dB, 10dB, 15dB, 20dB and 30dB coupling levels. Plus, they are available for the engineer’s immediate need for a small quantity of components while fulfilling the demand for high quality, high frequency products.

Pasternack’s high frequency directional RF couplers are in-stock and ready for immediate shipment.
