Part No.
/Additional Views
Design
Frequency
Band
(GHz)
Max.
Power
(W)
VSWR
(Max.)
Isolation
(dB)
Min.
Insertion
Loss (dB)
Max.
Input
Connector
Type/Gender
Output
Connector
Type/Gender
USA & Canada +1 (866) 727-8376 International +1 (949) 261-1920
USA & Canada (866) 727-8376 International +1 (949) 261-1920
▼ Click on a product below for more details
Part No.
/Additional Views
Design
Frequency
Band
(GHz)
Max.
Power
(W)
VSWR
(Max.)
Isolation
(dB)
Min.
Insertion
Loss (dB)
Max.
Input
Connector
Type/Gender
Output
Connector
Type/Gender
![]() |

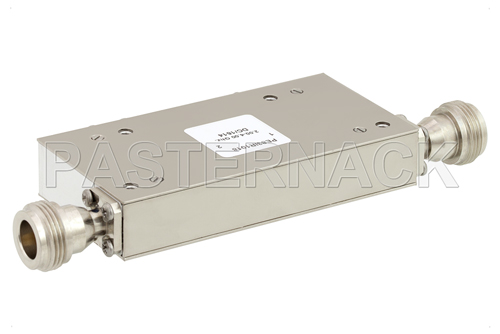

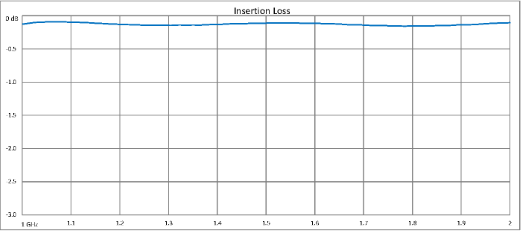

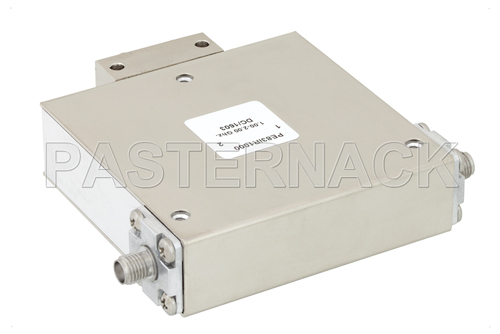

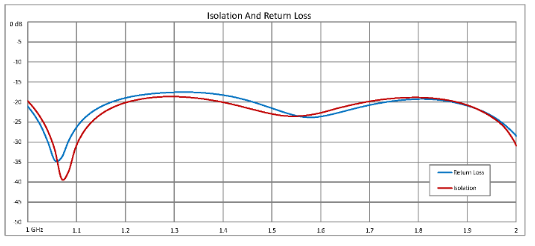

PE83IR1000 | Single |
1-2 |
50 |
1.35:1 |
18 |
0.6 |
SMA |
SMA |
|
![]() |

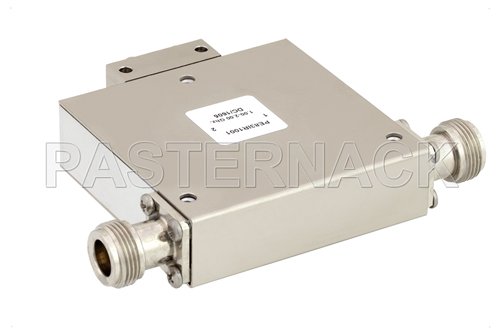

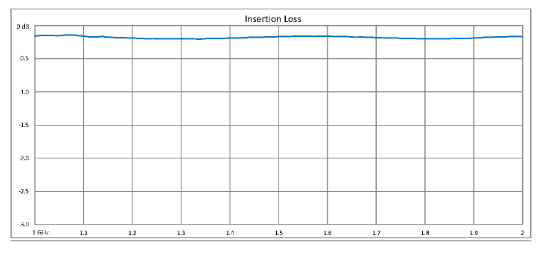

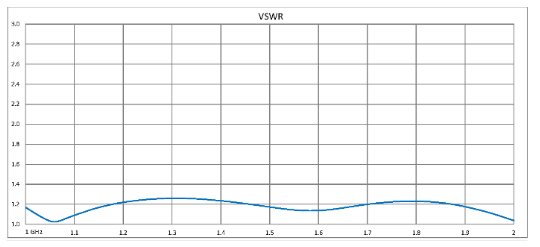

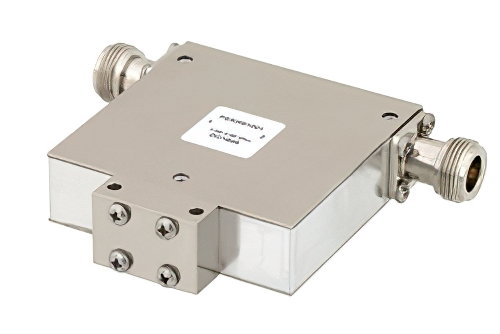

PE83IR1001 | Single |
1-2 |
50 |
1.35:1 |
18 |
0.6 |
N |
N |
|
![]() |

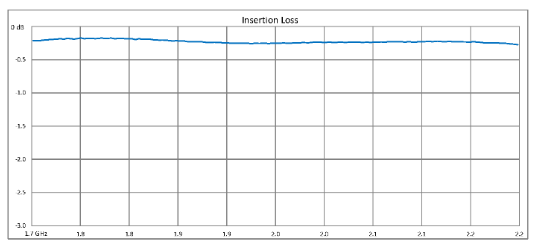

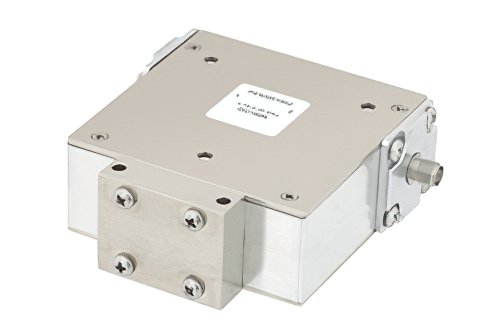

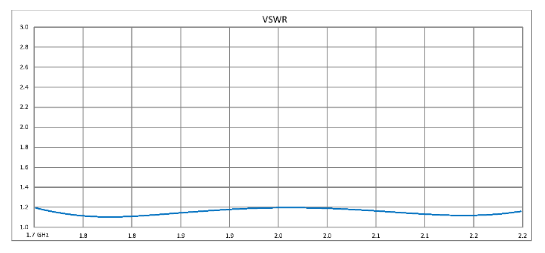

PE83IR1002 | Single |
1.7-2.2 |
50 |
1.25:1 |
20 |
0.4 |
SMA |
SMA |
|
![]() |

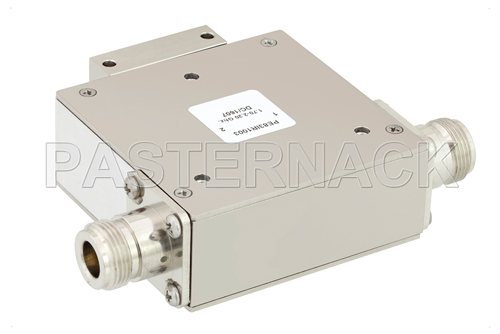

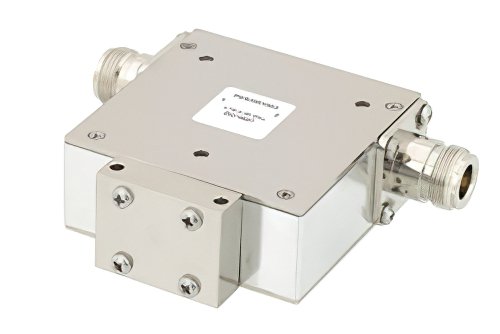

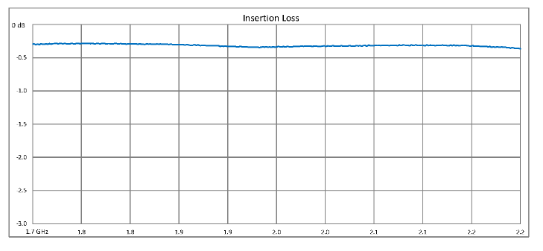

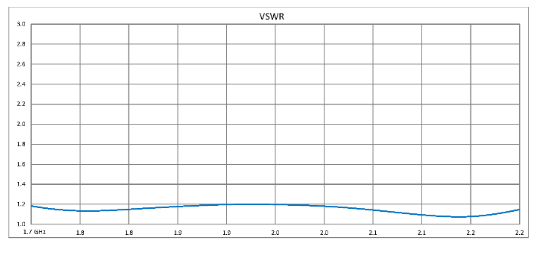

PE83IR1003 | Single |
1.7-2.2 |
50 |
1.25:1 |
20 |
0.4 |
N |
N |
|
![]() |

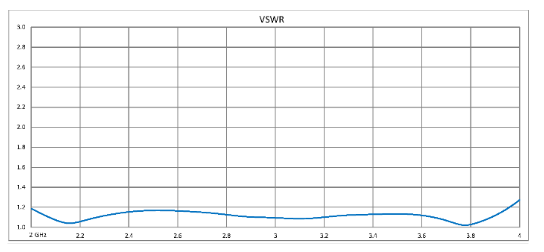

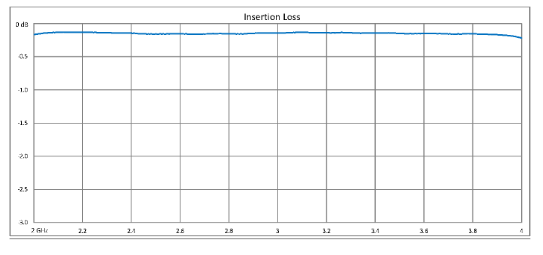

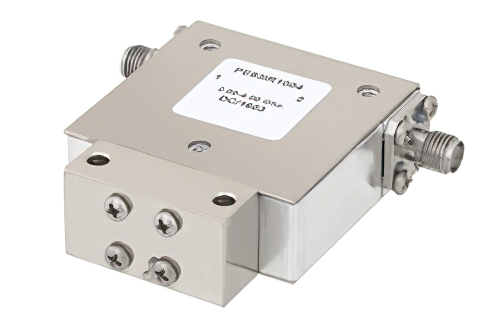

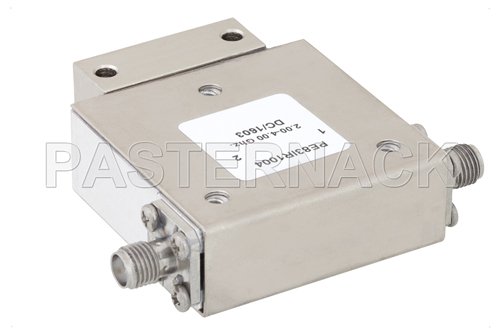

PE83IR1004 | Single |
2-4 |
50 |
1.3:1 |
20 |
0.6 |
SMA |
SMA |
|
![]() |

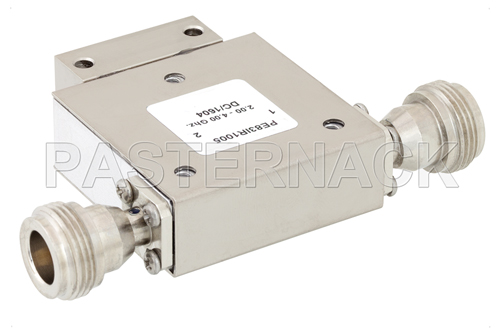

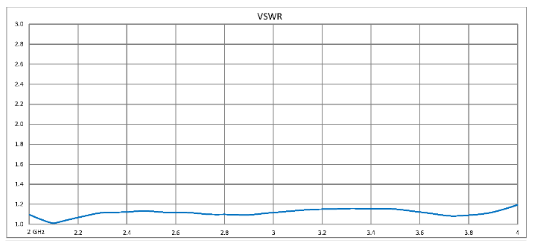

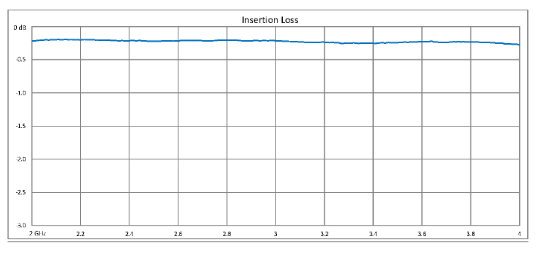

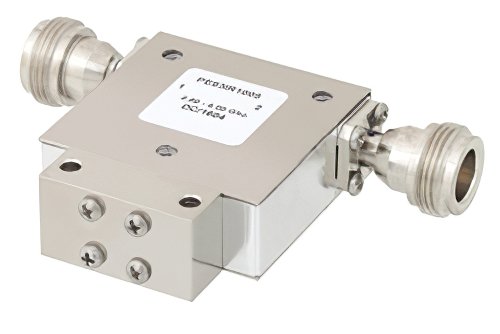

PE83IR1005 | Single |
2-4 |
50 |
1.3:1 |
20 |
0.6 |
N |
N |
|
![]() |

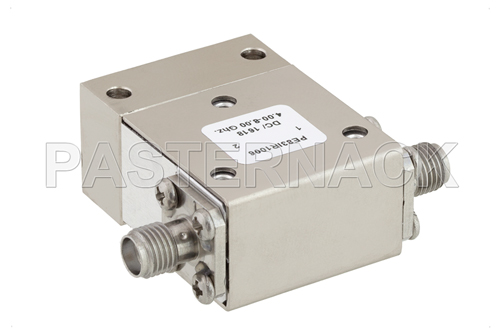

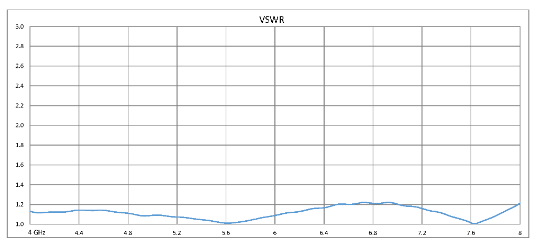

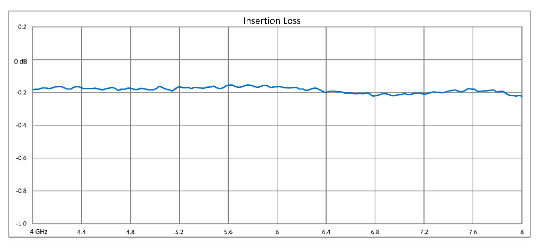

PE83IR1006 | Single |
4-8 |
50 |
1.3:1 |
18 |
0.6 |
SMA |
SMA |
|
![]() |

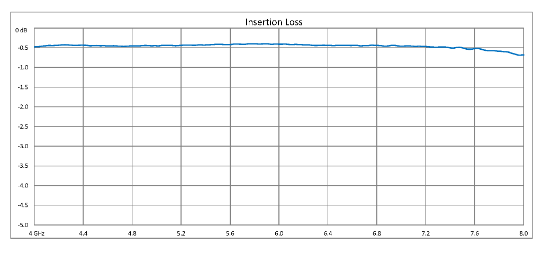

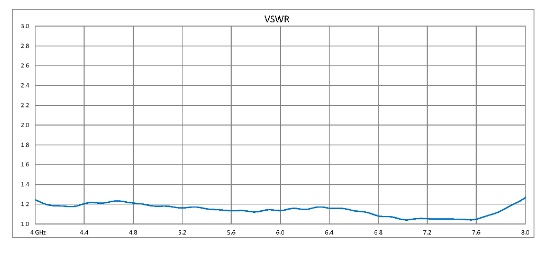

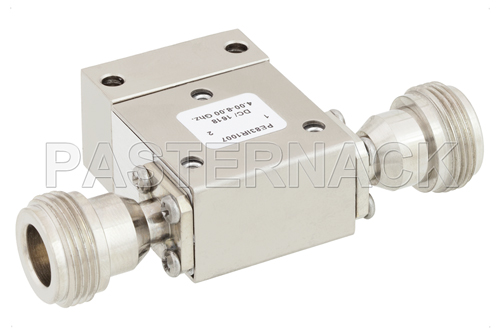

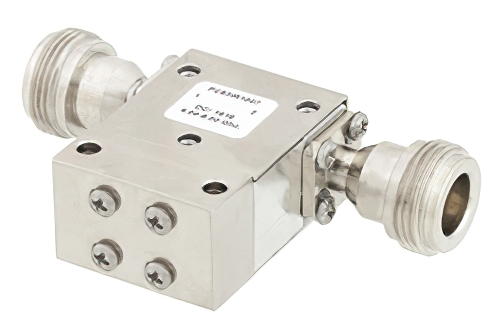

PE83IR1007 | Single |
4-8 |
50 |
1.3:1 |
18 |
0.6 |
N |
N |
|
![]() |

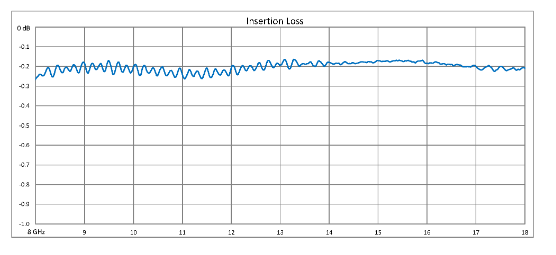

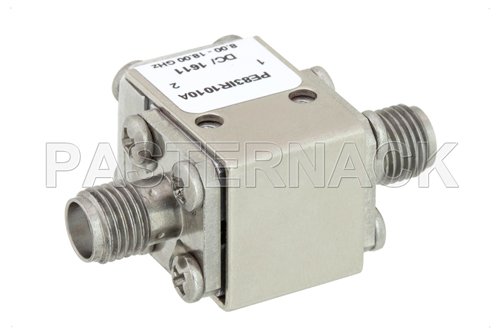

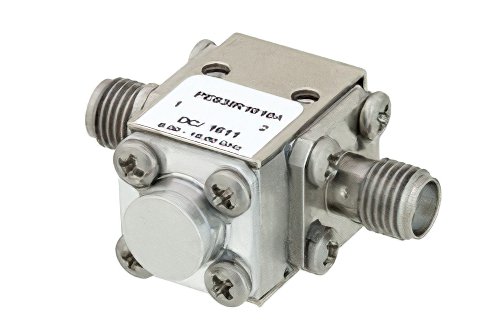

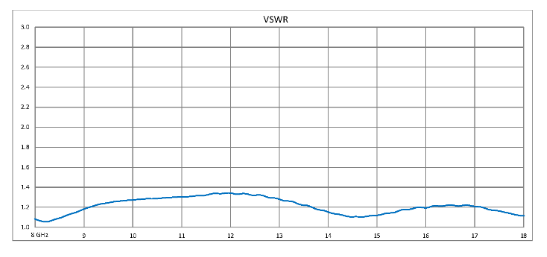

PE83IR1010A | Single |
11-18 |
50 |
1.25:1 |
20 |
0.6 |
SMA |
SMA |
|
![]() |

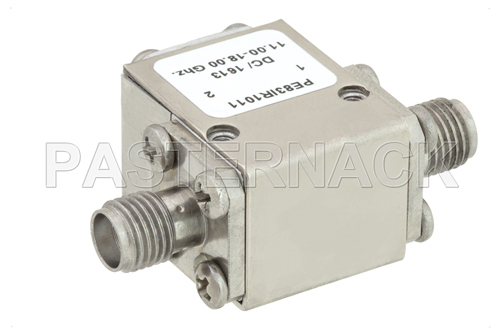

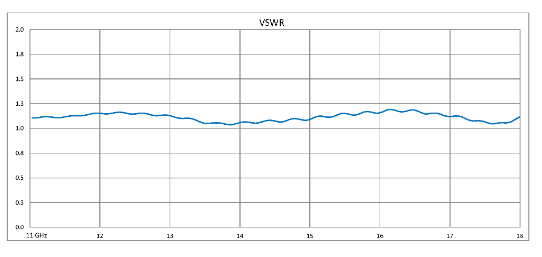

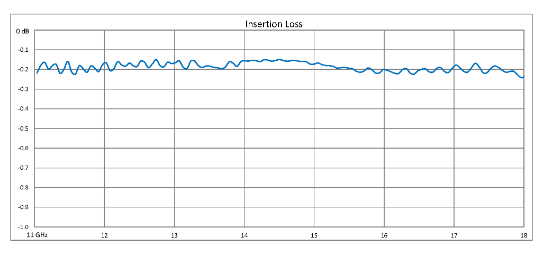

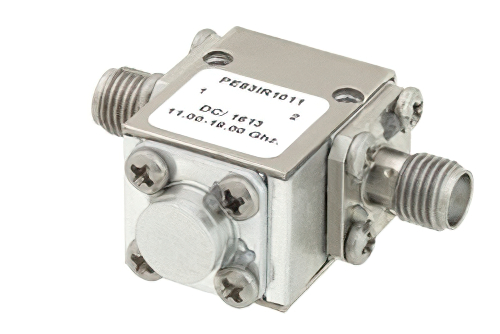

PE83IR1011 | Single |
18-26.5 |
50 |
1.4:1 |
17 |
0.6 |
SMA |
SMA |
|
![]() |

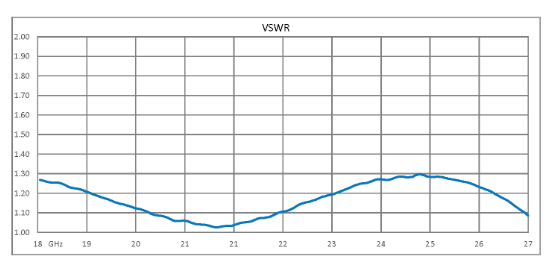

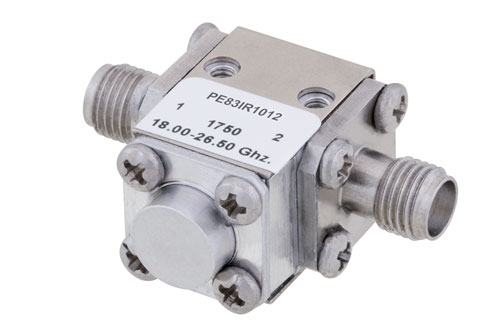

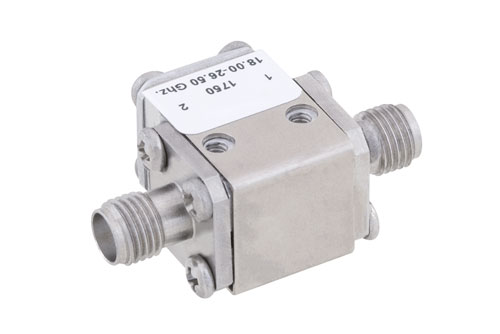

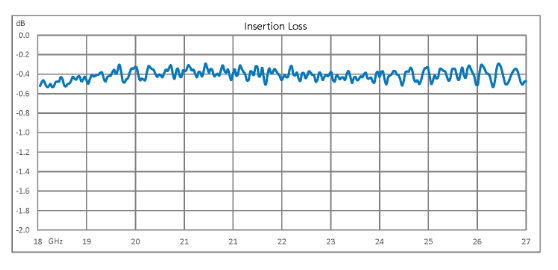

PE83IR1012 | Dual |
1-2 |
10 |
1.35:1 |
36 |
1.2 |
SMA |
SMA |
|
![]() |

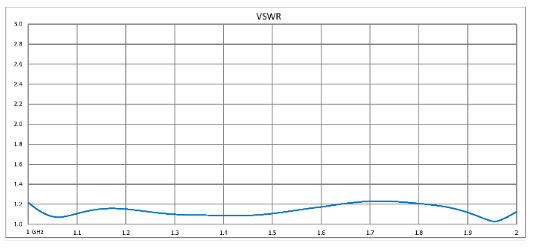

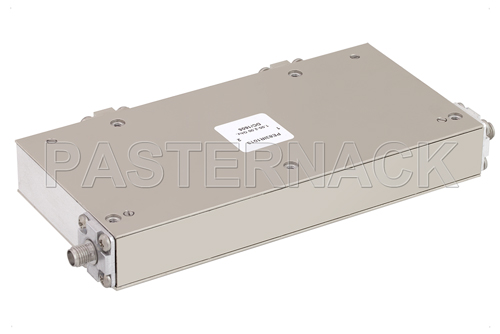

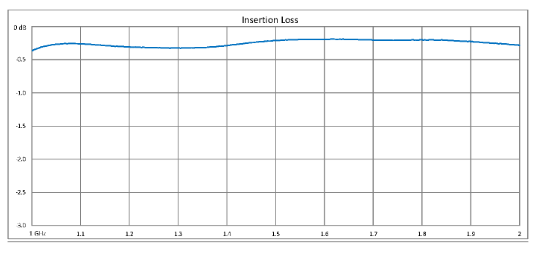

PE83IR1013 | Dual |
1-2 |
10 |
1.35:1 |
36 |
1.2 |
N |
SMA |
|
![]() |

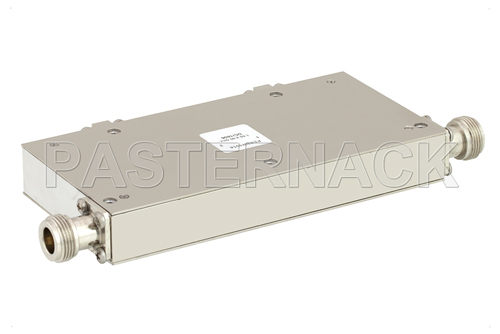

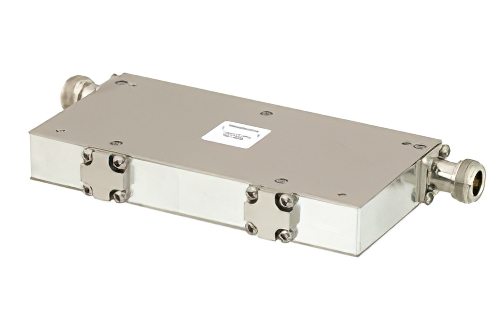

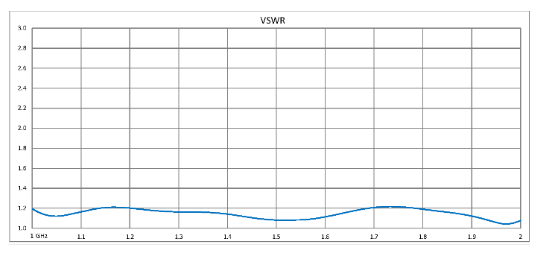

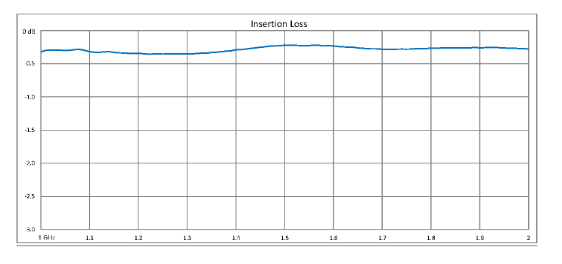

PE83IR1014 | Dual |
1.7-2.2 |
10 |
1.25:1 |
40 |
0.8 |
SMA |
SMA |
|
![]() |

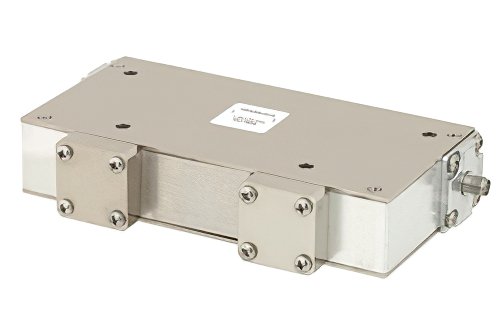

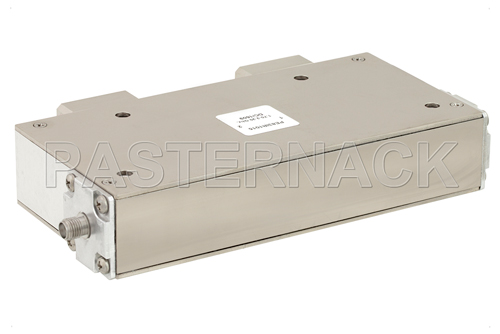

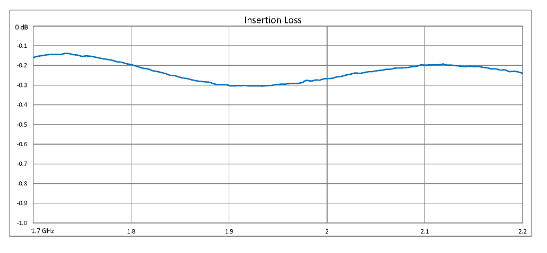

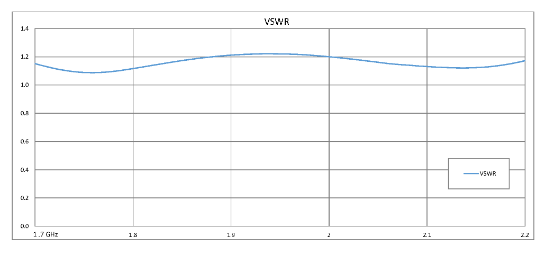

PE83IR1015 | Dual |
1.7-2.2 |
10 |
1.25:1 |
40 |
0.8 |
N |
SMA |
|
![]() |

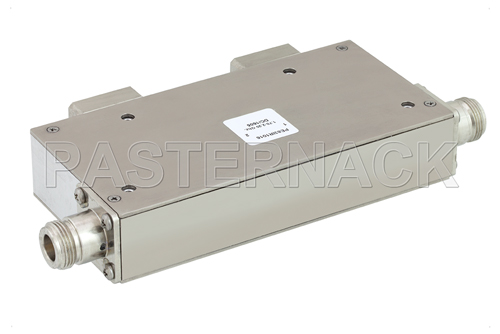

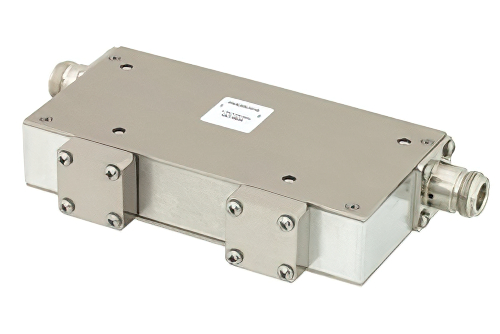

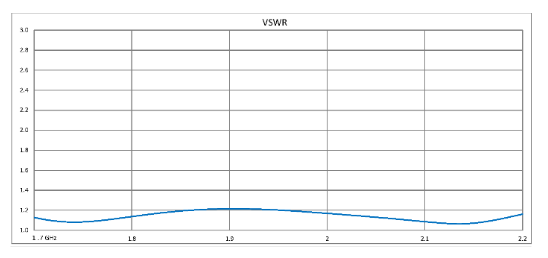

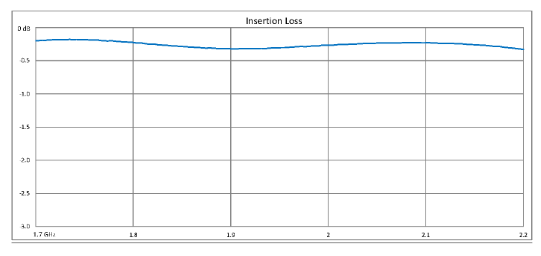

PE83IR1016 | Dual |
2-4 |
10 |
1.3:1 |
40 |
1 |
SMA |
SMA |
|
![]() |

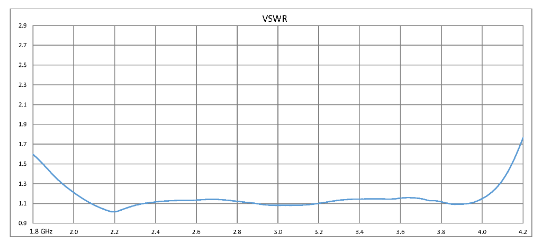

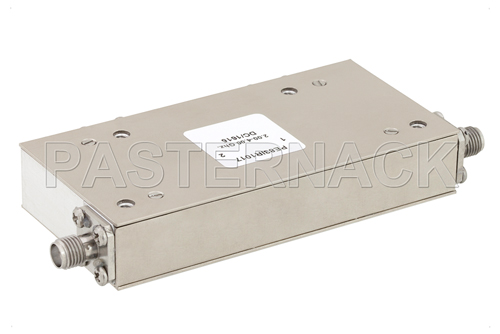

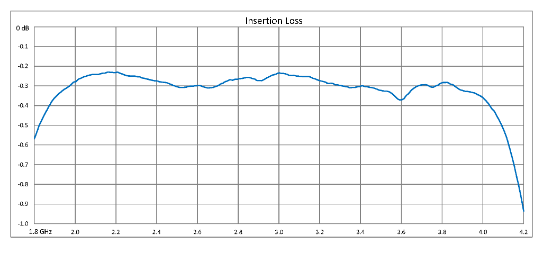

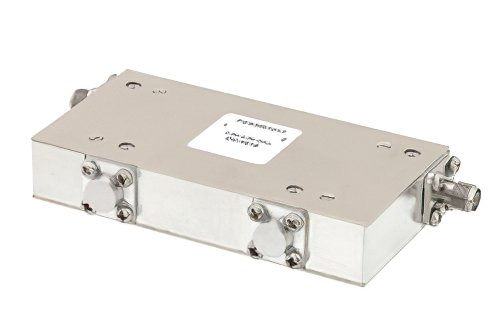

PE83IR1017 | Dual |
2-4 |
10 |
1.3:1 |
40 |
1 |
N |
SMA |
|
![]() |

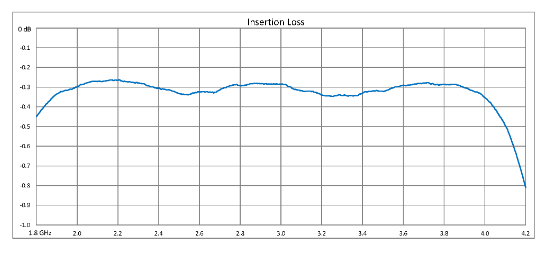

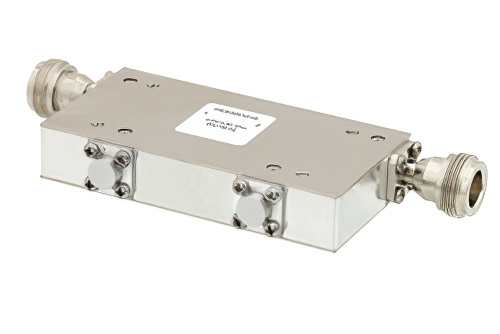

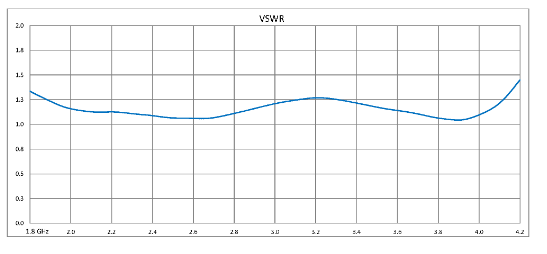

PE83IR1018 | Dual |
4-8 |
10 |
1.3:1 |
36 |
1 |
SMA |
SMA |
|
![]() |

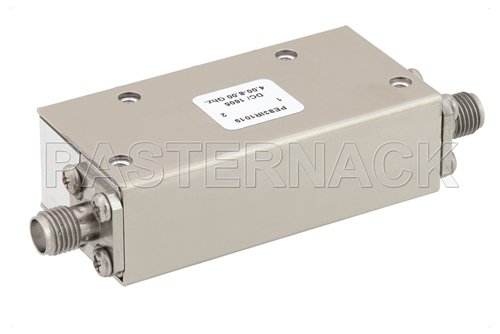

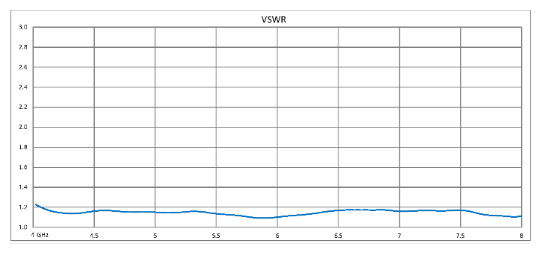

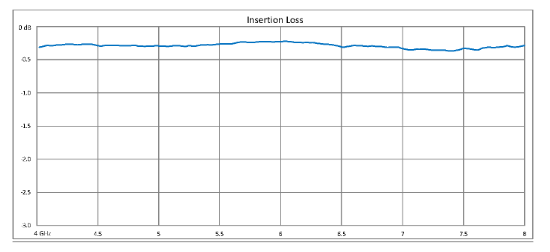

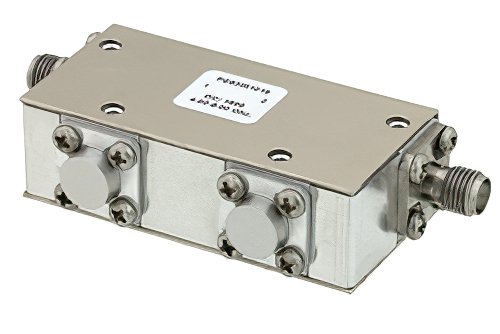

PE83IR1019 | Dual |
4-8 |
10 |
1.3:1 |
36 |
1 |
N |
SMA |
|
![]() |

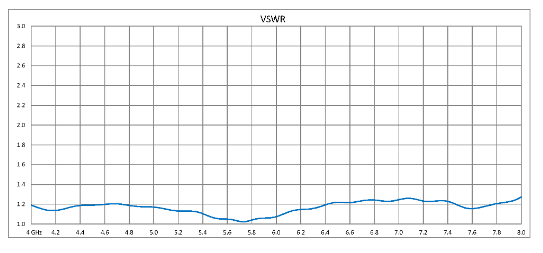

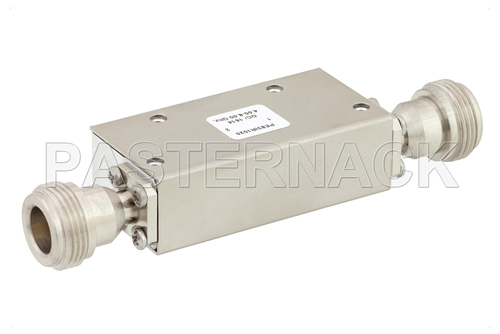

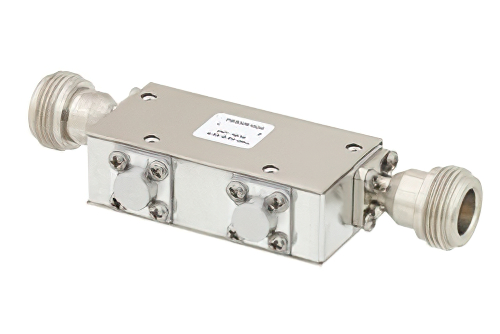

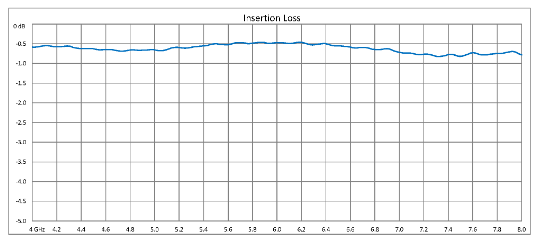

PE83IR1020 | Dual |
7-12.4 |
5 |
1.25:1 |
40 |
1.2 |
SMA |
SMA |
|
![]() |

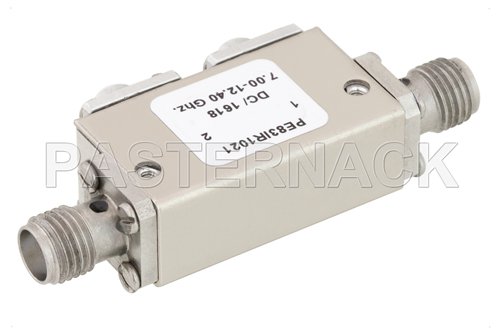

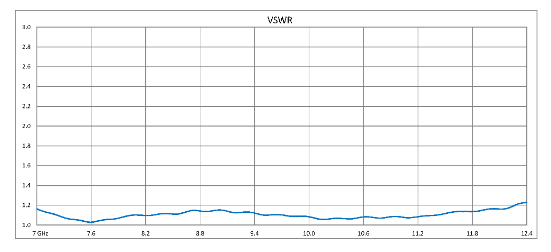

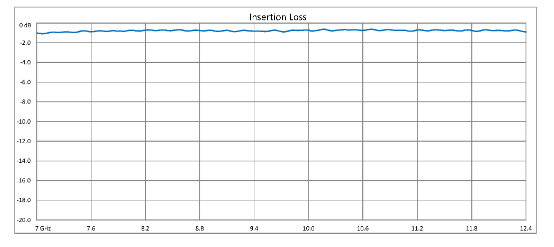

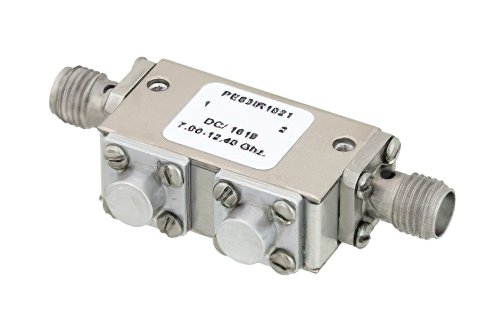

PE83IR1021 | Dual |
7-12.4 |
5 |
1.25:1 |
40 |
1.2 |
N |
SMA |
|
![]() |

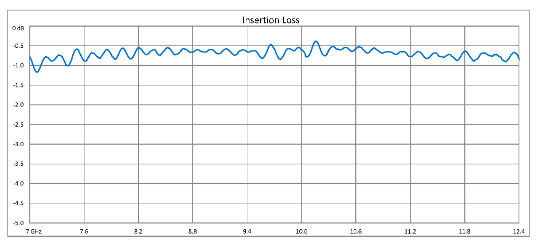

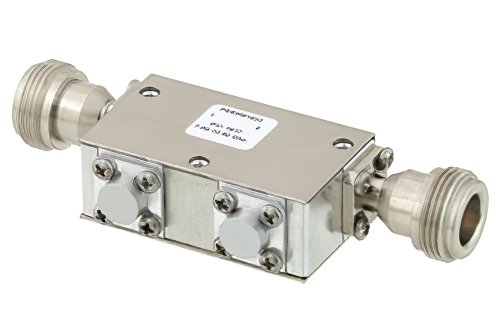

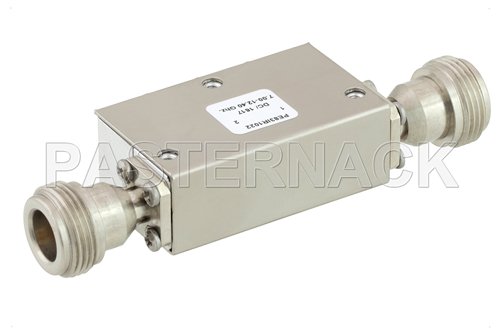

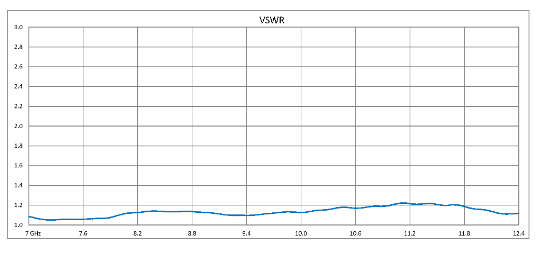

PE83IR1022 | Dual |
8-18 |
5 |
1.45:1 |
32 |
1.4 |
SMA |
SMA |
|
![]() |

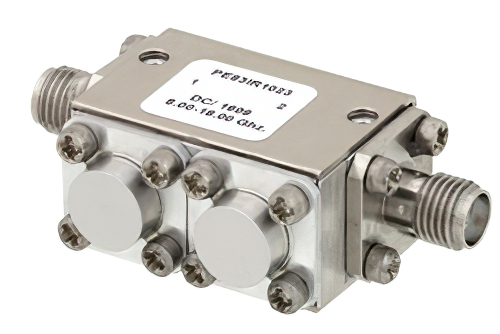

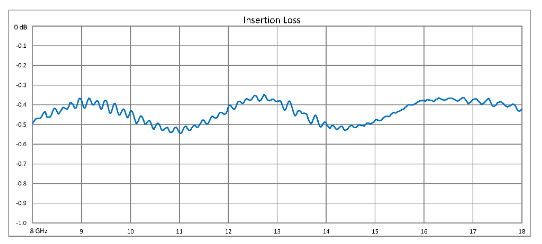

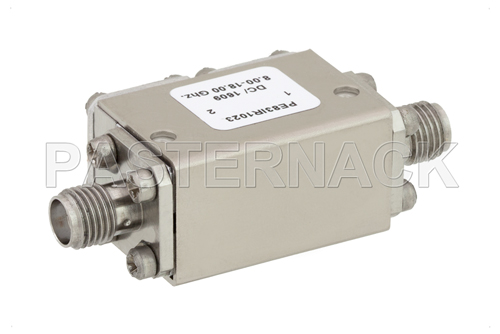

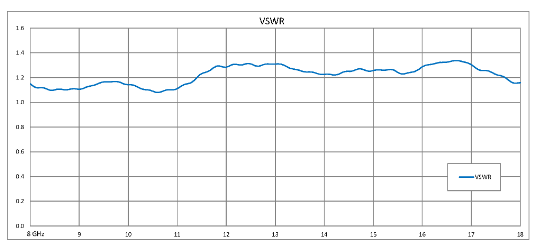

PE83IR1023 | Dual |
11-18 |
5 |
1.25:1 |
40 |
1.2 |
SMA |
SMA |
|
![]() |

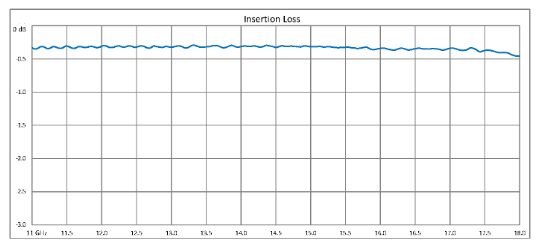

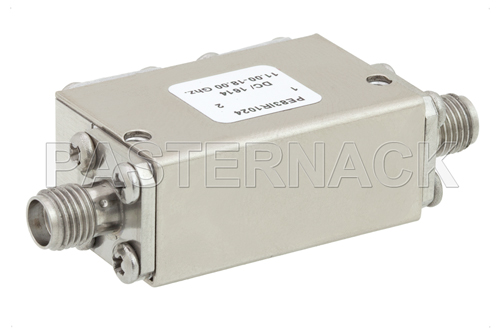

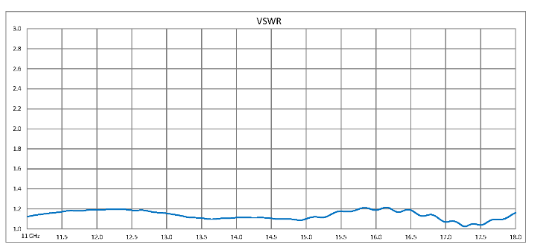

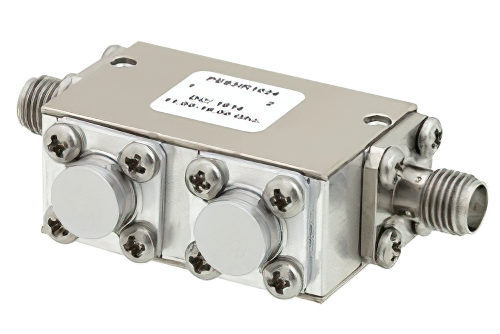

PE83IR1024 | Dual |
18-26.5 |
5 |
1.4:1 |
34 |
1.2 |
SMA |
SMA |
|
![]() |

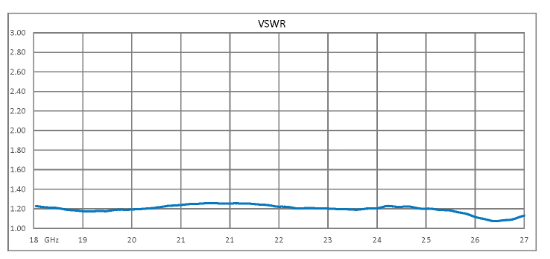

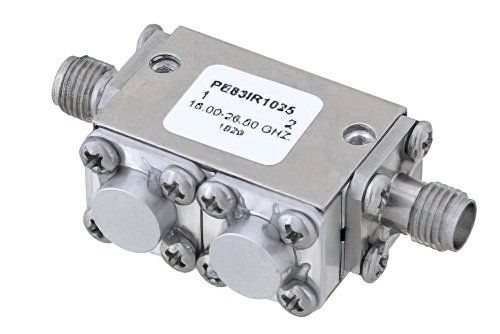

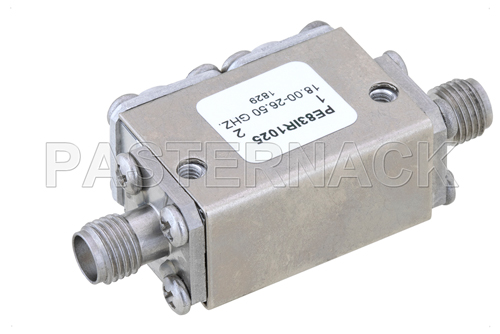

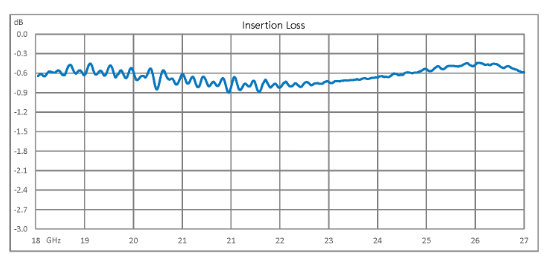

PE83IR1025 | Single |
8-18 |
50 |
1.45:1 |
16 |
0.6 |
SMA |
SMA |
|
![]() |

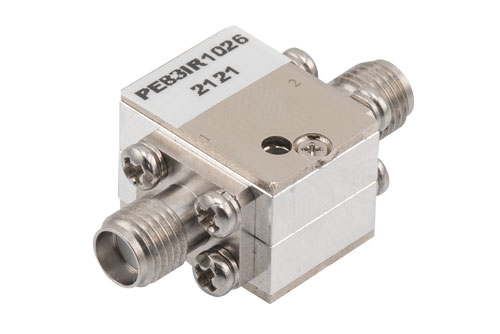

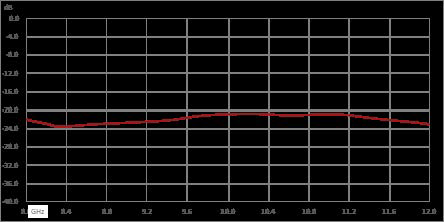

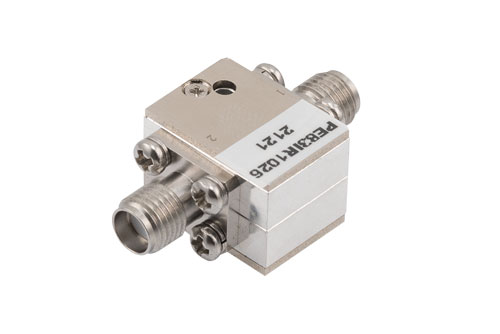

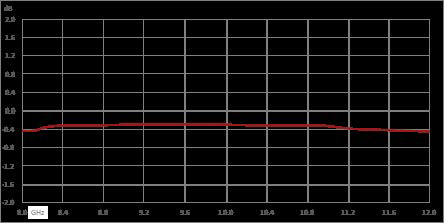

PE83IR1026 | Single |
8-12 |
10 |
1.35:1 |
20 |
0.5 |
SMA |
SMA |
|
![]() |

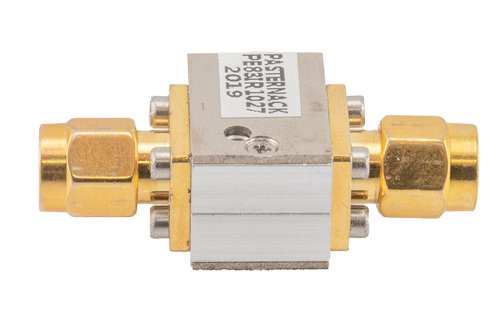

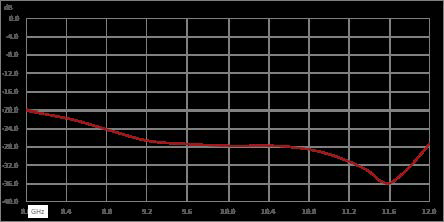

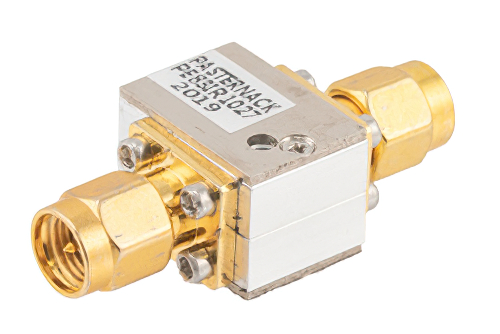

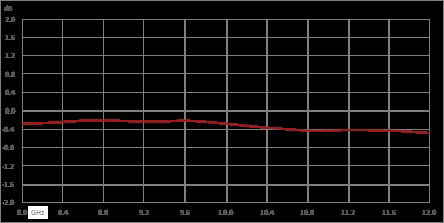

PE83IR1027 | Single |
8-12 |
10 |
1.35:1 |
20 |
0.5 |
SMA |
SMA |
|
![]() |

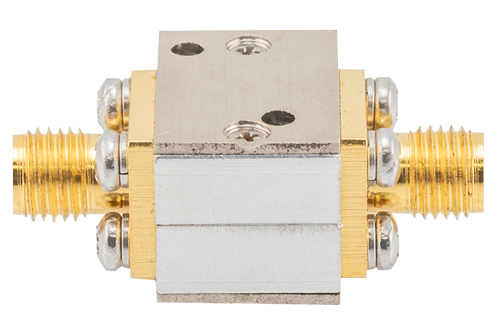

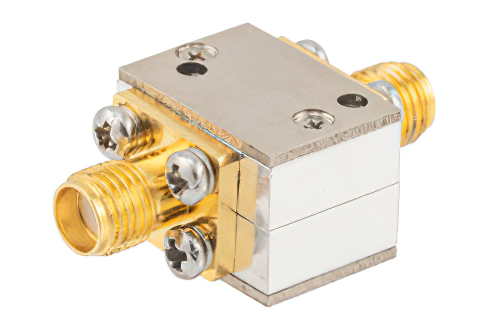

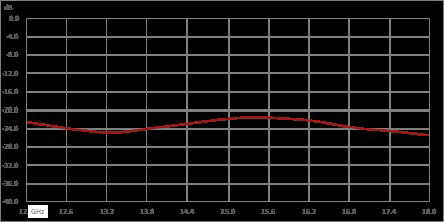

PE83IR1028 | Single |
12-18 |
10 |
1.35:1 |
20 |
0.5 |
SMA |
SMA |
|
![]() |

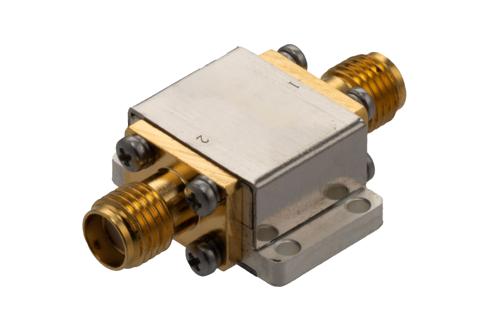

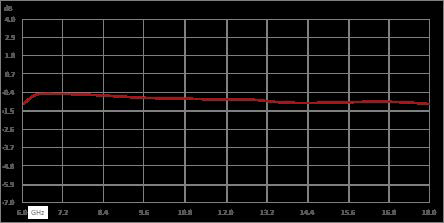

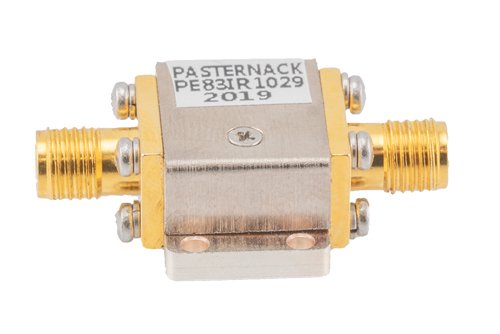

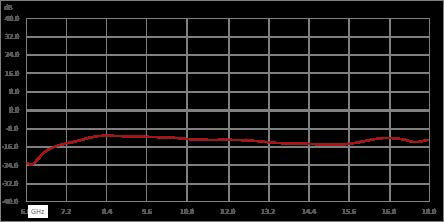

PE83IR1029 | Single |
6-18 |
10 |
1.6:1 |
10 |
1.5 |
SMA |
SMA |
|
![]() |

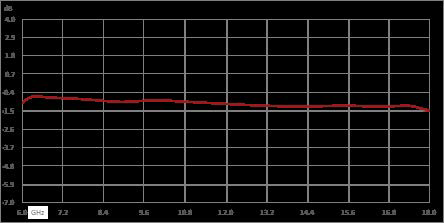

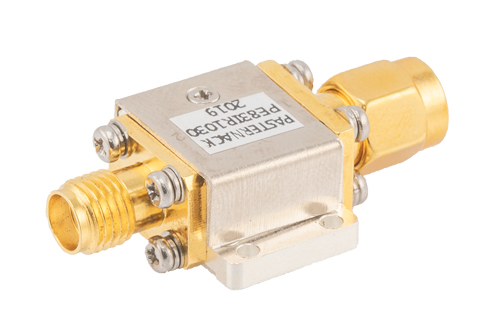

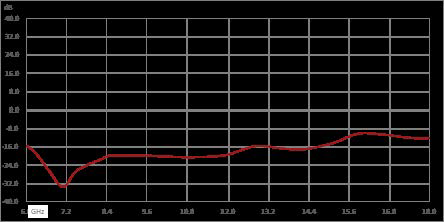

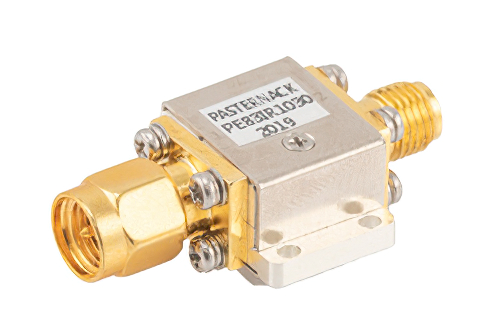

PE83IR1030 | Single |
6-18 |
10 |
1.6:1 |
10 |
1.5 |
SMA |
SMA |
|
![]() |

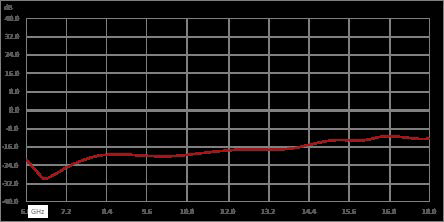

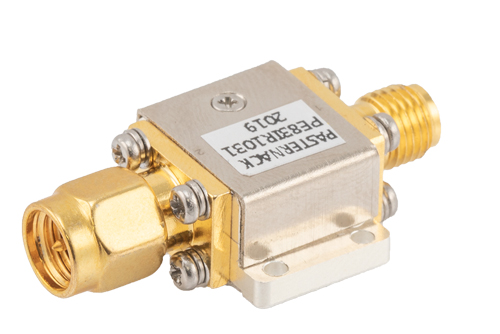

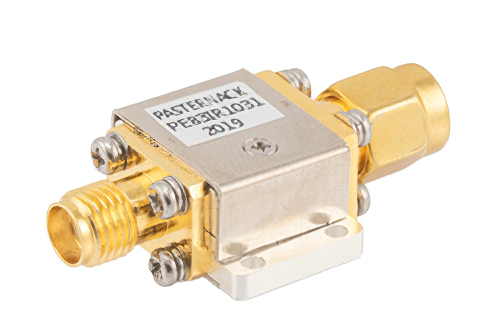

PE83IR1031 | Single |
6-18 |
10 |
1.6:1 |
10 |
1.5 |
SMA |
SMA |
|
![]() |

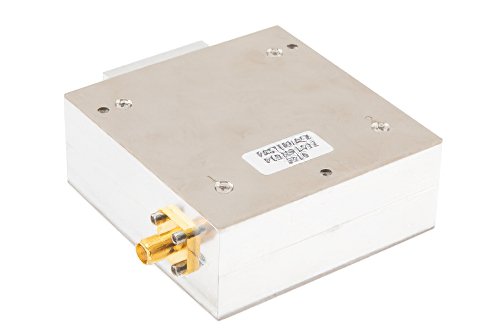

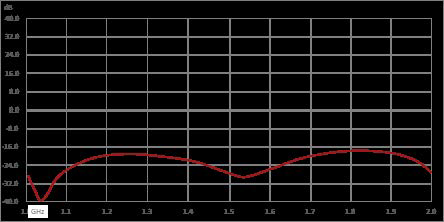

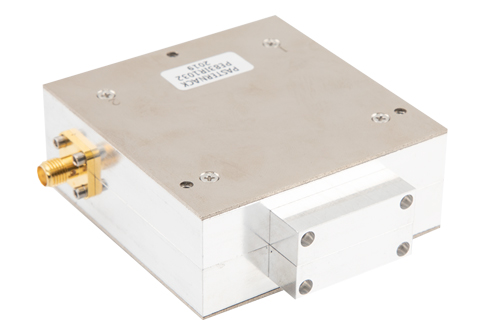

PE83IR1032 | Single |
1-2 |
10 |
1.5:1 |
16 |
0.8 |
SMA |
SMA |
|
![]() |

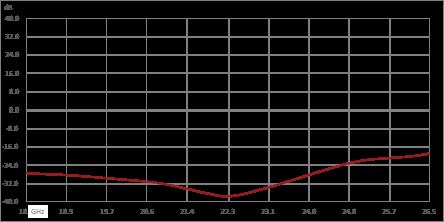

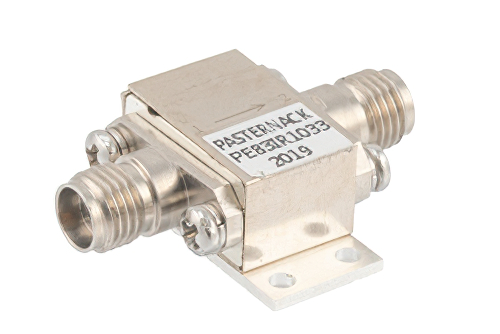

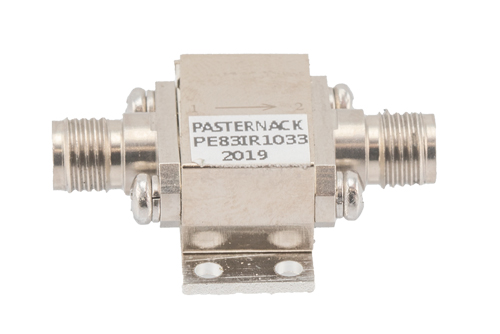

PE83IR1033 | Single |
18-26.5 |
10 |
1.7:1 |
14 |
1.7 |
2.92mm |
2.92mm |
|
![]() |

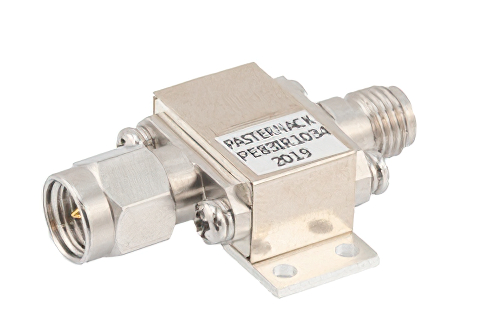

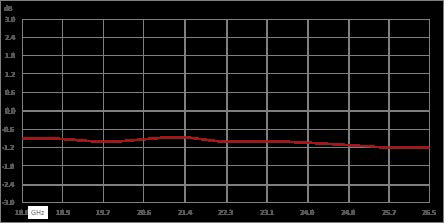

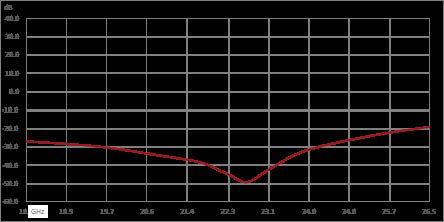

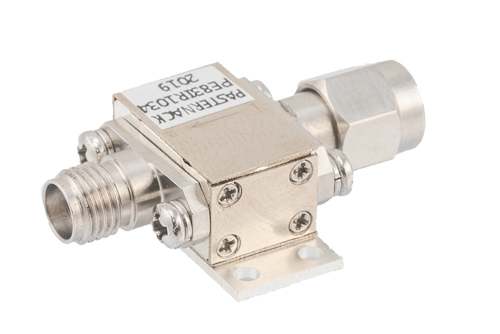

PE83IR1034 | Single |
18-26.5 |
10 |
1.7:1 |
14 |
1.7 |
SMA |
SMA |
|
![]() |

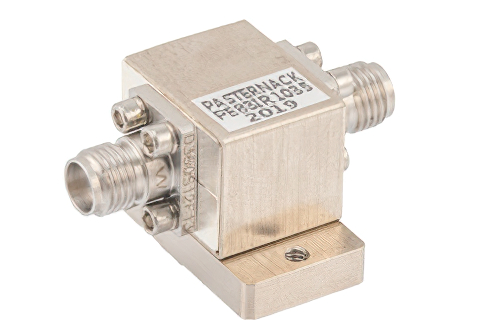

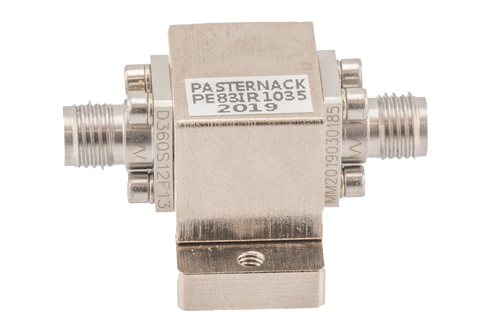

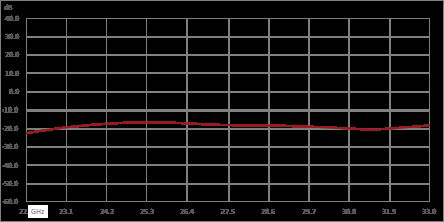

PE83IR1035 | Single |
22-33 |
10 |
1.8:1 |
13 |
1.7 |
2.92mm |
2.92mm |
|
![]() |

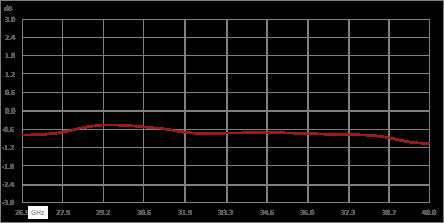

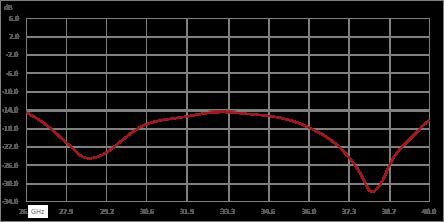

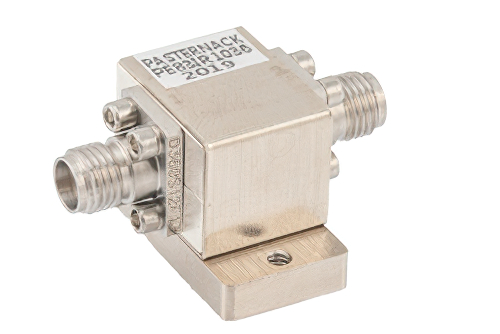

PE83IR1036 | Single |
26.5-40 |
10 |
1.7:1 |
12 |
1.7 |
2.92mm |
2.92mm |
|
![]() |

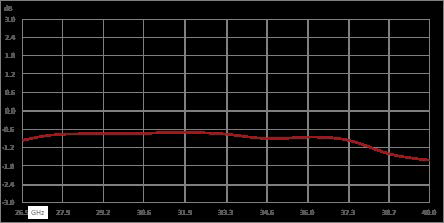

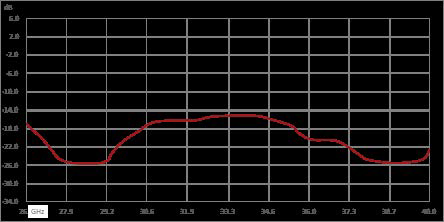

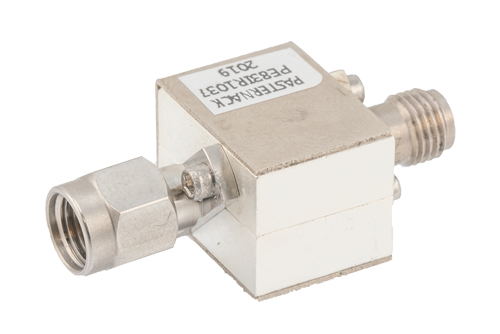

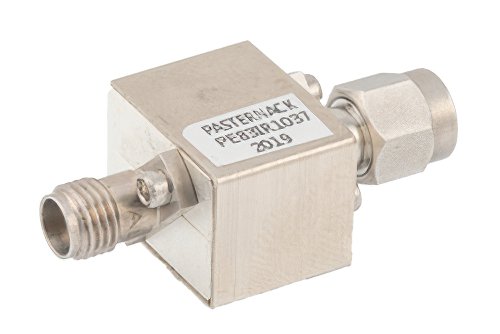

PE83IR1037 | Single |
26.5-40 |
10 |
1.7:1 |
12 |
1.7 |
2.92mm |
2.92mm |
|
![]() |

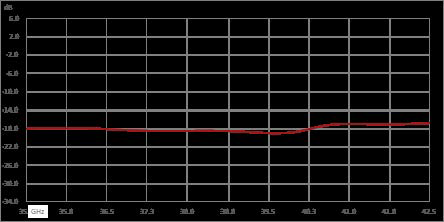

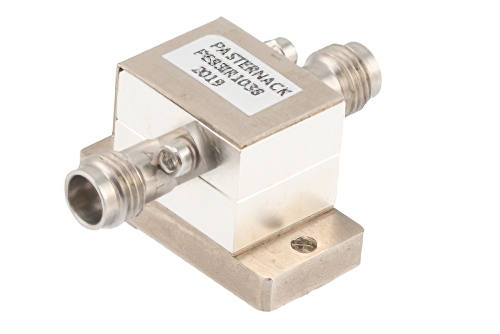

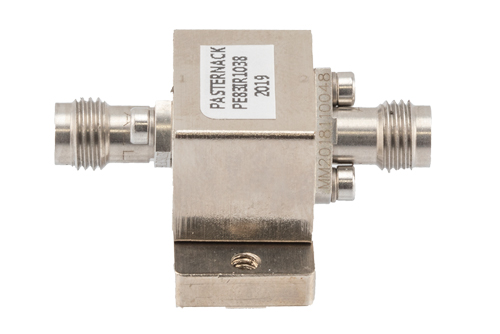

PE83IR1038 | Single |
35-42.5 |
10 |
1.6:1 |
14 |
1.6 |
2.4mm |
2.4mm |
|
![]() |

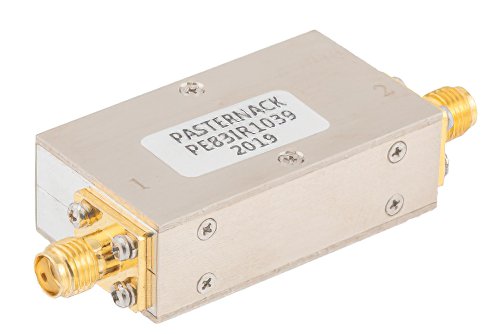

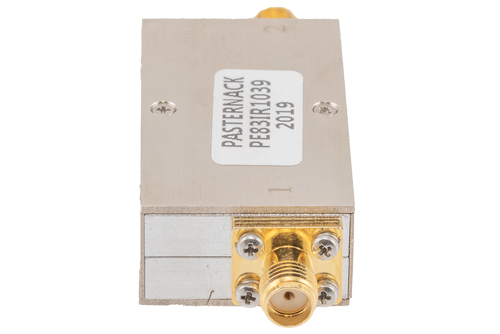

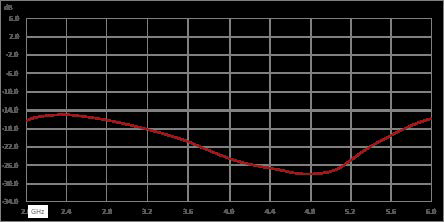

PE83IR1039 | Single |
2-6 |
10 |
1.8:1 |
12 |
1.8 |
SMA |
SMA |
|
![]() |

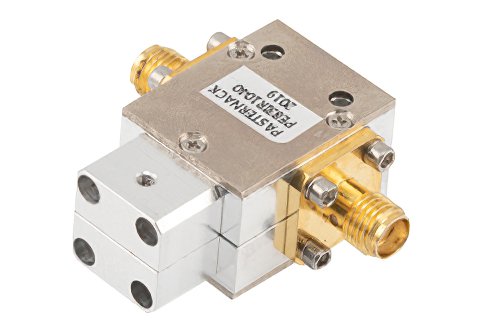

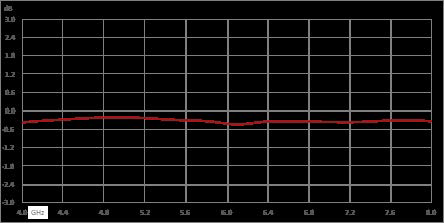

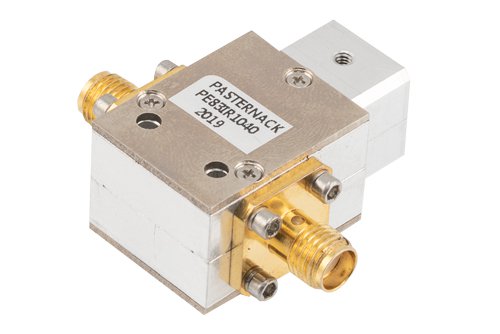

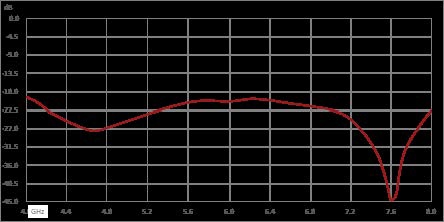

PE83IR1040 | Single |
4-8 |
30 |
1.35:1 |
19 |
0.5 |
SMA |
SMA |
|
![]() |

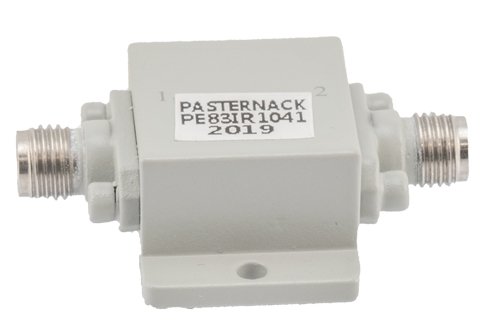

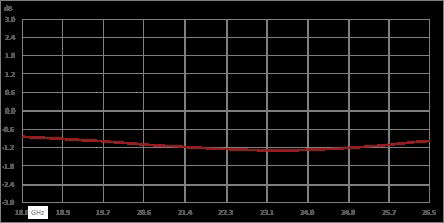

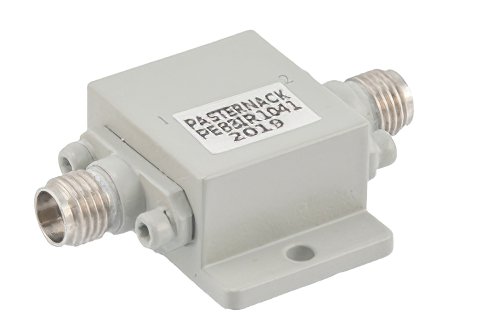

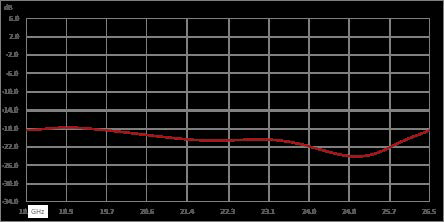

PE83IR1041 | Single |
18-26.5 |
10 |
1.7:1 |
14 |
1.7 |
2.92mm |
2.92mm |
|
High-Performance RF Isolators from Pasternack
Pasternack has expanded their offering of high-performance isolators with models that provide high max. frequencies up to 42.5 GHz and max. power ratings of up to 100 W, depending on the model. These devices are designed to provide minimal loss when transmitting input signals from one port to the next, offering excellent VSWR and high isolation performance. Pasternack's RF isolators are available in SMA, N-type, 2.4mm and 2.92mm connectorized designs, with different connector options available for I/O ports as well as dual- and single-junction options. These circulators and isolators are ideal for a wide range of applications, including 5G telecommunications, automotive radars, satellite communications, point-to-point radios, and defense/aerospace applications. You can avoid unwanted signals from damaging sensitive equipment with these new RF isolators from Pasternack, which are in-stock and available for same-day shipping!
For a complete list of Pasternack's products please click here
© 2020 Infinite Electronics, Inc. Pasternack is a registered trademark of Infinite Electronics, Inc.
