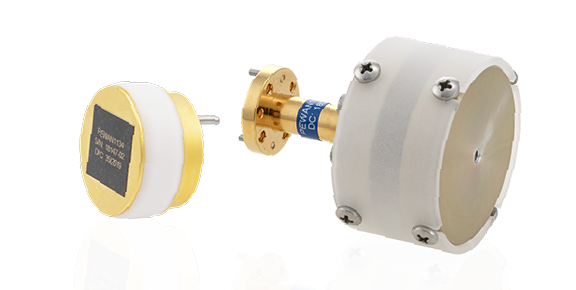

Omni-Directional Waveguide Antennas

Omni-Directional Waveguide Antennas

  • Ideal for applications such as:
    • Antenna Measurements
    • Laboratory Use
    • Wireless Communications
    • Microwave Radio Systems
  • In Stock and Shipped Same Day!
Available for Same-Day Shipping!

View our Full Portfolio of Waveguide Antennas

Product Image Name Frequency Range (GHz) Gain Waveguide Type/Size Flange Type/Size Horizontal Beamwidth Vertical Beamwidth

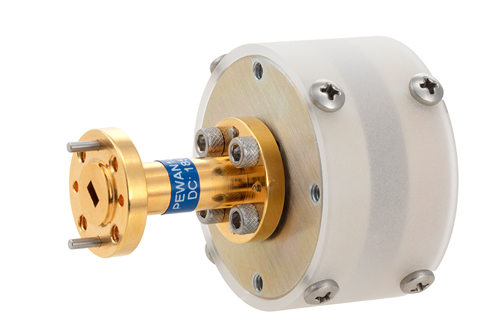

WR-15 Waveguide Omni-directional Antenna Operating from 58 GHz to 62 GHz with a Nominal 3.5 dBi Gain with UG-385/U Round Cover Flange
descr WR-15 Waveguide Omni-directional Antenna Operating from 58 GHz to 62 GHz with a Nominal 3.5 dBi Gain with UG-385/U Round Cover Flange descr WR-15 Waveguide Omni-directional Antenna Operating from 58 GHz to 62 GHz with a Nominal 3.5 dBi Gain with UG-385/U Round Cover Flange
PEWAN1087 58 to 62 3.5 dBi Rectangular WR-15 Round Cover UG-385/U 360.00 45.00

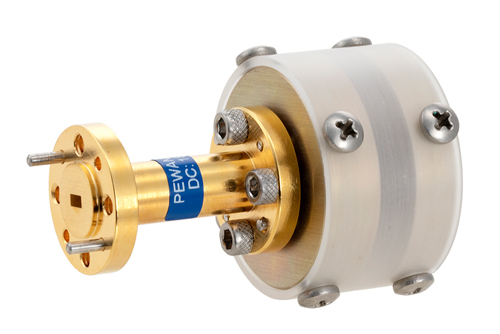

WR-12 Waveguide Omni-directional Antenna Operating from 75 GHz to 79 GHz with a Nominal 2 dBi Gain with UG-387/U Round Cover Flange
descr WR-12 Waveguide Omni-directional Antenna Operating from 75 GHz to 79 GHz with a Nominal 2 dBi Gain with UG-387/U Round Cover Flange descr WR-12 Waveguide Omni-directional Antenna Operating from 75 GHz to 79 GHz with a Nominal 2 dBi Gain with UG-387/U Round Cover Flange
PEWAN1088 75 to 79 2 dBi Rectangular WR-12 Round Cover UG-387/U 360.00 45.00
WR-10 Waveguide Omni-directional Antenna Operating from 89 GHz to 99 GHz with a Nominal 2 dBi Gain with UG-387/U Round Cover Flange
descr WR-10 Waveguide Omni-directional Antenna Operating from 89 GHz to 99 GHz with a Nominal 2 dBi Gain with UG-387/U Round Cover Flange descr WR-10 Waveguide Omni-directional Antenna Operating from 89 GHz to 99 GHz with a Nominal 2 dBi Gain with UG-387/U Round Cover Flange
PEWAN1089 89 to 99 2 dBi Rectangular WR-10 Round Cover UG-387/U 360.00 45.00

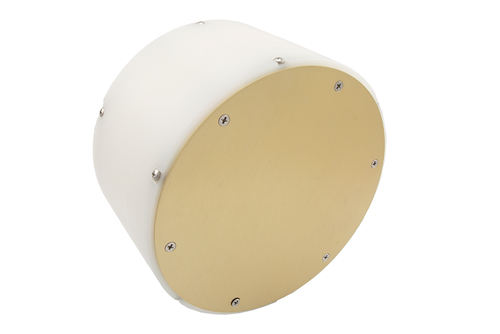

WR-28 Waveguide Omni-directional Antenna, 26.5 GHz to 40 GHz Frequency Range, 7.5 dBi Gain, UG-599/U Flange
descr WR-28 Waveguide Omni-directional Antenna, 26.5 GHz to 40 GHz Frequency Range, 7.5 dBi Gain, UG-599/U Flange descr WR-28 Waveguide Omni-directional Antenna, 26.5 GHz to 40 GHz Frequency Range, 7.5 dBi Gain, UG-599/U Flange
PEWAN1133 26.5 - 40 7.5 dBi Rectangular WR-28 Square Cover UG-599/U 360.00 10.00

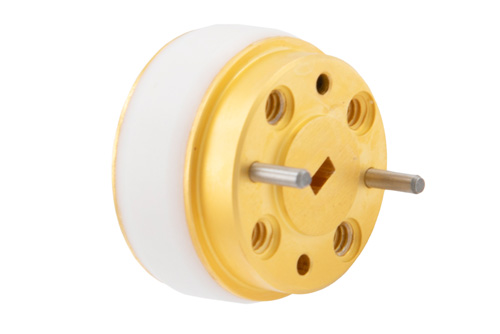

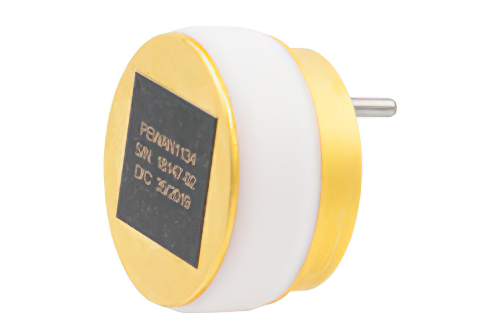

WR-12 Waveguide Omni-directional Antenna Operating from 71 GHz to 86 GHz with a Nominal 2 dBi Gain with UG-387/U Round Cover Flange
descr WR-12 Waveguide Omni-directional Antenna Operating from 71 GHz to 86 GHz with a Nominal 2 dBi Gain with UG-387/U Round Cover Flange descr WR-12 Waveguide Omni-directional Antenna Operating from 71 GHz to 86 GHz with a Nominal 2 dBi Gain with UG-387/U Round Cover Flange
PEWAN1134 71 - 86 2 dBi Rectangular WR-12 Round Cover UG-387/U 360.00 30.00

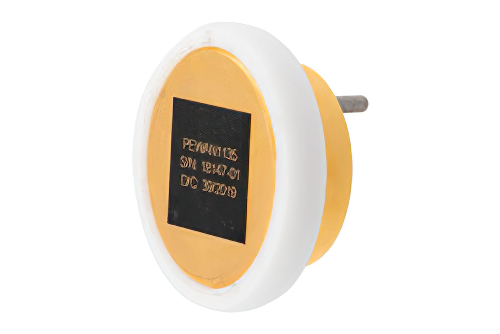

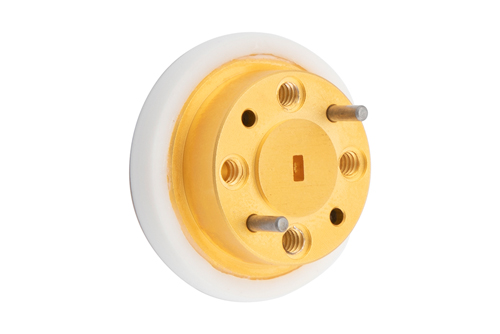

WR-10 Waveguide Omni-directional Antenna, 90 GHz to 100 GHz Frequency Range, 0 dBi Gain, UG-387/U-Mod Flange
descr WR-10 Waveguide Omni-directional Antenna, 90 GHz to 100 GHz Frequency Range, 0 dBi Gain, UG-387/U-Mod Flange descr WR-10 Waveguide Omni-directional Antenna, 90 GHz to 100 GHz Frequency Range, 0 dBi Gain, UG-387/U-Mod Flange
PEWAN1135 90 - 100 0 dBi Rectangular WR-10 Round Cover UG-387/U-Mod 360.00 60.00

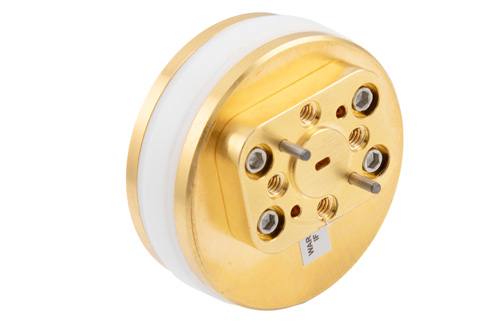

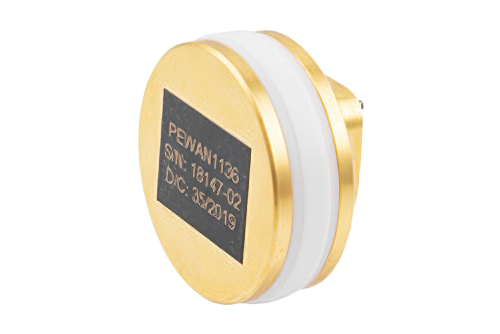

WR-10 Waveguide Omni-directional Antenna Operating from 90 GHz to 100 GHz with a Nominal 6.5 dBi Gain with UG-387/U-Mod Square Cover Flange
descr WR-10 Waveguide Omni-directional Antenna Operating from 90 GHz to 100 GHz with a Nominal 6.5 dBi Gain with UG-387/U-Mod Square Cover Flange descr WR-10 Waveguide Omni-directional Antenna Operating from 90 GHz to 100 GHz with a Nominal 6.5 dBi Gain with UG-387/U-Mod Square Cover Flange
PEWAN1136 90 - 100 6.5 dBi Rectangular WR-10 Square Cover UG-387/U-Mod 360.00 30.00

Omni-Directional Waveguide Antennas from Pasternack

Omni-directional waveguide antennas are used in a wide variety of applications due to their high power handling capability, low loss, high directivity, and near constant electrical performance across a broad bandwidth. Pasternack’s omni-directional antennas offer operating frequencies from 26.5-100 GHz with 0-7.5 dBi of gain. These antennas offer a low gain variation across their operating frequency. Omni-directional waveguide antennas are part of Pasternack's full line of RF components available for same-day shipping.
