Part No.

& Additional

Views

Frequency
Band
(GHz)

Voltage Sensitivity

(mV/mW)

VSWR

(Typ)

Flatness

(+ dB)

(Max)

Polarity

Video Capacitance

(pF)

Tangantial Sensitivity (TSS) (dBm)

Max CW

Input Power

(dBm)

RF Connector

Input/

Output

USA & Canada (866) 727-8376  International +1 (949) 261-1920

USA & Canada (866) 727-8376  International +1 (949) 261-1920

  •  Broadband Frequency Coverage from 100 MHz to 26 GHz
  •  Comprehensive Selection of 26 Models
  •  Extremely Fast Pulse Response Risetime of 5 ns Typical
  •  Rugged Germanium (Ge) Planar Construction
  •  No Bias Voltage Required
  •  Excellent Dynamic Range with Very Efficient Low Level Signal Detection
  •  Both Negative and Positive Video Output Polarity Available
  •  High CW Input Power Handling up to +17 dBm
  •  Compact SMA Connectorized Packages

Available for Same-Day Shipping!


Part No.

& Additional

Views

Frequency
Band
(GHz)

Voltage Sensitivity

(mV/mW)

VSWR

(Typ)

Flatness

(+ dB)

(Max)

Polarity

Video Capacitance

(pF)

Tangantial Sensitivity (TSS) (dBm)

Max CW

Input Power

(dBm)

RF Connector

Input/

Output

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 100 MHz to 2 GHz   PE80T6000

0.1 to 2

800

2.0:1

0.75

Negative

470

-51

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 100 MHz to 2 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 100 MHz to 2 GHz

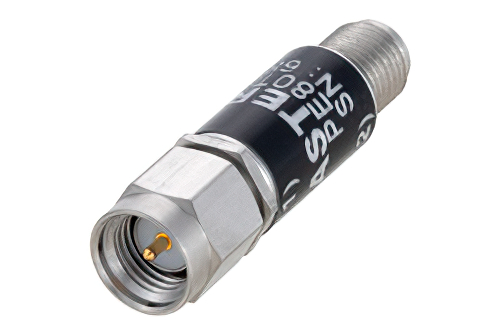

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 100 MHz to 2 GHz   PE80T6001

0.1 to 2

800

2.0:1

0.75

Positive

470

-51

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 100 MHz to 2 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 100 MHz to 2 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 100 MHz to 4 GHz   PE80T6002

0.1 to 4

800

2.2:1

0.75

Negative

470

-51

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 100 MHz to 4 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 100 MHz to 4 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 100 MHz to 4 GHz   PE80T6003

0.1 to 4

800

2.2:1

0.75

Positive

470

-51

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 100 MHz to 4 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 100 MHz to 4 GHz

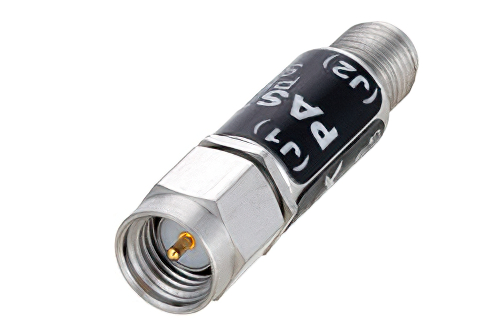

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 500 MHz to 18 GHz   PE80T6004

0.5 to 18

400

3.5:1

1

Negative

100

-50

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 500 MHz to 18 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 500 MHz to 18 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 500 MHz to 18 GHz   PE80T6005

0.5 to 18

400

3.5:1

1

Positive

100

-50

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 500 MHz to 18 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 500 MHz to 18 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 2 GHz to 18 GHz   PE80T6006

2 to 18

500

3.5:1

1

Negative

20

-47

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 2 GHz to 18 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 2 GHz to 18 GHz

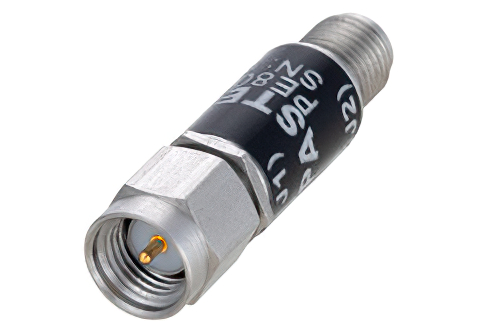

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 2 GHz to 18 GHz   PE80T6007

2 to 18

500

3.5:1

1

Positive

20

-47

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 2 GHz to 18 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 2 GHz to 18 GHz

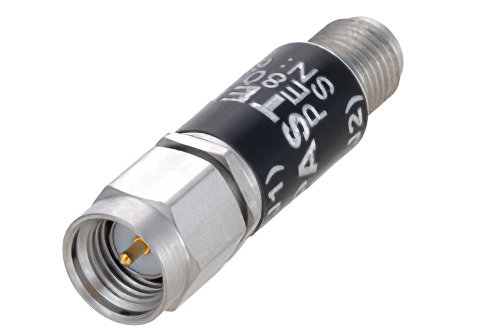

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 6 GHz to 18 GHz   PE80T6008

6 to 18

700

3.0:1

0.75

Negative

10

-47

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 6 GHz to 18 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 6 GHz to 18 GHz

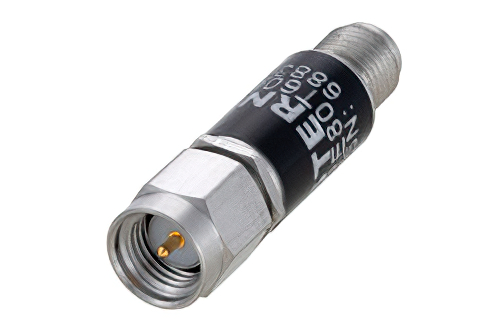

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 6 GHz to 18 GHz   PE80T6009

6 to 18

700

3.0:1

0.75

Positive

10

-47

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 6 GHz to 18 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 6 GHz to 18 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 500 MHz to 1 GHz   PE80T6010

0.5 to 1

1000

2.0:1

0.5

Negative

100

-51

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 500 MHz to 1 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 500 MHz to 1 GHz

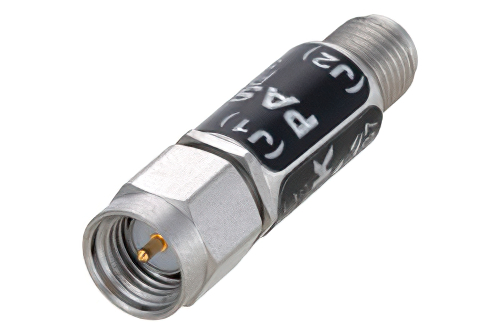

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 500 MHz to 1 GHz   PE80T6011

0.5 to 1

1000

2.0:1

0.5

Positive

100

-51

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 500 MHz to 1 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 500 MHz to 1 GHz

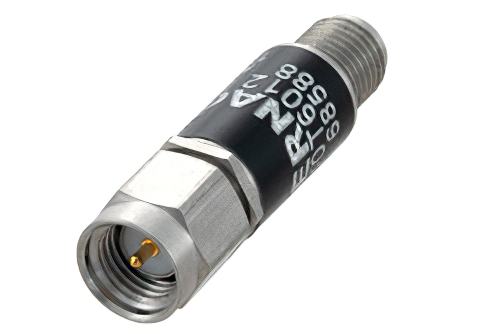

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 1 GHz to 2 GHz   PE80T6012

1 to 2

1000

2.0:1

0.5

Negative

50

-51

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 1 GHz to 2 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 1 GHz to 2 GHz

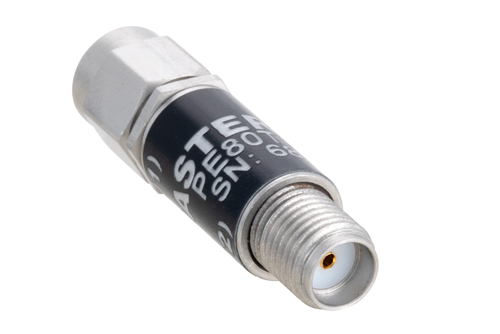

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 1 GHz to 2 GHz   PE80T6013

1 to 2

1000

2.0:1

0.5

Positive

50

-51

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 1 GHz to 2 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 1 GHz to 2 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 2 GHz to 4 GHz   PE80T6014

2 to 4

1000

2.0:1

0.5

Negative

20

-51

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 2 GHz to 4 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 2 GHz to 4 GHz

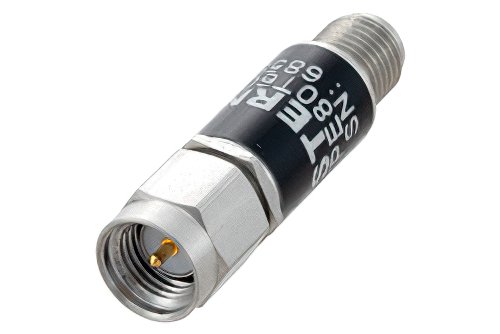

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 2 GHz to 4 GHz   PE80T6015

2 to 4

1000

2.0:1

0.5

Positive

20

-51

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 2 GHz to 4 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 2 GHz to 4 GHz

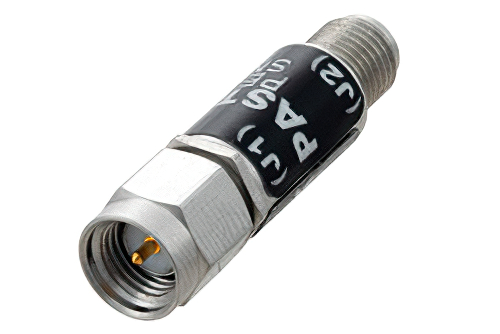

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 2 GHz to 6 GHz   PE80T6016

2 to 6

1000

2.5:1

0.5

Negative

20

-50

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 2 GHz to 6 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 2 GHz to 6 GHz

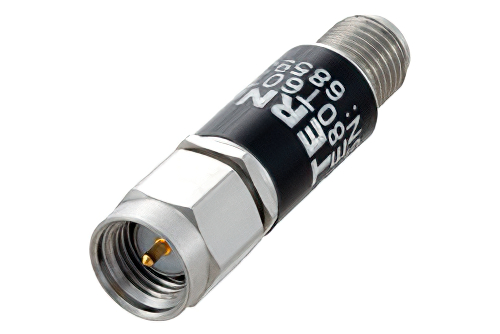

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 2 GHz to 6 GHz   PE80T6017

2 to 6

1000

2.5:1

0.5

Positive

20

-50

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 2 GHz to 6 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 2 GHz to 6 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 4 GHz to 8 GHz   PE80T6018

4 to 8

900

2.5:1

0.7

Negative

20

-50

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 4 GHz to 8 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 4 GHz to 8 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 4 GHz to 8 GHz   PE80T6019

4 to 8

900

2.5:1

0.7

Positive

20

-50

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 4 GHz to 8 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 4 GHz to 8 GHz

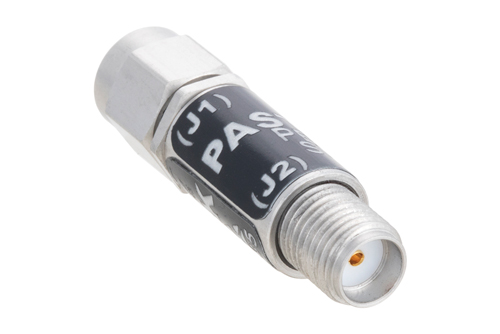

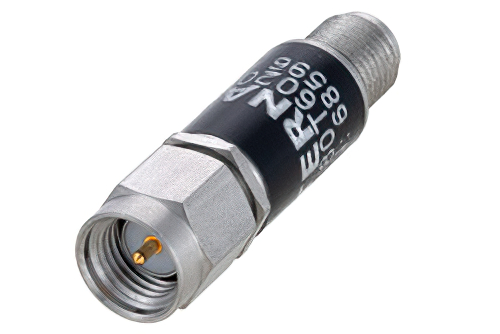

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 6 GHz to 12 GHz   PE80T6020

6 to 12

800

2.7:1

0.6

Negative

10

-50

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 6 GHz to 12 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 6 GHz to 12 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 6 GHz to 12 GHz   PE80T6021

6 to 12

800

2.7:1

0.6

Positive

10

-50

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 6 GHz to 12 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 6 GHz to 12 GHz

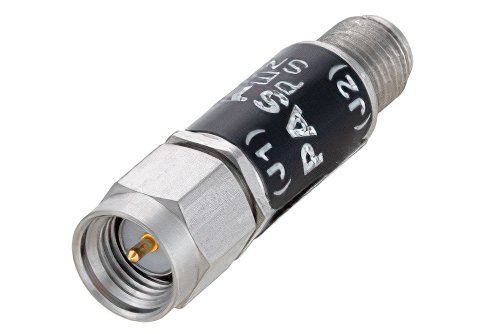

Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 12 GHz to 18 GHz   PE80T6022

12 to 18

700

3.0:1

0.7

Negative

10

-47

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 12 GHz to 18 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 12 GHz to 18 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 12 GHz to 18 GHz   PE80T6023

12 to 18

700

3.0:1

0.7

Positive

10

-47

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 12 GHz to 18 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 12 GHz to 18 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 18 GHz to 26 GHz   PE80T6024

18 to 26

400

4.0:1

1

Negative

5

-47

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 18 GHz to 26 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Negative Video Out, +17 dBm max Pin, 18 GHz to 26 GHz



Tunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 18 GHz to 26 GHz   PE80T6025

18 to 26

400

4.0:1

1

Positive

5

-47

+17

SMA Male/
SMA Female

  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 18 GHz to 26 GHz
  • descrTunnel Diode Detector, SMA, 5 nsec Pulse Risetime, Positive Video Out, +17 dBm max Pin, 18 GHz to 26 GHz



Tunnel Diode Detectors from Pasternack

Pasternack offers 26 models of tunnel diode detectors that feature rugged Germanium planar construction and operate over octave and broadband frequencies that range from 100 MHz to 26 GHz.

The zero biased tunnel diode detector designs are available in both positive and negative video output polarities and offer excellent dynamic range with very efficient low-level signal detection.

These tunnel diode detectors have maximum input power handling of +17 dBm and exhibit a flat video output response across wide frequency bands over a maximum temperature range of -65°C to +115°C and feature an extremely fast pulse response risetime of 5 ns typical.

The detectors are ideal for prototype and proof-of-concept applications used in aerospace and defense, military and commercial radar, test and measurement, SATCOM applications and more. All models are RoHS and REACH compliant and are available in compact cylindrical packages that feature an SMA male RF input connector and an SMA female video output connector.

Pasternack’s tunnel diode detectors are in-stock and available for same-day shipping.
