  • Six Models Cover Broadband Frequencies Ranging From 25 MHz to 27 GHz
  • USB Controlled PLL Synthesizers High Output Power From +10 to +19 dBm Typical
  • Output Attenuation Is Adjustable Up To 50 dB In 1 dB Steps
  • User Selectable Internal Or External Frequency References
  • USB Controlled PLL Frequency Synthesizer Designs Support Both Integer And Fractional Operating Modes
  • Powered And Controlled Via USB 2.0 GUI Interface And VISA Software Compliant
  • Small Compact Coaxial Packages Ideal For Bench Top Test And Measurement
  • Downloadable User Manuel And PLL Frequency Synthesizer Accessory Cables Included

PLL Synthesizers are in stock & ship same-day

▼ Click on the links below for more details

USB Controlled PLL Frequency Synthesizers


Part No.
additional views

Frequency
(GHz)

Pout (dBm)
(typ)

Attenuation
Range (dB)

(typ)

Attenuation
Steps (dB)

2nd Harmonic
(dBc) (typ)

Phase Noise

@ 100 KHz Offset

(dBc/Hz) (typ)

External Refernce
Frequency (MHz)

External Reference
Input Power (dBm)

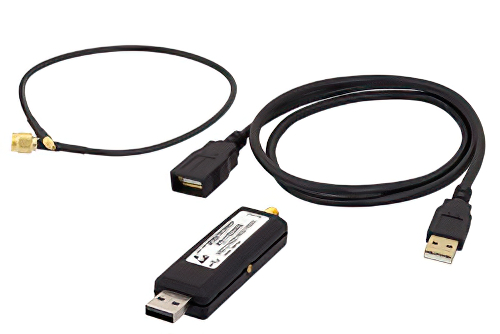

USB Frequency Synthesizer Module, Phase Locked Loop (PLL), 35 MHz to 4.4 GHz Output, SMA   PE11S3900

.035 to 4.4

-20 to +10

0-31

0.5

-108

-18

20 to 100

+5 to +15
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 35 MHz to 4.4 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 35 MHz to 4.4 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 35 MHz to 4.4 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 35 MHz to 4.4 GHz Output, SMA


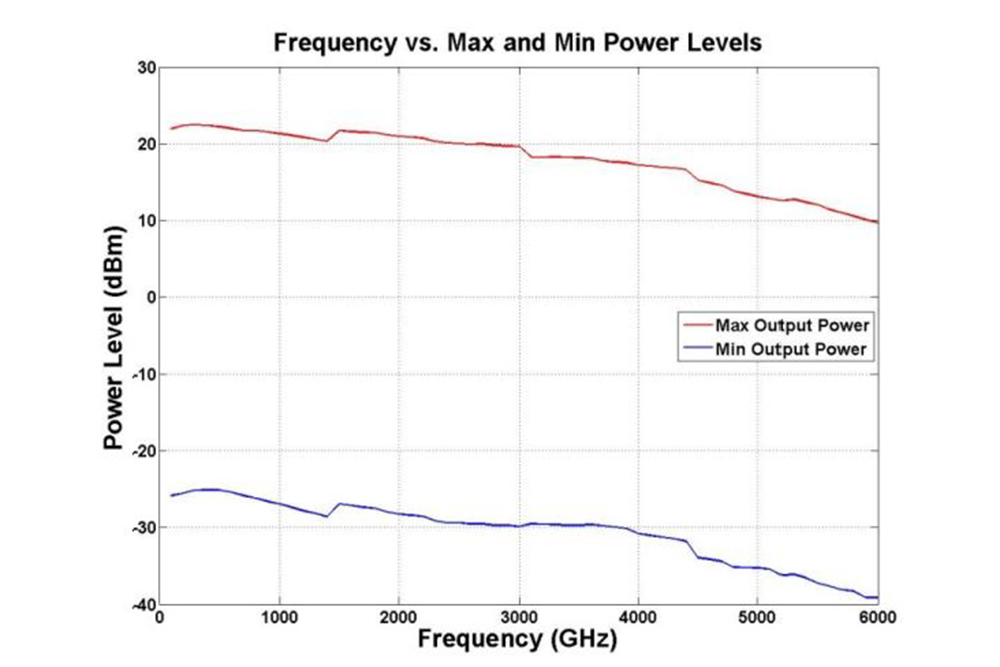

USB Frequency Synthesizer Module, Phase Locked Loop (PLL), 25 MHz to 6 GHz Output, SMA   PE11S3901

.025 to 6

-30 to +19

0-51

1

-95

-26

20 to 100

+5 to +15
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 25 MHz to 6 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 25 MHz to 6 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 25 MHz to 6 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 25 MHz to 6 GHz Output, SMA


USB Frequency Synthesizer Module, Phase Locked Loop (PLL), 5 GHz to 10 GHz Output, SMA   PE11S3902

5 to 10

-14 to +18

0-31

1

-75

-22

20 to 100

+5 to +15
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 5 GHz to 10 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 5 GHz to 10 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 5 GHz to 10 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 5 GHz to 10 GHz Output, SMA


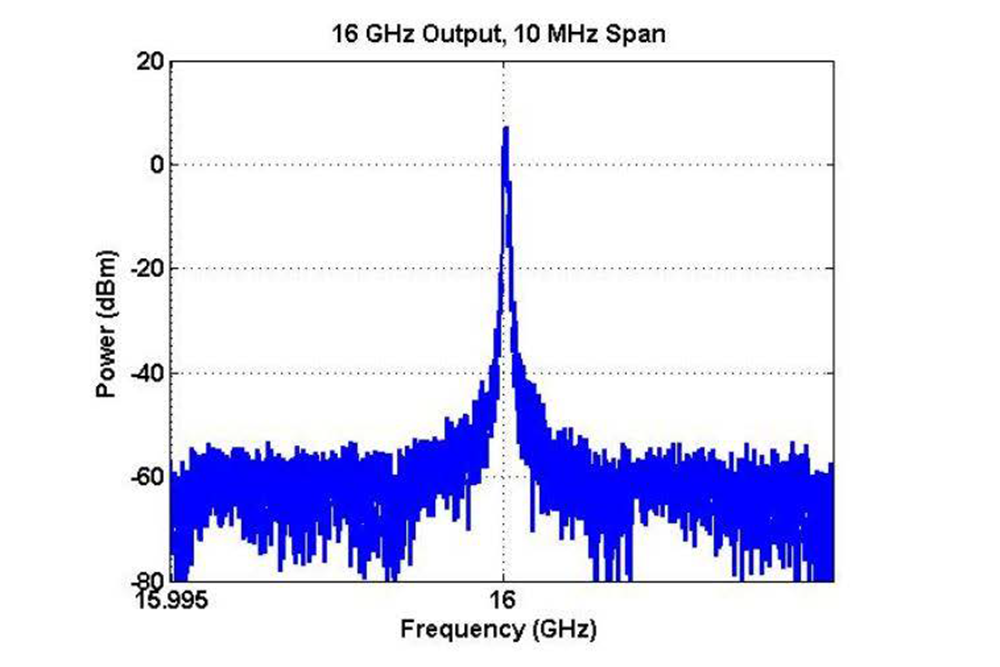

USB Frequency Synthesizer Module, Phase Locked Loop (PLL), 10 GHz to 20 GHz Output, SMA   PE11S3903

10 to 20

-14 to +16

0-31

1

-80

-30

20 to 100

+5 to +15
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 10 GHz to 20 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 10 GHz to 20 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 10 GHz to 20 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 10 GHz to 20 GHz Output, SMA


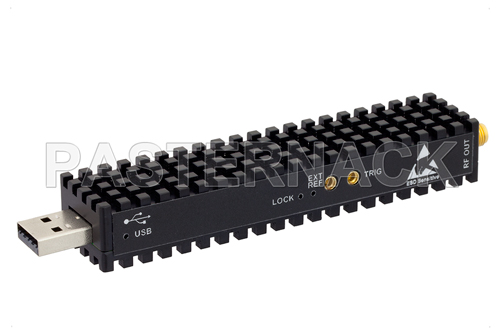

USB Frequency Synthesizer Module, Phase Locked Loop (PLL), 21 GHz to 24 GHz Output, SMA   PE11S3904

21 to 24

-17 to +17

0-31

1

-88

-22

20 to 100

+5 to +15
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 21 GHz to 24 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 21 GHz to 24 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 21 GHz to 24 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 21 GHz to 24 GHz Output, SMA


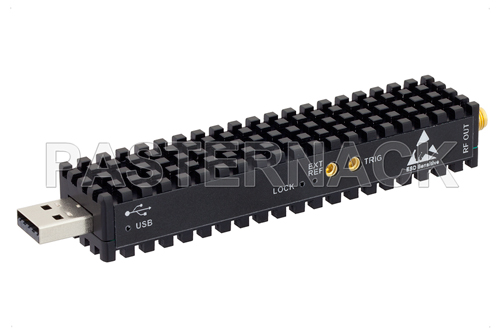

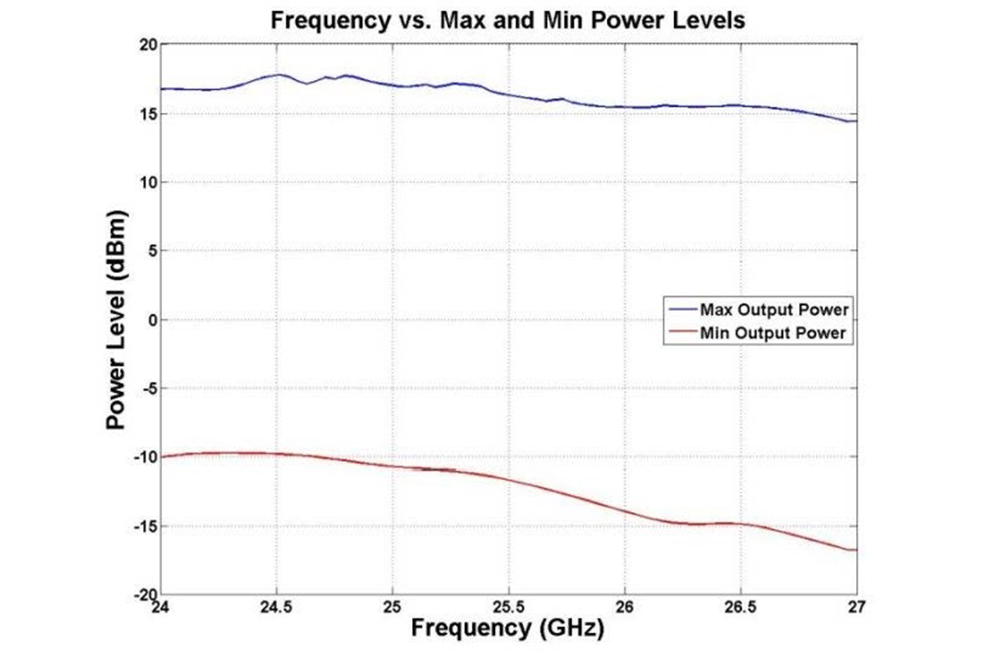

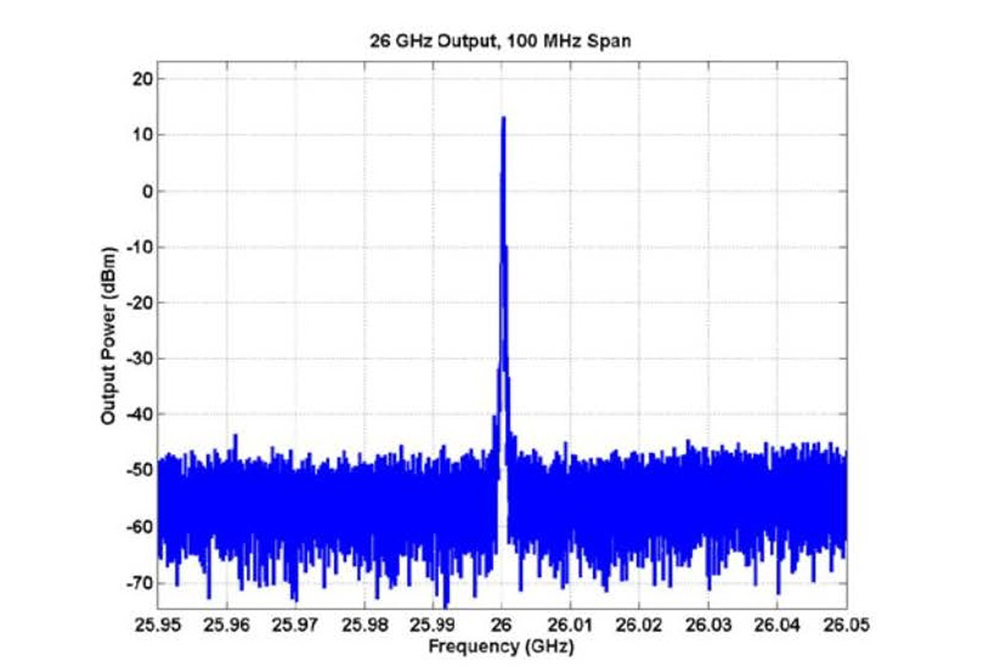

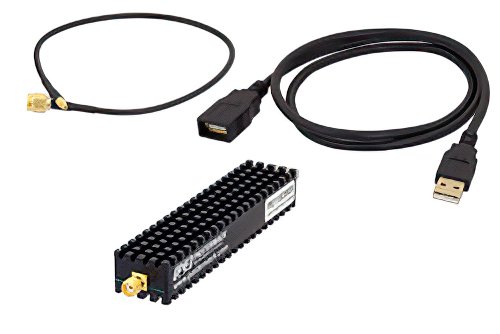

USB Frequency Synthesizer Module, Phase Locked Loop (PLL), 24 GHz to 27 GHz Output, SMA   PE11S3905

24 to 27

+17

0-31

1

-75

-22

20 to 100

+5 to +15
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 24 GHz to 27 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 24 GHz to 27 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 24 GHz to 27 GHz Output, SMA
  • descrUSB Frequency Synthesizer Module, Phase Locked Loop (PLL), 24 GHz to 27 GHz Output, SMA


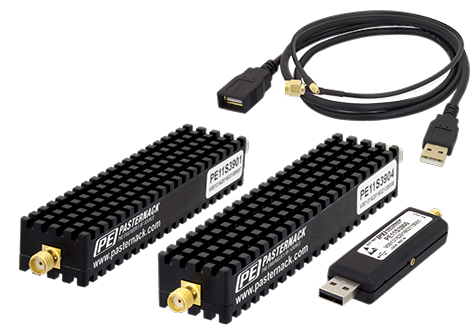

USB Controlled PLL Frequency Synthesizers from Pasternack

Pasternack’s PLL frequency synthesizers cover a broad range of frequency bands from 25 MHz to 27 GHz.  The compact and rugged SMA-connectorized PLL frequency synthesizer designs support a USB 2.0 interface with a PC computer that supplies DC power and GUI command control. USB controlled PLL frequency sythesizer models offer high output power levels that range from +10 dBm to +19 dBm typical, and output attenuation is adjustable up to 50 dB in 1 dB steps.

Phase locked frequency sysnthesizer speed is 1 msec typical. Phase noise of these PLL sythesizers is as low as -108 dBc/Hz at 100 MHz offset. Additional sythesizer features include a 50 MHz internal frequency source and optional external reference with supplied cable.

Frequency resolution can be adjusted using either Integer (default) or fractional modes with resolution to a step size down to 1 MHz. PLL freq. sythesizer modules support functional LED indicators that confirm a USB connection, phase locking and unlocking, and RF power disable. All models are RoHS and Reach compliant and are classified as EAR99. A comprehensive phased lock loop frequency sythesizer user manual and VISA compliant software package can be downloaded from the Pasternack website.

Pasternack’s USB-controlled PLL synthesizers are in-stock and ready for immediate shipment.
