  • Frequency range of 5.85 GHz to 50 GHz in 10 waveguide
    bands (WR-137 to WR-22.)
  • Available in lengths from 6 to 36 inches
  • Flexible/twistable neoprene sleeve
  • VSWR as low as 1.05:1
  • Insertion loss as low as 0.06 dB

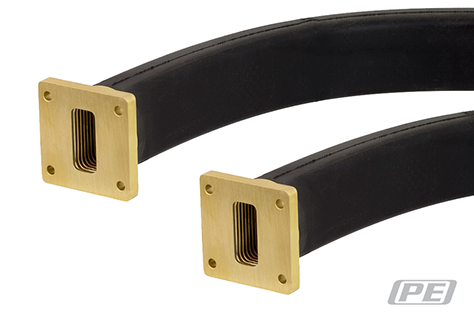

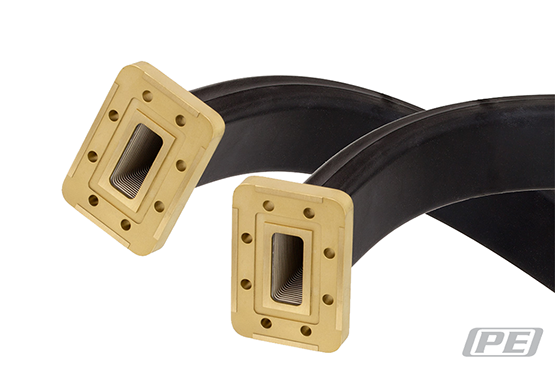

Twistable and Seamless Flexible Waveguides from Pasternack

Flexible Waveguides from Pasternack

These new flexible waveguide products from Pasternack act as a malleable conduit in waveguide systems where there is not perfect alignment for a traditional rigid waveguide section. Often an ideal solution for test labs or prototyping, these flexible waveguide sections can easily be flexed and twisted to conform to various misalignments in waveguide systems. Flexible waveguide, also referred to as a “flexguide”, utilizes helically wound silver coated brass strips surrounded by a flexible and twistable, yet durable, neoprene sleeve. The ends of the flexguide flexible waveguide are terminated with brass flanges available in nine waveguide sizes and multiple flange styles as well as “twist” varieties. Typical VSWR for these flexible/twist waveguides range from 1.05:1 up to 1.35:1 depending on waveguide size and frequency, the insertion loss performance is similar with typical levels as low as 0.06 dB. These waveguides will flex in both the E and H planes and some also twist. Flexible waveguide in lower frequency versions are available in both UG and CPR style flanges.
