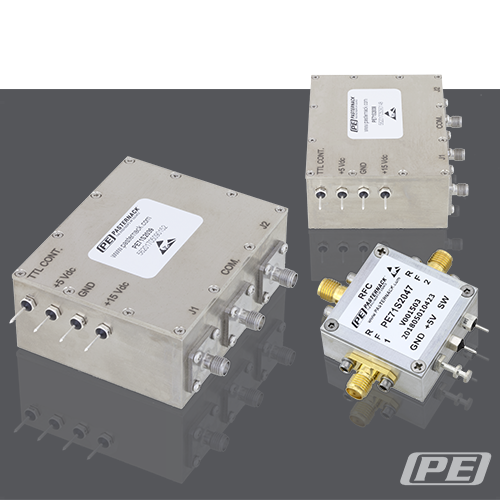

High Power PIN Diode RF Switches

High Power PIN Diode RF Switches

High Power PIN Diode RF Switches series

is in stock and ships same-day

  •  PIN Diode switch frequency coverage from 20 MHz to 2700 MHz
  •  Single Pole Double Throw (SPDT) 50 Ohm Reflective Designs
  •  Input CW power handling (Hot Switching) up to 150 watts
  •  High Isolation up to 75 dB typical
  •  Integrated TTL compatible driver logic circuitry
  •  Rugged package designs support SMA female Connectors
  •  All models have an EAR99 export classification


Part No.
additional views

Frequency

Band

(MHz)

Typical
Insertion
Loss (dB)

Typical

Isolation

(dB)

Typical

VSWR

Max Switching

Speed

(µsec)

Max Operating

(Cold Switching) CW
Input Power (Watts)

Max Operating
(Hot Switching) CW
Input Power (Watts)

Max Operaing Peak

Power (1 µsec Pulse)

(Watts)

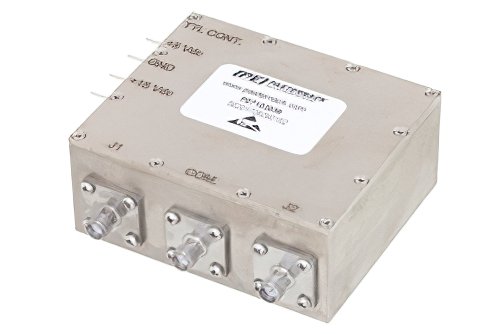

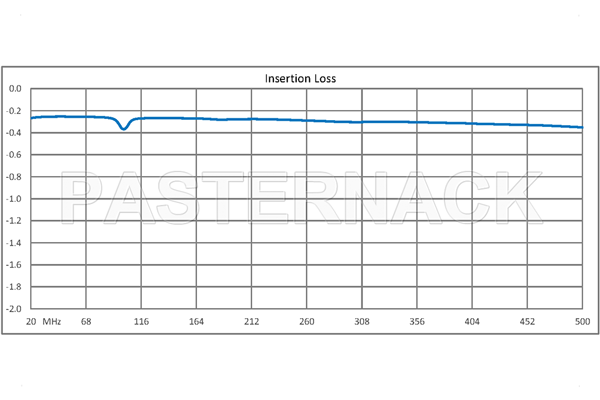

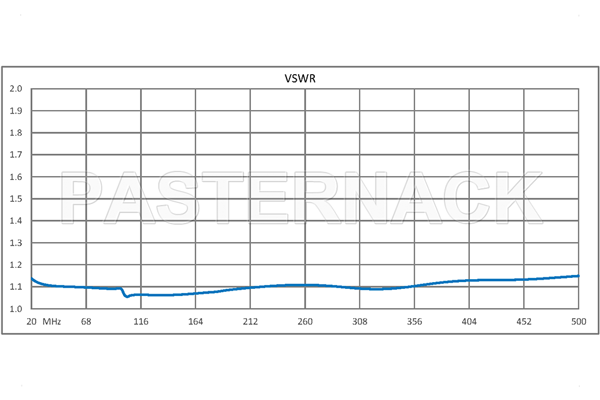

SPDT PIN Diode Switch Operating From 20 MHz to 500 MHz Up to 150 Watts (+51.8 dBm) and SMA   PE71S2039

20 to 500

0.3

60

1.1:1

40

- - -

150

- - -


  • descrSPDT PIN Diode Switch Operating From 20 MHz to 500 MHz Up to 150 Watts (+51.8 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 20 MHz to 500 MHz Up to 150 Watts (+51.8 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 20 MHz to 500 MHz Up to 150 Watts (+51.8 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 20 MHz to 500 MHz Up to 150 Watts (+51.8 dBm) and SMA

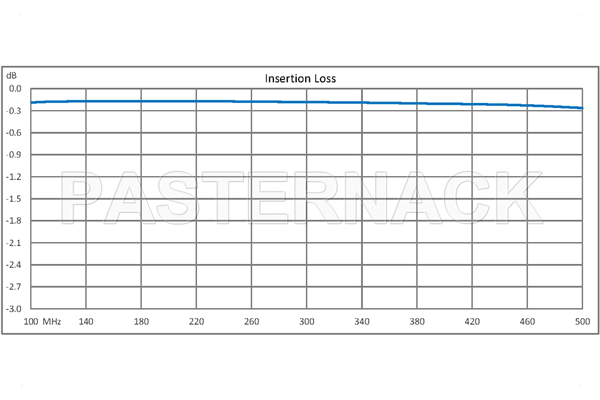

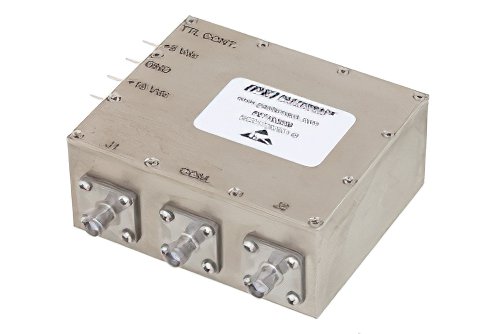

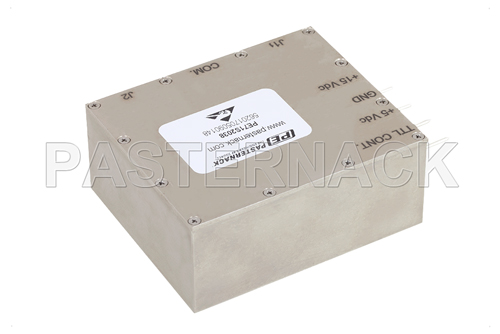

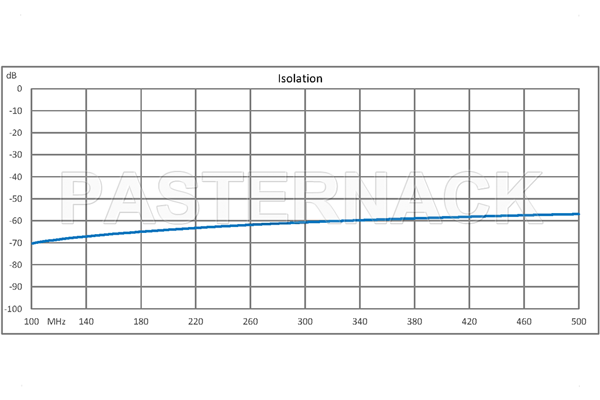

SPDT PIN Diode Switch Operating From 100 MHz to 500 MHz Up to 250 Watts (+54 dBm) and SMA   PE71S2038

100 to 500

0.2

73

1.1:1

40

250

100

500


  • descrSPDT PIN Diode Switch Operating From 100 MHz to 500 MHz Up to 250 Watts (+54 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 100 MHz to 500 MHz Up to 250 Watts (+54 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 100 MHz to 500 MHz Up to 250 Watts (+54 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 100 MHz to 500 MHz Up to 250 Watts (+54 dBm) and SMA

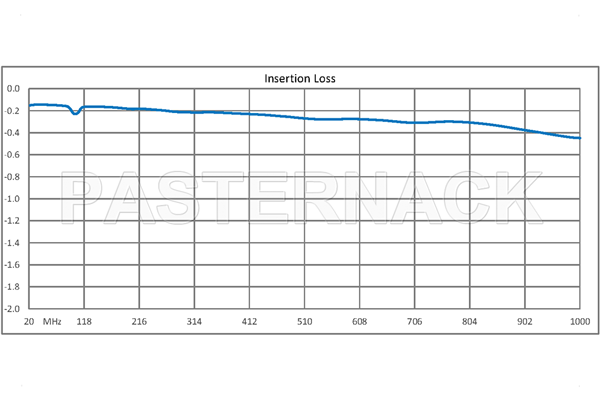

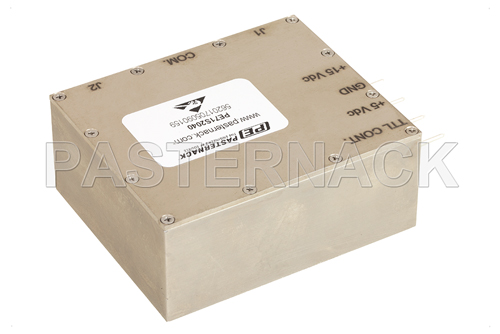

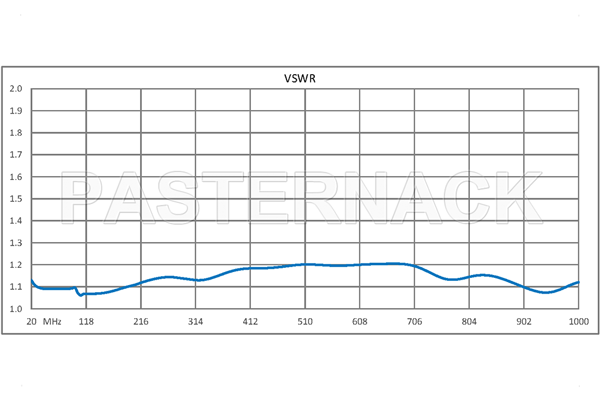

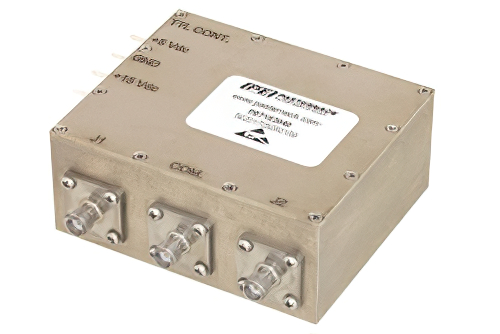

SPDT PIN Diode Switch Operating From 20 MHz to 1,000 MHz Up to 150 Watts (+51.8 dBm) and SMA   PE71S2040

20 to 1000

0.3

60

1.1:1

40

150

50

- - -


  • descrSPDT PIN Diode Switch Operating From 20 MHz to 1,000 MHz Up to 150 Watts (+51.8 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 20 MHz to 1,000 MHz Up to 150 Watts (+51.8 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 20 MHz to 1,000 MHz Up to 150 Watts (+51.8 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 20 MHz to 1,000 MHz Up to 150 Watts (+51.8 dBm) and SMA

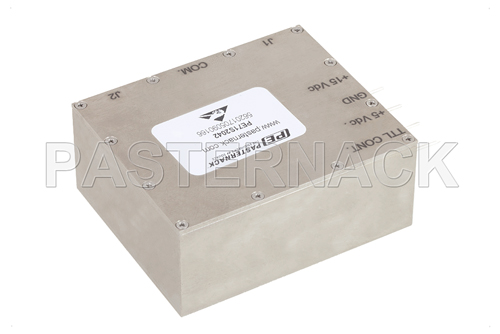

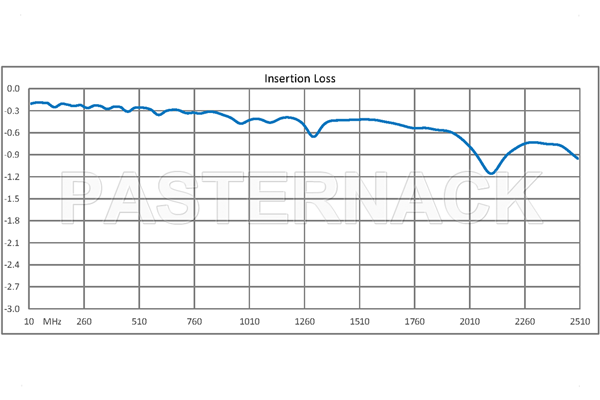

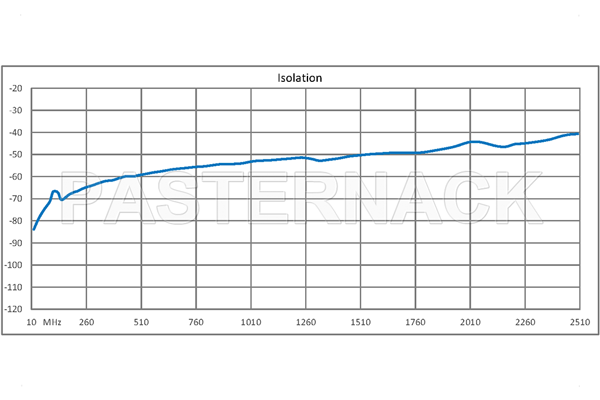

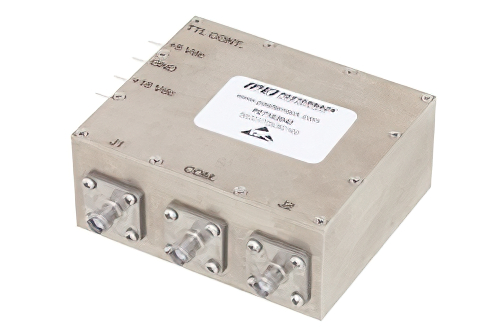

SPDT PIN Diode Switch Operating From 20 MHz to 2.5 GHz Up to 25 Watts (+44 dBm) and SMA   PE71S2042

20 to 2500

0.5

50

1.2:1

10

- - -

20

200


  • descrSPDT PIN Diode Switch Operating From 20 MHz to 2.5 GHz Up to 25 Watts (+44 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 20 MHz to 2.5 GHz Up to 25 Watts (+44 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 20 MHz to 2.5 GHz Up to 25 Watts (+44 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating From 20 MHz to 2.5 GHz Up to 25 Watts (+44 dBm) and SMA

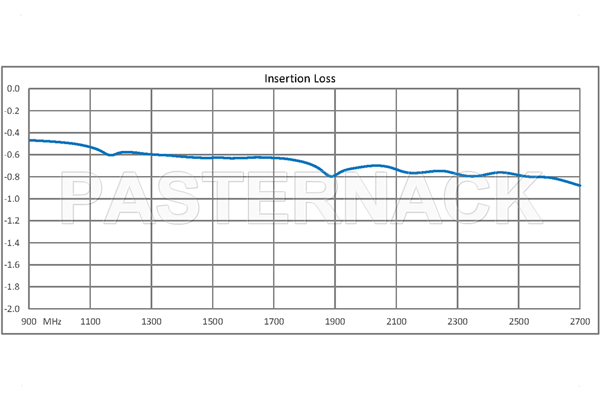

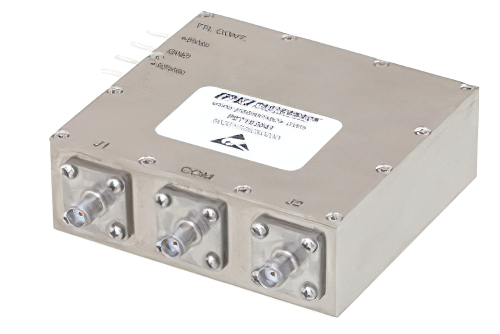

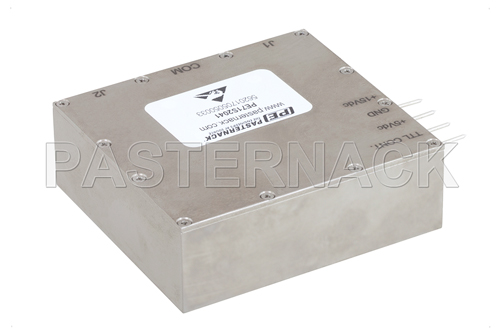

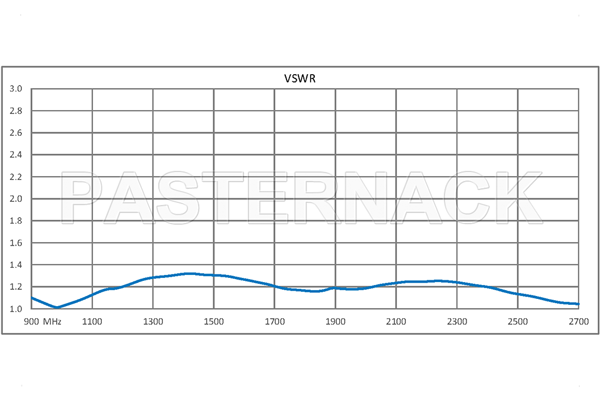

Absorptive SPDT PIN Diode Switch Operating From 800 MHz to 2.7 GHz Up to 100 Watts (+50 dBm) and SMA   PE71S2041

800 to 2700

0.7

75

1.2:1

6

100

30

- - -


  • descrAbsorptive SPDT PIN Diode Switch Operating From 800 MHz to 2.7 GHz Up to 100 Watts (+50 dBm) and SMA
  • descrAbsorptive SPDT PIN Diode Switch Operating From 800 MHz to 2.7 GHz Up to 100 Watts (+50 dBm) and SMA
  • descrAbsorptive SPDT PIN Diode Switch Operating From 800 MHz to 2.7 GHz Up to 100 Watts (+50 dBm) and SMA
  • descrAbsorptive SPDT PIN Diode Switch Operating From 800 MHz to 2.7 GHz Up to 100 Watts (+50 dBm) and SMA

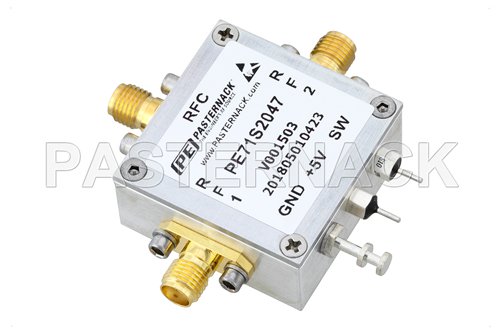

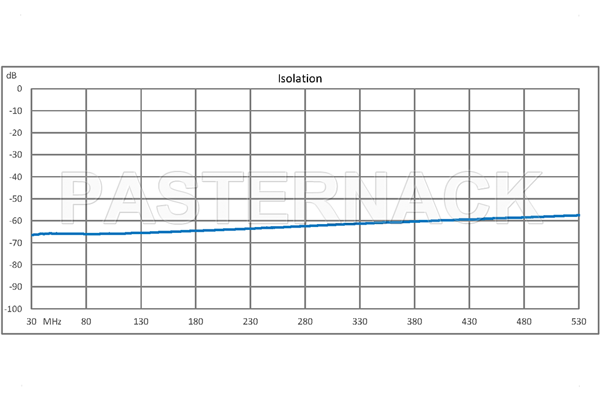

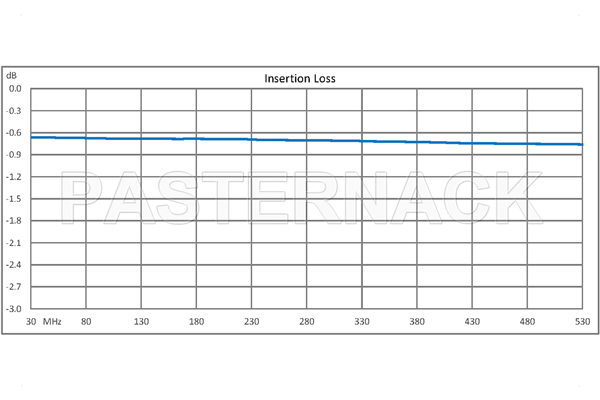

SPDT PIN Diode Switch Operating from 30 MHz to 530 MHz Up to 5 Watts (+37 dBm) and SMA   PE71S2047

30 to 530

0.6

60

1.2:1

0.15

- - -

5

- - -


  • descrSPDT PIN Diode Switch Operating from 30 MHz to 530 MHz Up to 5 Watts (+37 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating from 30 MHz to 530 MHz Up to 5 Watts (+37 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating from 30 MHz to 530 MHz Up to 5 Watts (+37 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating from 30 MHz to 530 MHz Up to 5 Watts (+37 dBm) and SMA

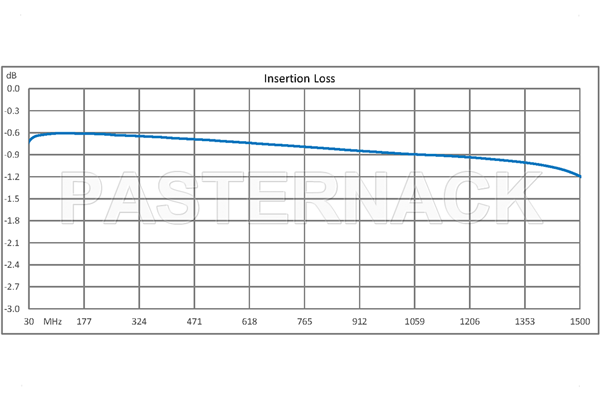

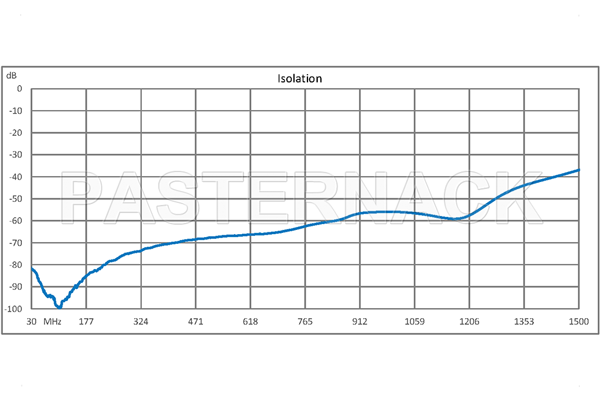

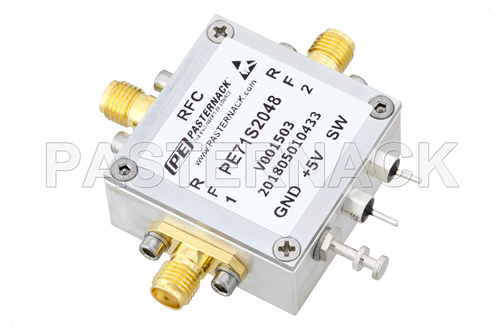

SPDT PIN Diode Switch Operating from 50 MHz to 1.5 GHz Up to 4 Watts (+36 dBm) and SMA   PE71S2048

50 to 1500

0.8

60

1.2:1

0.15

- - -

4

- - -


  • descrSPDT PIN Diode Switch Operating from 50 MHz to 1.5 GHz Up to 4 Watts (+36 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating from 50 MHz to 1.5 GHz Up to 4 Watts (+36 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating from 50 MHz to 1.5 GHz Up to 4 Watts (+36 dBm) and SMA
  • descrSPDT PIN Diode Switch Operating from 50 MHz to 1.5 GHz Up to 4 Watts (+36 dBm) and SMA


High Power PIN Diode RF Switches from Pasternack

Pasternack’s SPDT high power PIN diode RF Switches offer desirable performance for transmit and receive signal routing applications with input CW power handling (hot switching) capability up to 150 Watts and high Isolation levels up to 75 dB typical.  Frequency coverage ranges from 20 MHz up to 2700 MHz.

These SPDT high power PIN diode switches offer excellent power handling and isolation with broadband performance and fast switching speed.  Ideal for transmit and receive applications, these solid state PIN diode switches are desirable when connecting from an antenna to a receiver or a transmitter with frequent change overs.

Typical applications involve use in Radar systems, EW applications, Base Station Infrastructure, Repeaters, Military/Microwave Radios, Public Safety/Land Mobile Radios, UHF/VHF Radios, and Test & Measurement applications.

Pasternack’s high power PIN diode switches are in stock and available to ship immediately
