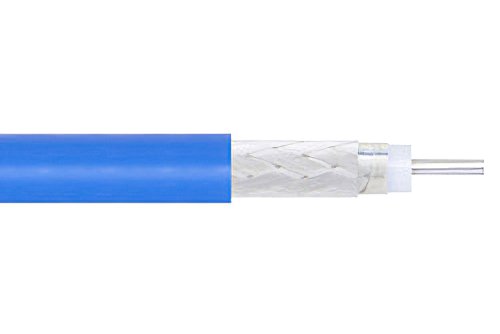

Flexible PE-P047 Coax Cable Double Shielded with Blue FEP Jacket
Product ID:
PE-P047
Pricing
| Quantity (Feet) | Price |
| 1-24 | $20.49 |
| 25-49 | $19.47 |
| 50-99 | $18.44 |
| 100-249 | $17.62 |
| 250+ | Call Us |
* All Prices are in US Dollars and do not include duties.
* Quantity selected indicates total length of bulk cable
(i.e. inputing 10 indicates a 10 foot section),
Contact us for alternate requirements.
* Contact us for different unit of measure(inches,meters, etc.) requirements.
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties.
* Quantity selected indicates total length of bulk cable
(i.e. inputing 10 indicates a 10 foot section),
Contact us for alternate requirements.
* Contact us for different unit of measure(inches,meters, etc.) requirements.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | Version of 047 Semi-rigid |
| Flex Type | Flexible |
| Impedance | 50 Ohm |
| Dielectric Type | FEP |
| Velocity of Propagation | 70 % |
| Jacket Diameter | 0.056 in |
| Jacket Material | FEP |
| No. of Shields | 2 |
| Attenuation at 1 Ghz. | 35 dB |
| Power, Max at 1 Ghz. | 43 Watts |
| RF Shielding | 90 dB |
| Frequency, Max | 50 GHz |
| Max Operating Temperature | 165 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 0.2 in |
| Minimum Bend Radius, Repeated | 0.4 in |
| Coax Type | Coax |
Description
Flexible PE-P047 Coax Cable Double Shielded with Blue FEP Jacket
PE-P047 part number from Pasternack is a Version of 047 Semi-rigid coax cable that is flexible. Pasternack PE-P047 flexible coax cable is 50 Ohm and has a FEP dielectric. Our PE-P047 coax is constructed with a 0.056 jacket made of FEP. PE-P047 coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this Pasternack cable is 50 GHz. PE-P047 coax cable has an attenuation at 1 GHz of 35 dB and a maximum power of 43 watts at 1 GHz.
Pasternack Version of 047 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-P047 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-P047 or other coax can be built and shipped same day as well.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
