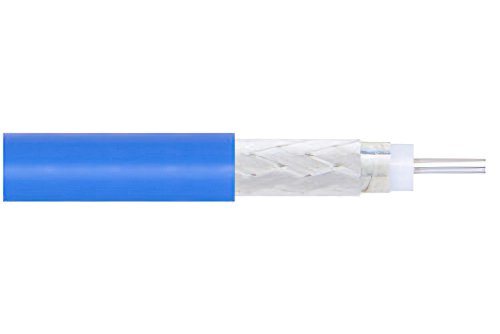

Flexible PE-P086 Coax Cable Double Shielded with Blue FEP Jacket
Product ID:
PE-P086
Pricing
| Quantity (Feet) | Price |
| 1-24 | $14.99 |
| 25-49 | $14.24 |
| 50-99 | $13.49 |
| 100-249 | $12.89 |
| 250+ | Call Us |
* All Prices are in US Dollars and do not include duties.
* Quantity selected indicates total length of bulk cable
(i.e. inputing 10 indicates a 10 foot section),
Contact us for alternate requirements.
* Contact us for different unit of measure(inches,meters, etc.) requirements.
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties.
* Quantity selected indicates total length of bulk cable
(i.e. inputing 10 indicates a 10 foot section),
Contact us for alternate requirements.
* Contact us for different unit of measure(inches,meters, etc.) requirements.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | Version of 086 Semi-rigid |
| Flex Type | Flexible |
| Impedance | 50 Ohm |
| Dielectric Type | PTFE |
| Velocity of Propagation | 70 % |
| Jacket Diameter | 0.104 in |
| Jacket Material | FEP |
| No. of Shields | 2 |
| Attenuation at 1 Ghz. | 21.7 dB |
| RF Shielding | 110 dB |
| Frequency, Max | 18 GHz |
| Max Operating Temperature | 200 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, Repeated | 0.5 in |
| Coax Type | Coax |
Description
Flexible PE-P086 Coax Cable Double Shielded with Blue FEP Jacket
PE-P086 part number from Pasternack is a Version of 086 Semi-rigid coax cable that is flexible. Pasternack PE-P086 flexible coax cable is 50 Ohm and has a PTFE dielectric. Our PE-P086 coax is constructed with a 0.104 jacket made of FEP. PE-P086 coax has a shield count of 2, a RF shielding of 110 dB and the maximum frequency for this Pasternack cable is 18 GHz. PE-P086 coax cable has an attenuation at 1 GHz of 21.7 dB.
Pasternack Version of 086 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-P086 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-P086 or other coax can be built and shipped same day as well.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
