Push-On SMP Female Right Angle to TNC Female Low Loss Cable Using LMR-100 Coax

Product ID: PE3W09287

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	SMP
Connector 1 Gender	Female
Connector 1 Polarity	Standard
Connector Angle 1	Right Angle
Connector 1 Impedance	50 Ohm
Connector 2 Series	TNC
Connector 2 Gender	Female
Connector 2 Polarity	Standard
Connector Angle 2	Straight
Connector 2 Impedance	50 Ohm
Connector 1 Body Material	Brass
Connector 1 Body Plating	Gold
RF Cable Part Number	LMR-100A-PVC
RF Cable Type	LMR-100A
RF Cable Impedance	50 Ohm

Description

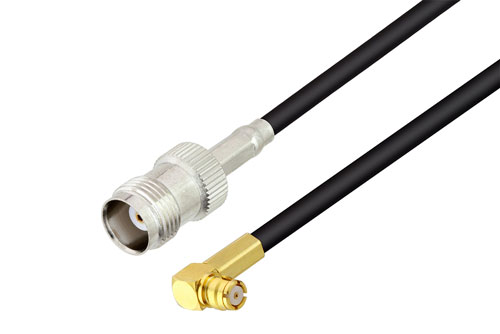

Push-On SMP Female Right Angle to TNC Female Low Loss Cable Using LMR-100 Coax

Radio frequency assembly push-on SMP female right angle to TNC female low loss cable using LMR-100 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The Push-on SMP female right angle to TNC female low loss cable using LMR-100 coax, SMP cable like our other Pasternack coaxial cable assemblies, will ship the same day and any custom SMP to TNC cable assembly orders will ship same day as well.

Pasternack RF coax low loss cable assembly is built with right angle SMP cable connection on one end and TNC cable connection on the other. Our low loss right angle SMP to TNC cable assemblies have a female gender on end 1 and female on end 2. PE3W09287 can also be known as a low loss right angle SMP jack to TNC jack cable assembly and will be shipped same-day as it is purchased.

SMP jack to TNC jack cable assembly PE3W09287 is built with LMR-100A which is a flexible coax type. The Pasternack flexible SMP cable assembly is manufactured with right angle SMP to TNC cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this SMP right angle female to TNC female cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3W09287 can also be used in the other direction and will be TNC female to right angle SMP female cable assembly if the opposite connectivity is required.

Low loss SMP right angle jack to TNC jack cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality SMP to TNC cable assembly for quick shipment worldwide. Variations of SMP cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this push-on SMP female right angle to TNC female low loss cable using LMR-100 coax.
