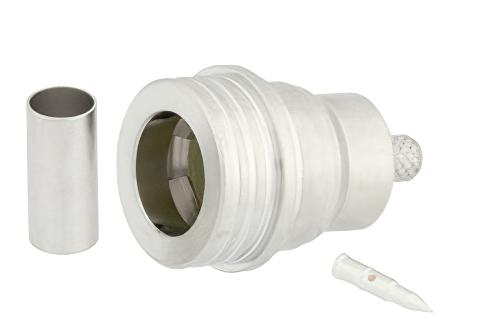

QN Male Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223, RG400

Product ID: PE44978

Pricing

QuantityPrice
1-24$35.29
25-49$33.53
50-99$31.76
100-249$30.35
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 144
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesQN
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency6 GHz
Interface Type 1RG55
Interface Type 2RG141
Interface Type 3RG142
Interface Type 4RG223
Interface Type 5RG400

Description

QN Male Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223, RG400

PE44978 QN male coaxial connector has an interface type of RG55, RG141, RG142, RG223, RG400 and a 50 Ohm impedance. Pasternack QN male connector uses shield/contact crimp/solder as an attachment method. Our male QN coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack QN male coaxial connector has a PTFE dielectric type and a VSWR of 1.2. The Pasternack QN coaxial connector has a brass body with silver plating. Our PE44978 QN connector uses brass contact and a nickel plating material. This QN male coaxial RF connector is REACH compliant.

This Pasternack male QN connector will ship the same day as purchased. Our QN male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom QN connector cable assemblies that will ship the same day as well.
