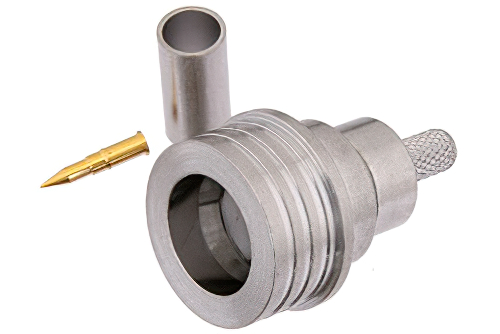

QN Male Connector Crimp/Solder Attachment For RG58, RG141, RG303

Product ID: PE44596
Product discontinued.
Replaced with PE45071.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesQN
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency11 GHz
Interface Type 1RG58
Interface Type 2RG141
Interface Type 3RG303

Description

QN Male Connector Crimp/Solder Attachment For RG58, RG141, RG303

PE44596 QN male coaxial connector has an interface type of RG58, RG141, RG303 and a 50 Ohm impedance. Pasternack QN male connector uses shield/contact crimp/solder as an attachment method. Our male QN coaxial connector provides a minimum frequency of DC and a maximum frequency of 11 GHz.

The Pasternack QN male coaxial connector has a PTFE dielectric type. The Pasternack QN coaxial connector has a brass body with tri-metal plating. Our PE44596 QN connector uses brass contact. This QN male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male QN connector will ship the same day as purchased. Our QN male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom QN connector cable assemblies that will ship the same day as well.
