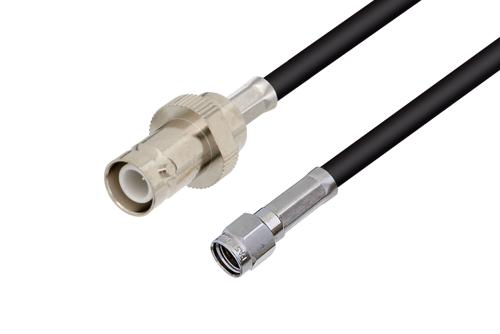

Radio frequency assembly reverse polarity SMA male to reverse polarity BNC female cable using RG58 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The reverse polarity SMA male to reverse polarity BNC female cable using RG58 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to BNC cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a reverse polarity SMA cable connection on one end and a reverse polarity BNC cable connection on the other. Our reverse polarity SMA to reverse polarity BNC cable assembly has a male gender on end 1 and a female on end 2. PE3C0070 can also be known as a reverse polarity SMA plug to reverse polarity BNC jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PE dielectric type.
The minimum bend radius for this cable is 2 inches, allowing for a single bend without damaging the cable. Our PE3C0070 RF cable has a PVC (NC) jacket of 0.195-inch diameter. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 65.9% and a minimum RF shielding of 45 dB.
Reverse polarity SMA plug to reverse polarity BNC jack cable assembly PE3C0070 is built with RG58 which is a flexible coax type. The Pasternack flexible reverse polarity SMA cable assembly is manufactured with SMA to BNC cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C0070 can also be used in the other direction and will be a reverse polarity BNC female to reverse polarity SMA male cable assembly if the opposite connectivity is required.
SMA reverse polarity plug to BNC reverse polarity jack cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to BNC cable assembly for quick shipment worldwide. Variations of SMA and BNC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to BNC RF cable assembly as per your requirements.
