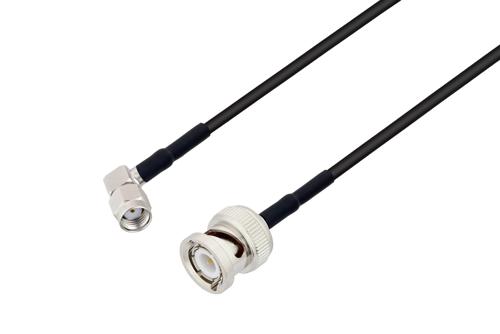

Radio frequency assembly reverse polarity SMA plug right angle to BNC male cable using RG174 coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The reverse polarity SMA plug right angle to BNC male cable using RG174 coax with heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to BNC cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a right angle reverse polarity SMA cable connection on one end and a BNC cable connection on the other. Our right angle reverse polarity SMA to BNC cable assembly has a plug gender on end 1 and a male on end 2. PE3W01511/HS can also be known as a right angle reverse polarity SMA male to BNC plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PE dielectric type.
Our PE3W01511/HS RF cable has a PVC jacket of 0.110-inch diameter. The flexible RF cable has a between series connection.
Reverse polarity SMA male to BNC plug cable assembly PE3W01511/HS is built with RG174 which is a flexible coax type. The Pasternack flexible reverse polarity SMA cable assembly is manufactured with right angle SMA to BNC cable connectors, has a 50 Ohm impedance, and is single shielded. One connector features the crimp/solder attachment method and a brass body with nickel plating, while the other has the crimp/crimp attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W01511/HS can also be used in the other direction and will be a BNC male to right angle reverse polarity SMA plug cable assembly if the opposite connectivity is required.
SMA reverse polarity right angle male to BNC plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to BNC cable assembly for quick shipment worldwide. Variations of SMA and BNC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to BNC RF cable assembly as per your requirements.
