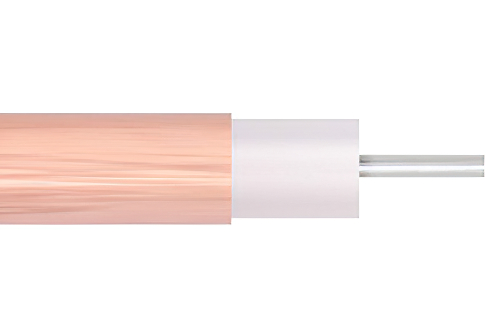

75 Ohm 141 Semi-rigid Coax Cable with Copper Outer Conductor
Product ID:
PE-SR402-75
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | 141 Semi-rigid |
| Flex Type | Semi-Rigid |
| Impedance | 75 Ohm |
| Dielectric Type | PTFE |
| No. of Shields | 1 |
| Attenuation at 1 Ghz. | 12.5 dB |
| Power, Max at 1 Ghz. | 280 Watts |
| Frequency, Max | 36 GHz |
| Max Operating Temperature | 200 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 0.1 in |
| Coax Type | Coax |
Description
75 Ohm 141 Semi-rigid Coax Cable with Copper Outer Conductor
PE-SR402-75 part number from Pasternack is a 141 Semi-rigid coax cable that is semi-rigid. Pasternack PE-SR402-75 semi-rigid coax cable is 75 Ohm and has a PTFE dielectric.PE-SR402-75 coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 36 GHz. PE-SR402-75 coax cable has an attenuation at 1 GHz of 12.5 dB and a maximum power of 280 watts at 1 GHz.
Pasternack 141 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-SR402-75 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-SR402-75 or other coax can be built and shipped same day as well.
