SMA Male to FAKRA Jack Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male to Water Blue FAKRA Jack Cable Using PE-C100-LSZH Coax

Product ID: PE39347Z

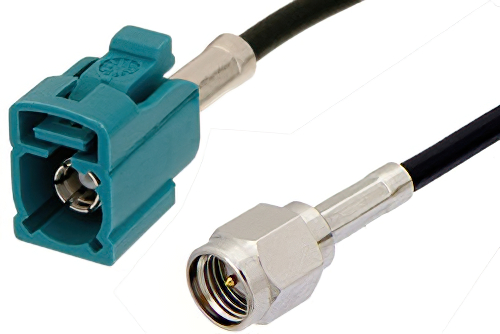

SMA Male to Water Blue FAKRA Jack Cable Using PE-C100-LSZH Coax

Image Views:  SMA Male to Water Blue FAKRA Jack Cable Using PE-C100-LSZH Coax high resolution
Zoom


Click for:PE39347Z Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2FAKRA
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-C100-LSZH
RF Cable TypePE-C100-LSZH
RF Cable Impedance50


SMA Male to Water Blue FAKRA Jack Cable Using PE-C100-LSZH Coax

PE39347Z is a SMA male to FAKRA jack cable using PE-C100-LSZH coax. This Pasternack SMA male to FAKRA jack cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm FAKRA for connector 2.

Our male SMA to jack FAKRA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE39347Z SMA male to FAKRA jack cable assembly is constructed with PE-C100-LSZH coax and the maximum VSWR is 1.4:1.
