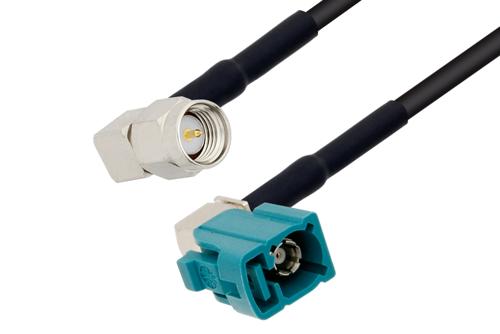

Pasternack’s PE3W15913/HS right angle SMA male to right angle FAKRA jack RF cable assembly using RG174 coax is part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. These coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMA male to FAKRA jack cable, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to FAKRA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a right angle SMA cable connection on one end and a right angle FAKRA cable connection on the other. Our SMA to FAKRA cable assembly has a male gender on end 1 and a jack on end 2. PE3W15913/HS can also be known as a right angle SMA plug to right angle FAKRA female cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable’s inner conducting material and PE dielectric type.
Our PE3W15913/HS RF cable has a pvc jacket of 0.110-inch diameter. The flexible RF cable has a between series connection. Our right angle SMA male to right angle FAKRA jack cable has a maximum VSWR of 1.4:1.
This PE3W15913/HS SMA plug to FAKRA female cable assembly is built with RG174, which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with right angle SMA to right angle FAKRA cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a crimp/solder attachment method. Additional dimensions, specifications, and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W15913/HS can also be used in the other direction and will be a right angle FAKRA jack to right angle SMA male cable assembly if the opposite connectivity is required.
This SMA right angle plug to FAKRA right angle female cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to FAKRA cable assembly for quick shipment worldwide. Variations of SMA and FAKRA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High-quality custom RF cable assembly products for microwave and millimeter wave radio transmitters, receivers, antenna jumpers, component interconnections, RF test and measurement labs, military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment, and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to FAKRA RF cable assembly as per your requirements.
