SMA Male Right Angle to SMB Plug Cable Using RG174 Coax

Product ID: PE33482

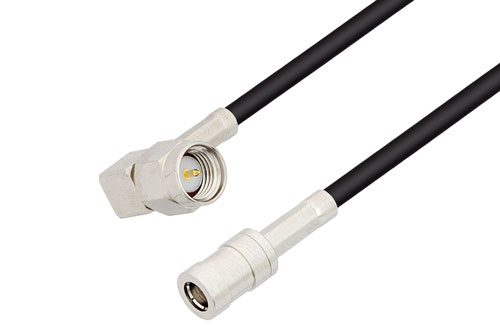

SMA Male Right Angle to SMB Plug Cable Using RG174 Coax

Image Views:  SMA Male Right Angle to SMB Plug Cable Using RG174 Coax high resolution
Zoom


Click for:PE33482 Datasheet
Click for:PE33482 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMB
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50


SMA Male Right Angle to SMB Plug Cable Using RG174 Coax

PE33482 is a SMA male right angle to SMB plug cable using RG174 coax. This Pasternack SMA male right angle to SMB plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMB for connector 2. SMA right angle to SMB coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to plug SMB cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE33482 SMA male right angle to SMB plug cable assembly is constructed with RG174 coax and the maximum VSWR is 1.4:1.
