SMC Plug to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

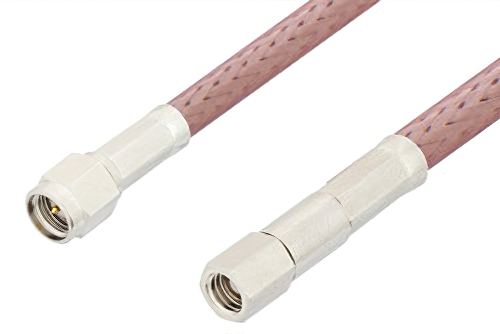

SMA Male to SMC Plug Cable Using RG142 Coax, RoHS

Product ID: PE3214LF
SMA Male to SMC Plug Cable Using RG142 Coax, RoHS

Image Views:  SMA Male to SMC Plug Cable Using RG142 Coax, RoHS high resolution
Zoom


Click for:PE3214LF Datasheet
Click for:PE3214LF RoHS Cert
DISCONTINUED PRODUCT
Replaced By: PE3C4745
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG142B/U
RF Cable TypeRG142
RF Cable Impedance50


SMA Male to SMC Plug Cable Using RG142 Coax, RoHS

PE3214LF is a SMA male to SMC plug cable using RG142 coax. This Pasternack SMA male to SMC plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMC for connector 2.

Our male SMA to plug SMC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3214LF SMA male to SMC plug cable assembly is constructed with RG142 coax.
