SMC Plug to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

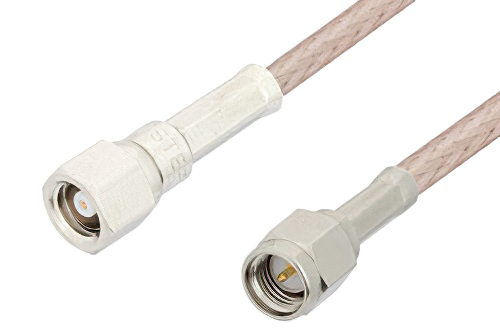

SMA Male to SMC Plug Cable Using RG316-DS Coax

Product ID: PE34456
SMA Male to SMC Plug Cable Using RG316-DS Coax

Image Views:  SMA Male to SMC Plug Cable Using RG316-DS Coax high resolution
Zoom


Click for:PE34456 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50


SMA Male to SMC Plug Cable Using RG316-DS Coax

PE34456 is a SMA male to SMC plug cable using RG316-DS coax. This Pasternack SMA male to SMC plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMC for connector 2.

Our male SMA to plug SMC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34456 SMA male to SMC plug cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
