SMA Male to SMC Plug Cable Using RG316 Coax, RoHS

Product ID: PE3809LF
SMA Male to SMC Plug Cable Using RG316 Coax, RoHS

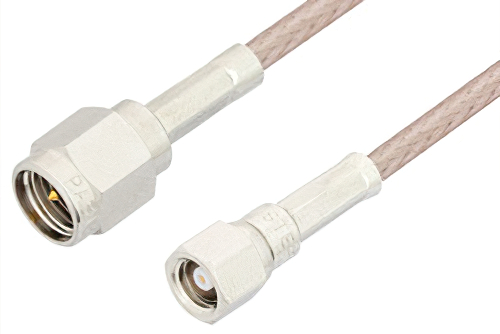

Image Views:  SMA Male to SMC Plug Cable Using RG316 Coax, RoHS high resolution
Zoom


Click for:PE3809LF Datasheet
Click for:PE3809LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50


SMA Male to SMC Plug Cable Using RG316 Coax, RoHS

PE3809LF is a SMA male to SMC plug cable using RG316 coax. This Pasternack SMA male to SMC plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMC for connector 2.

Our male SMA to plug SMC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3809LF SMA male to SMC plug cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
