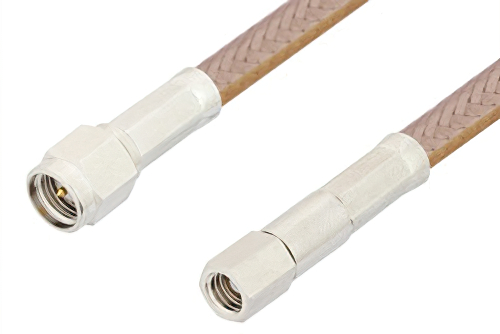

SMA Male to SMC Plug Cable 6 Inch Length Using RG400 Coax

Product ID: PE34454-6

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$73.49
25-49$69.82
50-99$66.14
100-249$63.20
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 32
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG400/U
RF Cable TypeRG400
RF Cable Impedance50 Ohm
Length6 inches

Description

SMA Male to SMC Plug Cable 6 Inch Length Using RG400 Coax

The PE34454-6 is a SMA male to SMC plug cable designed for between-series RF interconnects, offering 50 Ohm impedance on RG400/U coax. It links SMA and SMC interfaces in RF and electronic systems that need a flexible cable assembly for standard straight connections. Brass connector bodies and a PTFE cable dielectric support reliable signal transfer, while the FEP jacket suits demanding bench and integration work.

Pasternack RF coax cable assembly is built with SMA cable connection on one end and SMC cable connection on the other. Our SMA to SMC cable assemblies have a male gender on end 1 and plug on end 2. This SMA to SMC cable is a male to plug coax assembly, PE34454-6, can also be known as a SMA plug to SMC male cable assembly and will be shipped same-day as it is purchased.

SMA plug to SMC male cable assembly PE34454-6 is built with RG400 which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to SMC cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this SMA male to SMC plug cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE34454-6 can also be used in the other direction and will be SMC plug to SMA male cable assembly if the opposite connectivity is required.

SMA plug to SMC male cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality SMA to SMC cable assembly for quick shipment worldwide. Variations of SMA cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this SMA male to SMC plug cable 6 inch length using RG400 coax.

Frequently Asked Questions

What is the PE34454-6 RF cable assembly used for?

The PE34454-6 is a between-series RF cable assembly that connects an SMA male interface to an SMC plug interface. It uses RG400/U flexible coax, 50 Ohm impedance, straight connectors, and an FEP jacket for standard RF interconnect tasks. Engineers use it when one device has an SMA port and the mating device requires an SMC connection. This helps simplify bench wiring, prototype builds, and embedded electronics assemblies that mix common connector series.

When would I use an SMA male to SMC plug cable instead of adapters?

The PE34454-6 is useful when equipment needs physical separation that a rigid adapter cannot provide between SMA and SMC interfaces. It combines straight connector ends, flexible RG400/U coax, and 50 Ohm construction in a single cable assembly. Engineers often choose this format in test setups, enclosed assemblies, and routed interconnect paths with limited mechanical clearance. A flexible cable can also reduce stress on ports compared with stacking multiple rigid adapter components.

Is the PE34454-6 suitable for general RF and electronics integration?

The PE34454-6 is designed for general RF and electronic system integration where mixed connector interfaces must be connected cleanly. Its standard SMA male end, standard SMC plug end, and 50 Ohm RG400/U coax support common integration needs. Engineers can use it in prototypes, subsystem connections, and lab configurations that require a flexible between-series cable. The FEP jacket and PTFE cable dielectric also make it a practical choice for repeated handling in technical environments.

What makes RG400/U a practical cable choice in the PE34454-6 assembly?

The PE34454-6 uses RG400/U coax because it provides a flexible 50 Ohm cable platform for routine RF interconnect applications. This assembly pairs that cable with straight SMA and SMC connectors, a PTFE cable dielectric, and an FEP jacket. Engineers benefit from easier routing when linking separated ports inside equipment, across benches, or within prototype systems. That combination makes the cable useful when mechanical flexibility matters as much as connector compatibility in a design.
