TNC Male Right Angle to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male to TNC Male Right Angle Low Loss Cable Using PE-P142LL Coax, RoHS

Product ID: PE3C0780
SMA Male to TNC Male Right Angle Low Loss Cable Using PE-P142LL Coax, RoHS

Image Views:  SMA Male to TNC Male Right Angle Low Loss Cable Using PE-P142LL Coax, RoHS high resolution
Zoom


Click for:PE3C0780 Datasheet
Click for:PE3C0780 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P142LL
RF Cable TypePE-P142LL
RF Cable Impedance50


SMA Male to TNC Male Right Angle Low Loss Cable Using PE-P142LL Coax, RoHS

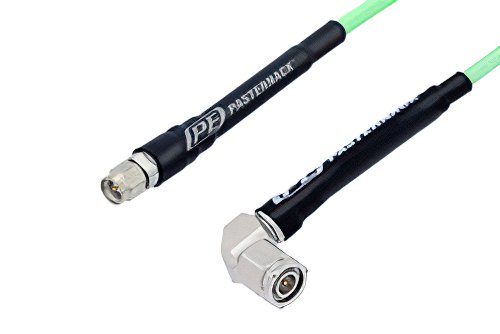

PE3C0780 is a SMA male to TNC male right angle cable using PE-P142LL coax. This Pasternack SMA male to TNC male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm TNC for connector 2. SMA to TNC right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA to male TNC right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C0780 SMA male to TNC male right angle cable assembly is constructed with PE-P142LL coax and the maximum VSWR is 1.5:1.
