TNC Male Right Angle to SMA Male Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male Right Angle to TNC Male Right Angle Cable Using RG223 Coax , LF Solder

Product ID: PE3W03671LF

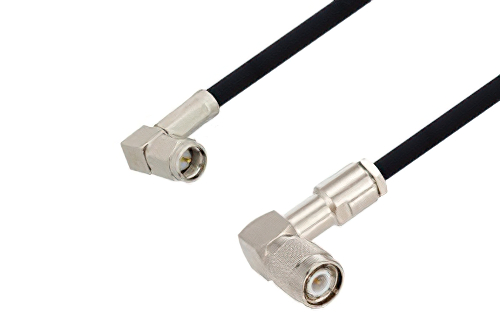

SMA Male Right Angle to TNC Male Right Angle Cable Using RG223 Coax , LF Solder

Image Views:  SMA Male Right Angle to TNC Male Right Angle Cable Using RG223 Coax , LF Solder high resolution
Zoom


Click for:PE3W03671LF Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Click on the below images to access KitBOM product pages:


PE4002RG223/UPE4054KitBOM Datasheet

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG223/U
RF Cable TypeRG223
RF Cable Impedance50 Ohm


SMA Male Right Angle to TNC Male Right Angle Cable Using RG223 Coax, LF Solder, RoHS

PE3W03671LF is a SMA male right angle to TNC male right angle cable using RG223 coax. This Pasternack SMA male right angle to TNC male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm TNC for connector 2. SMA right angle to TNC right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to male TNC right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W03671LF SMA male right angle to TNC male right angle cable assembly is constructed with RG223 coax.
