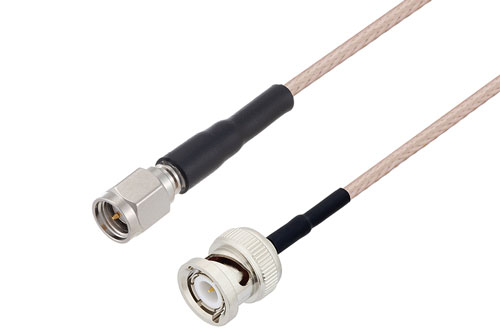

Radio frequency assembly SMA male to BNC male cable using RG316 coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMA male to BNC male cable using RG316 coax with heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to BNC cable assembly orders will the ship same business day as well.
Pasternack RF coax cable assembly is built with a SMA cable connection on one end and a BNC cable connection on the other. Our a SMA to a BNC cable assembly has male gender on end 1 and male on end 2. PE3W01705/HS can also be known as a SMA plug to BNC plug cable assembly and will be shipped the same day as it is purchased. This RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
Our PE3W01705/HS RF cable has a FEP jacket of 0.098-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 125 degrees C. The flexible RF cable has a between series connection.
SMA plug to BNC plug cable assembly PE3W01705/HS is built with RG316 which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to BNC cable connectors and has a 50 Ohm impedance, and is single shielded. One connector features the crimp/solder attachment method and a brass body with nickel plating, while the other has the crimp/crimp attachment method and brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W01705/HS can also be used in the other direction and will be BNC male to SMA male cable assembly if the opposite connectivity is required.
SMA plug to BNC plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to BNC cable assembly for quick shipment worldwide. Variations of SMA and BNC cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to BNC RF cable assembly as per your requirements.
