SMB Plug Right Angle to SMB Plug Cable Assemblies

Check out our new RF calculators & conversion tools...

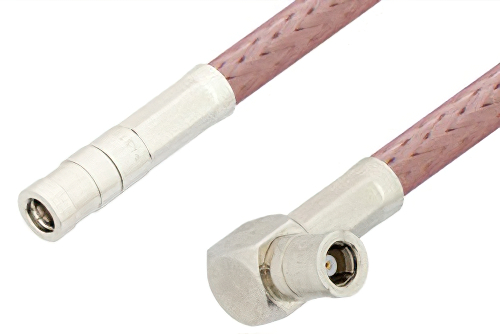

SMB Plug to SMB Plug Right Angle Cable Using RG142 Coax

Product ID: PE33668
SMB Plug to SMB Plug Right Angle Cable Using RG142 Coax

Image Views:  SMB Plug to SMB Plug Right Angle Cable Using RG142 Coax high resolution
Zoom


Click for:PE33668 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMB
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG142B/U
RF Cable TypeRG142
RF Cable Impedance50


SMB Plug to SMB Plug Right Angle Cable Using RG142 Coax

PE33668 is a SMB plug to SMB plug right angle cable using RG142 coax. This Pasternack SMB plug to SMB plug right angle cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SMB for connector 2. SMB to SMB right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMB to plug SMB right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE33668 SMB plug to SMB plug right angle cable assembly is constructed with RG142 coax.
