SMB Plug Right Angle to SSMB Plug Cable Using RG174 Coax

Product ID: PE3W04513

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SSMB
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4052RG174A/UPE4017KitBOM Datasheet

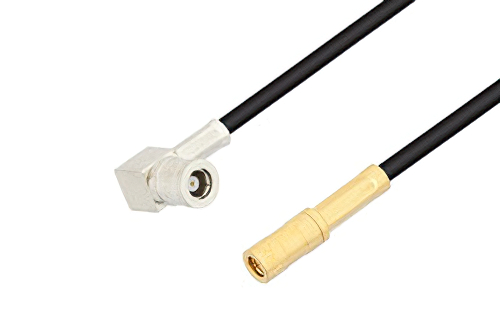

SMB Plug Right Angle to SSMB Plug Cable Using RG174 Coax

PE3W04513 is a SMB plug right angle to SSMB plug cable using RG174 coax. This Pasternack SMB plug right angle to SSMB plug cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SSMB for connector 2. SMB right angle to SSMB coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMB right angle to plug SSMB cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W04513 SMB plug right angle to SSMB plug cable assembly is constructed with RG174 coax.
