SMC Tee Adapters

Check out our new RF calculators & conversion tools...

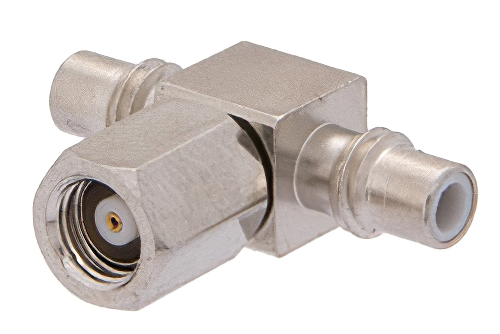

SMC Tee Adapter Jack-Plug-Jack

Product ID: PE9242
SMC Tee Adapter Jack-Plug-Jack

Image Views:  SMC Tee Adapter Jack-Plug-Jack high resolution
Zoom


Click for:PE9242 Datasheet
Click for:PE9242 RoHS Cert
Click for:PE9242 REACH Cert
Available Quantity: 2,060
Pricing Table
QUANTITYPRICE
1-24$42.50
25-49$40.38
50-99$38.25
100-249$36.55
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMC
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Connector Series 3SMC
Connector Gender 3Jack
Frequency, MinDC
Frequency, Max100 MHz
Adapter Body StyleTee
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


SMC Tee Adapter Jack-Plug-Jack

SMC adapter PE9242 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMC to SMC adapter is a in-series coaxial adapter design. This 50 Ohm SMC adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 100 MHz.

SMC jack to SMC plug adapter is one of the many RF components that ship same day as they are ordered. PE9242 jack SMC to plug SMC adapter has a tee body. This Pasternack tee SMC adapter is also known as a SMC T connector.

Our jack SMC to plug SMC adapter PE9242 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMC to SMC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
