SMC Plug to 10-32 Male Right Angle Cable Using RG196 Coax
Product ID:
PE3W00597
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Connector Series 1 | SMC |
| Connector Gender 1 | Plug |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Straight |
| Connector Mount Method 1 | None |
| Connector Impedance 1 | 50 Ohm |
| Connector Series 2 | 10-32 |
| Connector Gender 2 | Male |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Right Angle |
| Connector Mount Method 2 | None |
| Connector Impedance 2 | 50 Ohm |
| RF Cable Part Number | RG196A/U |
| RF Cable Type | RG196 |
| RF Cable Impedance | 50 Ohm |
Description
Click on the below images to access KitBOM product pages:
 |  |  |  |
|---|
| PE4074 | RG196A/U | PE44356 | KitBOM Datasheet |
|---|
SMC Plug to 10-32 Male Right Angle Cable Using RG1

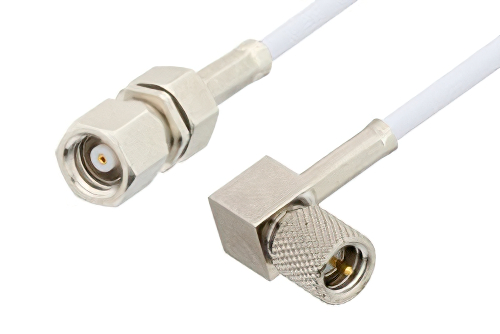

PE3W00597 is a SMC plug to 10-32 male right angle cable using RG196 coax. This Pasternack SMC plug to 10-32 male right angle cable assembly uses a 50 Ohm SMC for connector 1 and a 50 Ohm 10-32 for connector 2. SMC to 10-32 right angle coaxial cable assembly uses 90 degree right angle coax cable connector.
Our plug SMC to male 10-32 right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W00597 SMC plug to 10-32 male right angle cable assembly is constructed with RG196 coax.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
