SMC Plug to SMC Jack Bulkhead Cable Using RG316-DS Coax, RoHS

Product ID: PE34511LF
SMC Plug to SMC Jack Bulkhead Cable Using RG316-DS Coax, RoHS

Image Views:  SMC Plug to SMC Jack Bulkhead Cable Using RG316-DS Coax, RoHS high resolution
Zoom


Click for:PE34511LF Datasheet
Click for:PE34511LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMC
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMC
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50

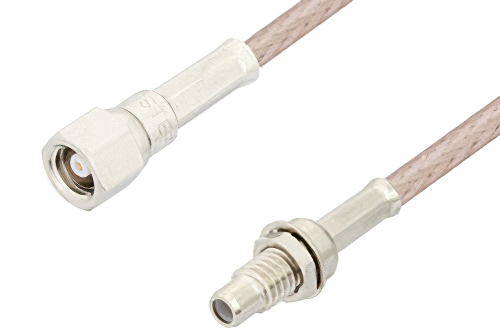

SMC Plug to SMC Jack Bulkhead Cable Using RG316-DS Coax, RoHS

PE34511LF is a SMC plug to SMC jack bulkhead cable using RG316-DS coax. This Pasternack SMC plug to SMC jack bulkhead cable assembly uses a 50 Ohm SMC for connector 1 and a 50 Ohm SMC for connector 2.

Our plug SMC to jack SMC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34511LF SMC plug to SMC jack bulkhead cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
