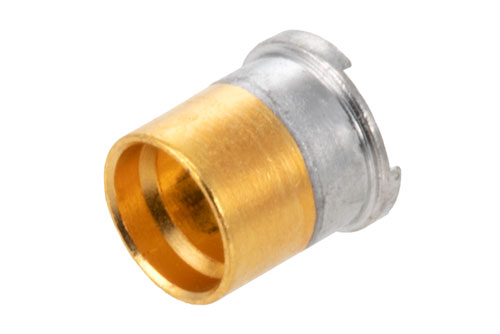

SMP Male Smooth Bore Connector Solder Attachment Surface Mount PCB, Pre-Tinned Contacts

Name: SMP Male Smooth Bore Connector Solder Attachment Surface Mount PCB, Pre-Tinned Contacts
Brand: Pasternack
SKU: PE44947
Availability: InStock

Product ID: PE44947

Pricing

Quantity	Price
1-24	$93.99
25-49	$89.29
50-99	$84.59
100-249	$80.83
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 676

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	SMP
Connector Gender	Male
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	18 GHz
Interface Type 1	Surface Mount

Description

SMP Male Smooth Bore Connector Solder Attachment Surface Mount PCB, Pre-Tinned Contacts

PE44947 SMP male pcb smooth bore connector has an interface type of surface mount and a 50 Ohm impedance. Pasternack SMP male connector uses shield/contact solder as an attachment method. Our male SMP pcb connector provides a minimum frequency of DC and a maximum frequency of 18 GHz.

The Pasternack SMP male pcb smooth bore connector has a glass dielectric type and a VSWR of 1.25. The Pasternack SMP pcb connector has a kovar body with gold plating. Our PE44947 SMP connector uses kovar contact. This SMP male pcb smooth bore RF connector is RoHS and REACH compliant.

This Pasternack male SMP connector will ship the same day as purchased. Our SMP male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMP connector cable assemblies that will ship the same day as well.
