SMP Male Straight Connectors

Check out our new RF calculators & conversion tools...

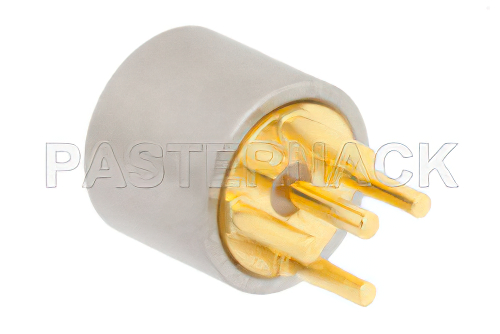

SMP Male Full Detent Connector Solder Attachment Thru Hole PCB, Round Body, Up To 8 GHz

Product ID: PE44775
SMP Male Full Detent Connector Solder Attachment Thru Hole PCB, Round Body, Up To 8 GHz


Image Views:  SMP Male Full Detent Connector Solder Attachment Thru Hole PCB, Round Body, Up To 8 GHz high resolution
Zoomalternate image
View 2


Click for:PE44775 Datasheet
Click for:PE44775 RoHS Cert
Click for:PE44775 REACH Cert
Available Quantity: 38
Pricing Table
QUANTITYPRICE
1-24$14.73
25-49$13.70
50-99$12.67
100-249$11.78
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMP
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency8 GHz


SMP Male Full Detent Connector Solder Attachment Thru Hole PCB, Round Body, Up To 8 GHz

PE44775 SMP male pcb full detent connector has an interface type of thru hole and a 50 Ohm impedance. Pasternack SMP male connector uses shield/contact solder as an attachment method. Our male SMP pcb connector provides a minimum frequency of DC and a maximum frequency of 8 GHz.

The Pasternack SMP male pcb full detent connector has a ptfe dielectric type and a VSWR of 1.1. The Pasternack SMP pcb connector has a passivated stainless steel body. Our PE44775 SMP connector uses beryllium copper contact. This SMP male pcb full detent RF connector is RoHS and REACH compliant.

This Pasternack male SMP connector will ship the same day as purchased. Our SMP male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMP connector cable assemblies that will ship the same day as well.
