SSMB Plug to SSMB Plug Cable Assemblies

Check out our new RF calculators & conversion tools...

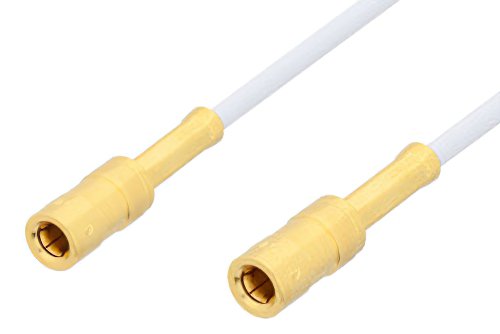

SSMB Plug to SSMB Plug Cable Using RG196 Coax, RoHS

Product ID: PE3122LF
SSMB Plug to SSMB Plug Cable Using RG196 Coax, RoHS

Image Views:  SSMB Plug to SSMB Plug Cable Using RG196 Coax, RoHS high resolution
Zoom


Click for:PE3122LF Datasheet
Click for:PE3122LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SSMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SSMB
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG196A/U
RF Cable TypeRG196
RF Cable Impedance50


SSMB Plug to SSMB Plug Cable Using RG196 Coax, RoHS

PE3122LF is a SSMB plug to SSMB plug cable using RG196 coax. This Pasternack SSMB plug to SSMB plug cable assembly uses a 50 Ohm SSMB for connector 1 and a 50 Ohm SSMB for connector 2.

Our plug SSMB to plug SSMB cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3122LF SSMB plug to SSMB plug cable assembly is constructed with RG196 coax.
