WR112 7.05 GHz to 10.00 GHz Standard Gain Horns

Check out our new RF calculators & conversion tools...

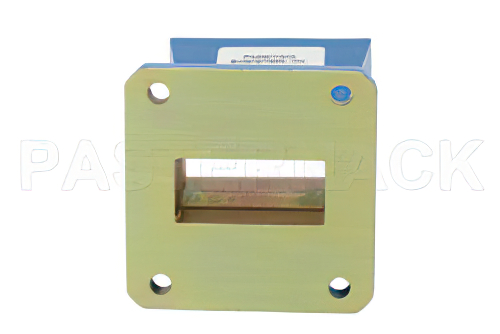

WR-112 Waveguide Standard Gain Horn Antenna Operating From 7.05 GHz to 10 GHz With a Nominal 10 dBi Gain With Square Cover Flange

Product ID: PE9858-10
WR-112 Waveguide Standard Gain Horn Antenna Operating From 7.05 GHz to 10 GHz With a Nominal 10 dBi Gain With Square Cover Flange


Image Views:  WR-112 Waveguide Standard Gain Horn Antenna Operating From 7.05 GHz to 10 GHz With a Nominal 10 dBi Gain With Square Cover Flange high resolution
Zoomalternate image
View 2


Click for:PE9858-10 Datasheet
Click for:PE9858-10 RoHS Cert
Available Quantity: 5
Pricing Table
QUANTITYPRICE
1-4$809.17
5-9$752.53
10-24$695.89
25-49$647.34
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-112
Gain Min10
Flange SizeSquare Cover
Frequency, Min7.05 GHz
Frequency, Max10 GHz
Beam Width V55.2
Beam Width H56.8


WR-112 Standard Gain Horn Antenna Operating From 7.05 GHz to 10 GHz With a Nominal 10 dB Gain With Square Cover Flange

PE9858-10 WR-112 standard gain horn antenna is also known as a waveguide horn. This WR-112 standard gain horn antenna has a 10 dB nominal gain and a square cover flange. Our 10 dB WR-112 horn antenna has a minimum frequency of 7.05 GHz and a maximum frequency of 10 GHz.

WR-112 standard gain horn waveguide antenna PE9858-10 has a vertical beam width of 55.2 and horizontal of 56.8 degrees at 3 dB. This WR-112 standard gain horn antenna with 10 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-112 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
